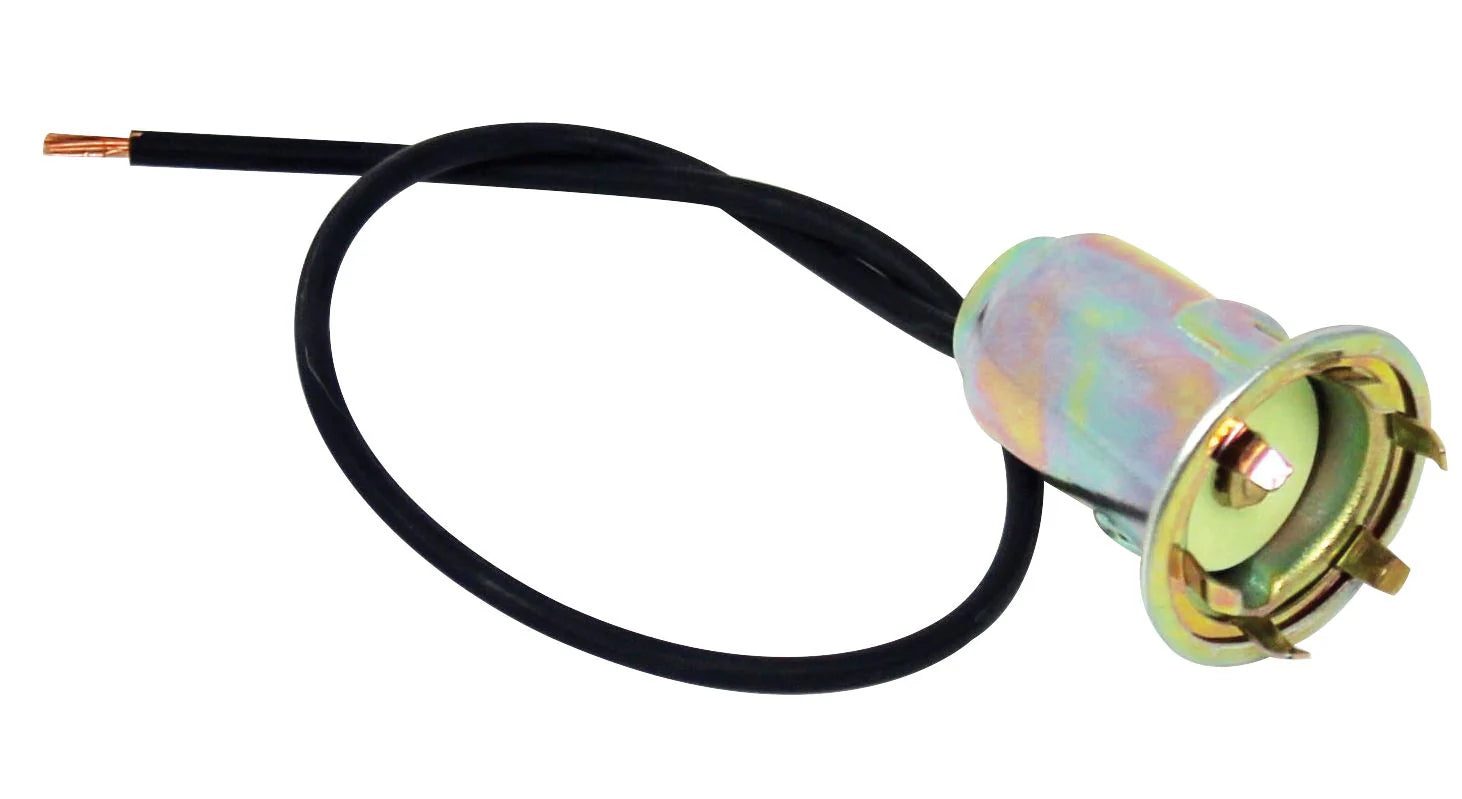

The American Autowire Universal Single-Contact Bulb Socket (Part # 500125) is a heavy-duty, versatile automotive wiring solution designed for custom assemblies, classic car restorations, and specialized gauge cluster repairs. Engineered to provide a clean, secure mechanical fit, this component is an absolute staple for customizers plumbing custom tail lights, parking lights, backup lamps, or high-output interior courtesy fixtures.
Robust Mechanical & Electrical Performance
Reliable Ground-Dependent Loop: Because this is a single-contact socket, it delivers positive 12V DC power through the bottom center spring terminal. The return circuit relies entirely on the socket casing making solid contact with the vehicle's metal substrate.
3/4-Inch Snap-Fit Retention: Engineered with resilient, outward-sprung metal locking fingers that compress as you slide the body into a standard 3/4-inch (0.750") round panel cutout, then snap outward to lock the socket firmly into place.
Industry Standard 1156 Interface: Built to house standard single-filament bayonet bulbs like the ubiquitous 1156, 93, or equivalent modern plug-and-play LED upgrades. The index pins lock into place with a simple push-and-twist motion.
Technical Specification Matrix
Mechanical/Electrical Feature
Technical Specification
Manufacturer
American Autowire
Part Number
500125
Socket Base Pattern
BA15s (Single Contact, Straight Index Pins)
Compatible Bulb Type
Standard 1156 Incandescent or LED Equivalents
Mounting Style
Spring-Tension Snap-In
Panel Hole Cutout Size
3/4" (0.750 Inches)
Grounding Dependency
Direct-to-Chassis Metal Ground Required
🛠️ Restorer's Installation Note: If you are snapping this socket into a non-conductive fiberglass body, a painted panel, or a heavily undercoated trunk sheet metal surface, you must run a dedicated ground wire from the outer metal casing of the socket to a bare metal chassis point. Without a clean ground path, the bulb filament will fail to illuminate.
