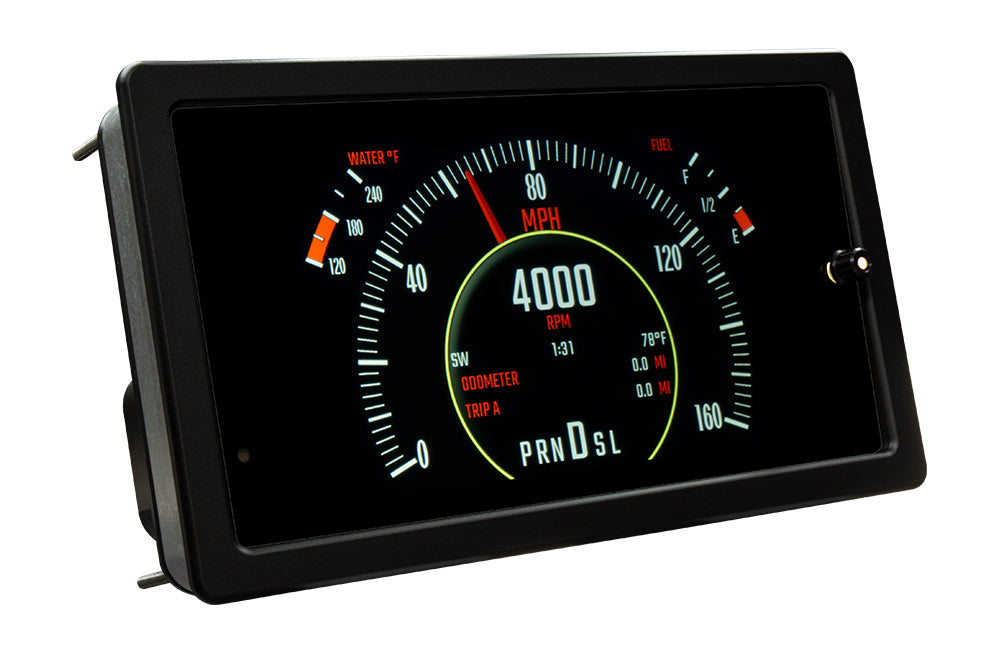

Introducing the GRFX-3200, the latest addition to the Universal Competition Series from Dakota Digital. This advanced digital gauge cluster features a brilliant 7-inch TFT screen housed within a slim, matte black aluminum bezel, making it an ideal choice for custom installations. Whether you're using a BIM EFI interface for aftermarket or OEM ECUs, or simply looking to give your old-school hot rod a modern dash, the GRFX-3200 provides a wealth of information in a fully customizable format.
Unrivaled Customization
The Grafix Series allows you to personalize nearly every aspect of the instrument system to match your style. You can select from a variety of graphic themes, and each element can be further customized with unique display colors and warning modes. Each gauge location can be configured with an Analog, Digital, or Bar-graph style readout. Displays can show readings singly, grouped in pairs for double the visible data, or completely reconfigured to show a different readout entirely.
Comprehensive Gauge Readouts
The GRFX-3200 provides an extensive range of gauge readouts with both simulated needle sweeps and digital numeric displays.
-
Speedometer: Simulated needle range up to 200 MPH (320 km/h) with a digital numeric range up to 255 MPH (410 km/h).
-
Tachometer: Simulated needle and digital numeric range up to 16,000 RPM.
-
Oil Pressure: Simulated needle range up to 150 psi. Digital numeric range up to 300 psi with an optional 0-300 psi sensor.
-
Water Temperature: Simulated needle range up to 260°F (130°C) with a digital numeric range up to 300°F (130°C).
-
Fuel Level: Simulated needle range shows E, 1/4, 1/2, 3/4, F. Digital numeric range from 0-100%.
-
Voltmeter: Simulated needle range up to 18 VDC with a digital numeric range from 0-18 VDC.
-
Clock: Features a 12-hour analog and digital clock movement.
Digital Message Centers & Performance Meters
Access a wealth of information through the high-definition TFT message center.
-
Standard Displays: Includes a Million Mile Odometer (one-time user settable), Dual (A/B) Trip Meter, Digital Clock, Estimated Range/Miles to Empty, and an Hour Meter.
-
Performance Meters: Track your vehicle’s performance with a 0-60 MPH (0-100 km/h) timer, 1/4 and 1/8 mile times, 1/4 and 1/8 mile trap speed, high-speed recall, high-RPM recall, and an integrated G-Force meter.
Built-in Indicators
The cluster integrates a wide array of built-in indicators to keep you informed. Each analog gauge sweep also contains a dedicated indicator light for quick notice of a warning condition.
-
Standard Indicators: Turn Signals (Left/Right), High Beam, Check Engine, Parking Brake, and Cruise Control.
-
Vehicle-Specific Indicators: Gear Position (optional sensor required), 4x4, and Wait to Start (when equipped on your vehicle).
-
Auxiliary Indicators: Two auxiliary input indicators with user-programmable labels are available.
Note: Not all OEM indicator functions will be replaced. You can repurpose any unused indicators to suit your application.
Lighting Technology
Personalize your dash with an array of lighting options and features.
-
Customizable Colors: Over 30 user-selectable color options allow you to independently change the needle color, sweep color, and digital display color.
-
Dynamic Brightness Control: An internal photo sensor automatically adjusts gauge brightness based on ambient light. It features an Auto High Contrast mode for high sunlight situations and an Auto Night Mode for low-light or night driving. Manual control is also possible with an optional dimming knob.
-
Themes & Aesthetics: Choose from four factory preset themes (Standard, Performance, Modern, and Era) and 12 color schemes for a beautiful-looking system in a hurry. You can also take full control and customize all color zones yourself.
-
Full RGB Backlighting: The system features full RGB backlighting, allowing you to create the specific color you want, including unique daytime and nighttime themes.
User Control & Calibration
-
Pushbutton Control: The system is programmed and operated by a simple two-sided rocker switch included with each package. This switch provides quick and consistent access to all functions, whether in driving mode or navigating the setup menu.
-
Mobile App Integration: The GRFX system can be completely configured through the free mobile app, available for Android and Apple devices. The app allows for quick and convenient menu navigation, real-time gauge readouts for diagnostic use, or a secondary display.
-
Easy Calibration: Calibration settings are handled through the pushbutton switch or the mobile app. Speedometer and fuel level calibration are a simple process that can be completed with a few taps of a button and a short test drive.
Included Sensors & Components
-
Water Temperature Sensor: 1/8" NPT, ground isolated sensor with a 10 ft harness.
-
Oil Pressure Sensor: 1/8" NPT solid-state sensor with a 10 ft harness.
-
Speed Sensor: A cable-driven speed sensor/generator replaces GM-style speedometer cables and comes with a 10 ft harness. For applications requiring additional clearance, a relocation kit is sold separately.
-
Bushings: Each kit includes bushings for 1/8", 1/4", 3/8", and 1/2" NPT threads, along with 12mm and 16mm x 1.5 threads.
Specifications:
Completely engineered and produced in Sioux Falls, South Dakota, all Dakota Digital instrument systems carry a Limited Lifetime Warranty.
