The Universal Master Plus Floor Pan Kit (#873) represents the highest level of structural reinforcement in our universal floor series. This comprehensive package is specifically designed for restorations involving severely rusted bodies or high-performance applications, ensuring you build the strongest possible foundation from the firewall rearward.
Key Features and Construction:
-
Heavy-Duty 18 Gauge Steel Base: All primary floor components are constructed from durable heavy 18 gauge steel and manufactured in the USA.
-
Superior Stamped Ribs: The four main floor pans feature quality strengthening ribs stamped into the metal, ensuring superior rigidity and structural performance over conventional shallow-rolled materials.
-
Modern Drivetrain Clearance: Includes an extra clearance transmission cover and driveshaft tunnel (high formed, die-stamped) to easily accommodate modern automatic transmissions.
-
Structural Completeness (Master Kit): This kit includes every component needed to attach the floor to the body and frame:
-
(4) Heavy Duty 16 Gauge Steel Floor Braces: Provides robust support directly underneath the floor pans.
-
(4) 4" x 4" x 48" Floor Angles: Included to improve the strength of the floor-to-body connection and facilitate attachment to deteriorated frame areas.
-
(2) Toe Boards: Included to properly connect the front of the floor pans to the firewall.
-
Comprehensive Coverage: Includes four large floor pans (29-1/2″ x 24″) to repair a large area of floor at a great price.

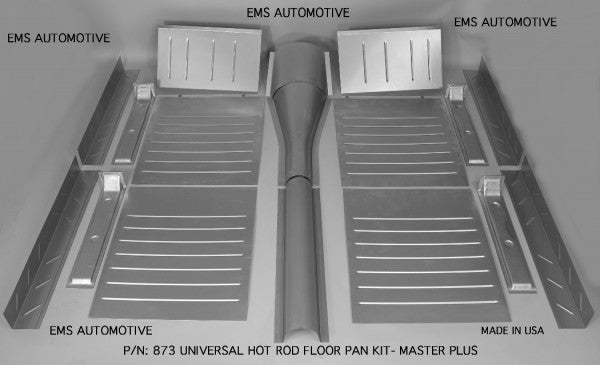

What's Included in the Kit:
-
(4) Floor Pans (29-1/2″ x 24″) with stamped strengthening ribs
-
(4) 4" x 4" x 48" Structural Floor Angles
-
(4) Heavy Duty Stamped 16 Gauge Steel Floor Braces
-
(2) Toe Boards (Firewall Connectors)
-
(1) Extra Clearance Die-Stamped Transmission Cover
-
(1) Extra Clearance Die-Stamped Driveshaft Tunnel
This "Master Plus Kit" provides the materials and specialized reinforcement needed for a professional, uncompromised floor restoration.
