Description

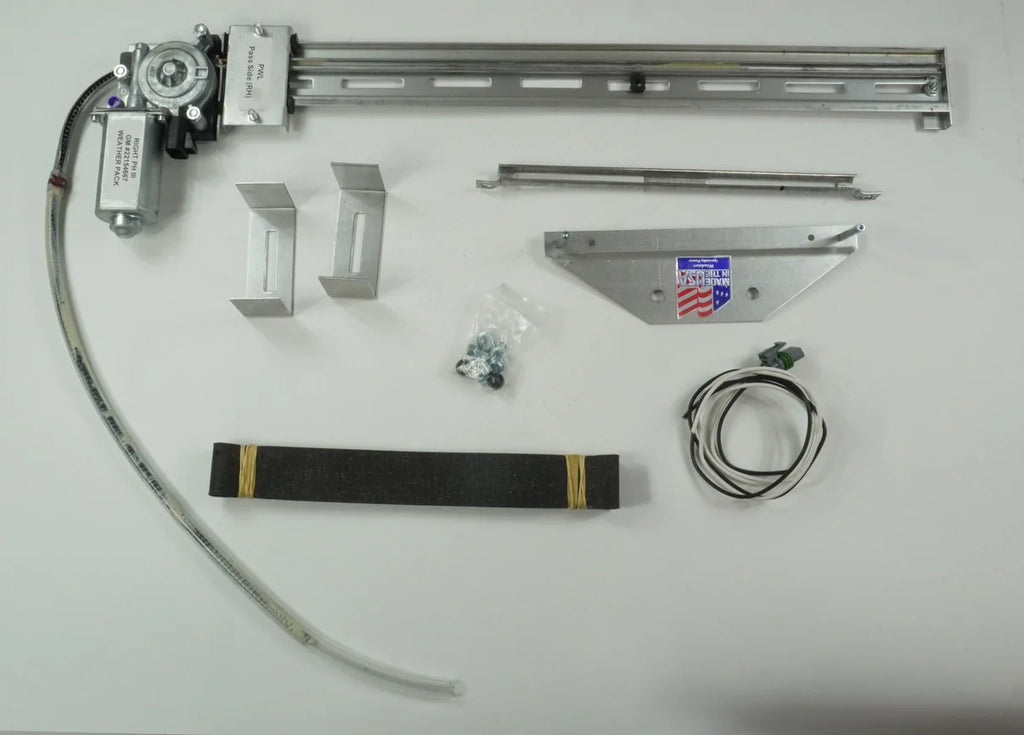

The Specialty Power Windows (SPW) Universal One Window Power Window Kit (Power Wonder-Lift) is a cable-driven single-window conversion kit designed to replace a manual crank handle and mechanical regulator in specialized automotive applications. Engineered with a compact vertical clearance requirement of just 8-1/2 inches, this system is tailored for single-door replacements, rear tailgate glass conversions, custom divider partitions, or step-by-step custom interior builds using SPW's self-adjusting floating coined and slotted tube architecture.
System Architecture & Engineering Highlights
Self-Adjusting Floating Tube Architecture: Utilizes SPW's patented floating coined and slotted metal guide tube design. As the window travels, the drive assembly dynamically self-aligns to absorb irregularities in door curvature, glass angle, and track channels, eliminating binding and excessive motor strain.
Low-Clearance Cavity Profile: Requires only 8-1/2" of clearance between the beltline (window sill) and the bottom of the door or tailgate cavity, making it well-suited for shallow doors, chopped tops, and tight custom fabrications.
Extended Vertical Travel: Delivers up to 22 inches of vertical travel, accommodating standard side windows, tall commercial/truck glass, and long-travel rear tailgate drops.
OEM-Style High-Torque Motor: Driven by a modern 12V high-torque electric motor built to reliably lift and lower heavy laminated or tempered safety glass.
Complete Single-Window Electrical Package: Supplied with a pre-wired harness featuring quick-disconnect motor plugs, a GM-style chrome switch, and a flexible braided stainless steel conduit to protect power wiring across the door or tailgate hinge gap.
Technical Specification Matrix
Feature / Metric
Technical Specification Detail
Manufacturer
Specialty Power Windows (SPW)
System Style
Universal Cable-Driven Single-Window Power Wonder-Lift Kit
Clearance Requirement
Minimum 8-1/2" between bottom of glass (down position) and cavity bottom
Maximum Glass Travel
Up to 22 Inches of Vertical Travel
Motor Style
(1) OEM-Style High-Torque 12V Electric Motor
Guide Tube Construction
Coined and Slotted Floating Steel Metal Tube (Self-Aligning)
Switch Included
(1) GM-Style Chrome Single Window Switch with Bezel
Jamb / Hinge Protection
(1) Flexible Braided Stainless Steel Wire Conduit Included
Vehicle Application
Universal Fitment (Driver/Passenger Door, Tailgate, or Partition)
Hardware & Documentation: Mounting Hardware Kit, Written Installation Guide, and Instructional Video
Installation & System Notes
Glass Bedding & Alignment: Clean the lower edge of the glass thoroughly before securing it into the supplied lower glass channel using auto glass setting tape or high-strength urethane adhesive. Confirm the glass sits level in the channel before curing.
Stainless Conduit Installation: When running wiring across a swinging hinge (door) or pivoting joint (tailgate), stagger the drill holes between the jamb surfaces to allow the flexible conduit to flex into a gentle "S-curve" without pinching internal wiring.
Run Channel Preparation: Verify that side run channels (felt or rubber tracks) are clean, properly aligned, and lubricated with dry silicone spray to minimize mechanical friction.
Pre-Upholstery Function Test: Test-cycle the window travel using a 12V battery source to verify upper and lower stops and check internal clearance prior to final upholstery and trim panel reinstallation.
