The Porter Mufflers Shorty Offset 20" Stainless Steel Packed Muffler is engineered specifically to replace traditional flat, oval "turbo" mufflers on 1960s and 1970s muscle cars without altering existing bent exhaust pipe routing. Featuring a compact 14" case length and an angled offset inlet/outlet design, it allows builders to fit a round, steel-packed performance muffler directly into original oval muffler floor-pan pockets.
Product Overview & Offset Geometry Options
When replacing factory-style oval turbo mufflers, straight glasspacks or straight round mufflers often force builders to custom-bend new exhaust pipes to align with the offset floor pan cutouts.

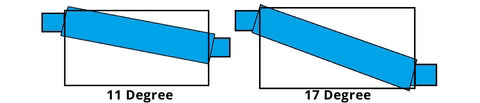

Porter solves this by offering an angled offset internal core design available in two specific angles:
-
11-Degree Offset: Ideal for slight offset angles and shallow pipe offsets commonly found on early muscle cars and classic truck floor pans.
-
17-Degree Offset: Designed for steeper offset angles where the exhaust pipe must dog-leg significantly into the muffler casing to clear frame rails or driveshaft tunnels.
Internal Acoustic Engineering & Material Construction
Standard glasspacks use fiberglass packing that burns out over time, leading to harsh interior cabin drone. Porter mufflers feature an internal gapped steel spring core packed with high-density stainless steel wool. Sound waves dissipate into the permanent steel packing without restricting exhaust gas velocity, delivering a deep muscle car rumble under load and a mellow tone at cruising speeds.
Porter offers the Shorty Offset in two material options:
-
Aircraft-Grade 304 Stainless Steel: Hand-crafted using heavy 16-gauge, highly polished 304 stainless steel tubing for maximum corrosion resistance and a mirror finish.
-
Ceramic-Painted Steel: Hand-crafted using heavy 16-gauge aluminized steel tubing finished in Porter's signature high-temp ceramic coating.
Key Features & Design Highlights
-
Direct Turbo Muffler Replacement: Angled offset allows round mufflers to replace flat oval turbo mufflers using existing tailpipe and header tube routing.
-
11° & 17° Offset Angles: Available in two precise core angles to match factory and custom offset exhaust plumbing.
-
Compact 14" Case Length: Fits tight underbody floor-pan pockets and short wheelbase chassis (20" overall length).
-
100% Stainless Steel Wool Packing: Steel packing will not blow out, burn down, or degrade over time.
-
Anti-Drone Steel Spring Core: Internal gapped steel spring core dissipates harsh low-frequency resonance.
-
Heavy-Duty 16-Gauge Tubing: Resists road debris, stone chips, and severe exhaust heat cycles.
-
American-Made Quality: Hand-crafted in the USA using U.S.-sourced steel products.
Technical Specification Matrix
| Feature / Metric |
Technical Specification Detail |
| Manufacturer |
Porter Mufflers |
| Product Type |
Shorty Offset Round Exhaust Muffler |
| Overall Length |
20.00 Inches |
| Body / Case Length |
14.00 Inches |
| Casing Diameter Options |
3.50" or 4.00" Outer Diameter Round Body |
| Offset Angle Options |
11 Degrees or 17 Degrees Offset |
| Inlet / Outlet Diameters |
2.00", 2.25", 2.50", and 3.00" Slip-Fit |
| Material Options |
16-Gauge Polished 304 Stainless Steel OR Ceramic-Painted Steel |
| Internal Packing |
Gapped Steel Spring Core with High-Density Stainless Steel Wool |
| Country of Manufacture |
Handmade in the USA |
Installation & Fitting Recommendations
-
Determining Offset Angle: Measure the angle offset of your existing turbo muffler inlet/outlet relative to the straight tailpipe section to select either the 11-degree or 17-degree version.
-
Full Seam Welding: Joints are sized to slip over standard exhaust tubing. Fully seam-welding the joints is strongly recommended over band clamps to ensure an airtight, rattle-free seal.
