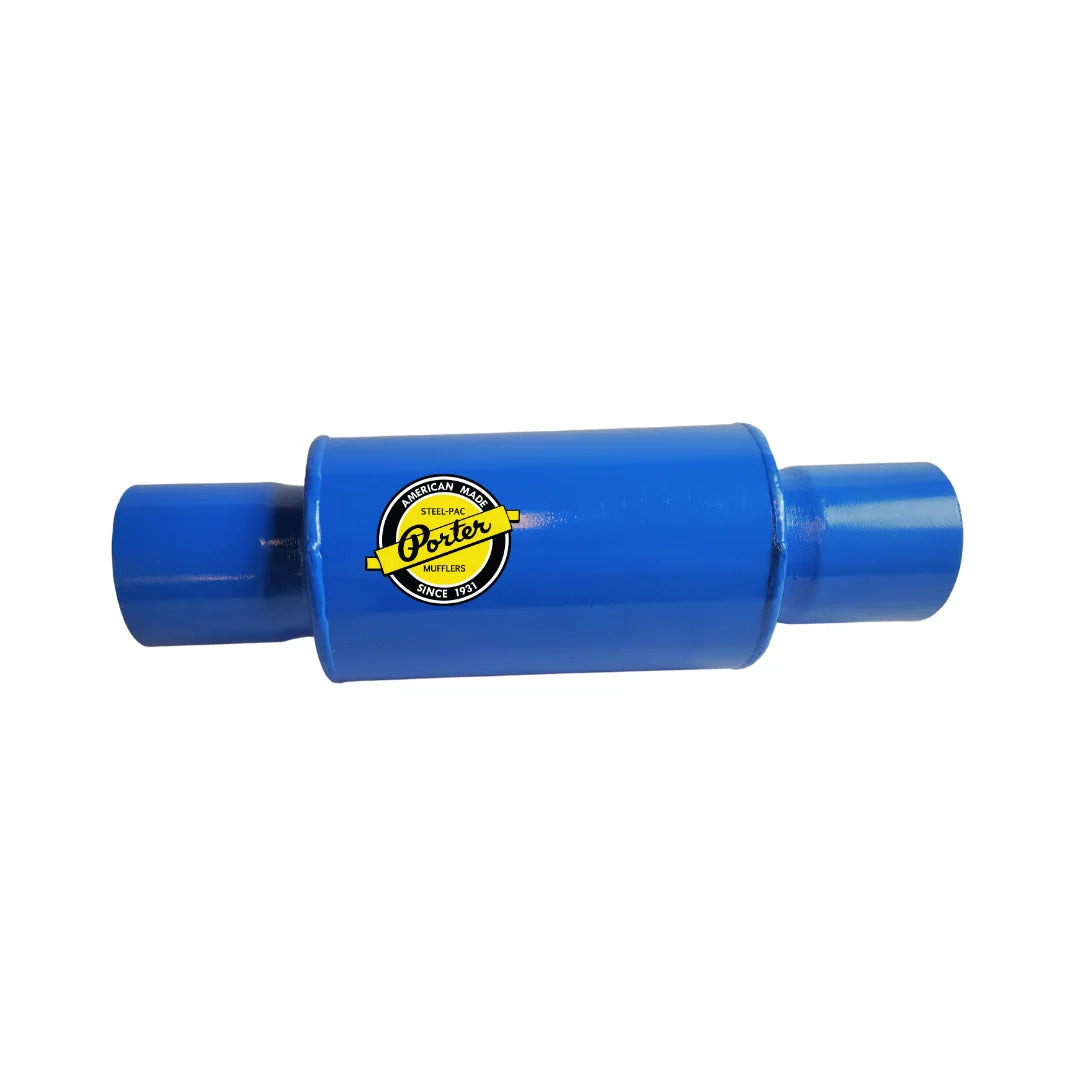

The Porter Muffler 13" Freedom Flow Exhaust Resonator is a heavy-duty, compact exhaust resonator engineered for vehicle owners who want the unrestricted volume and aggression of a straight-pipe exhaust system while eliminating harsh, high-frequency "tinny" rasps and drone. Built using the same steel-packed core design as Porter's classic mufflers, it allows the engine's true exhaust note to resonate clearly without choking exhaust gas velocity.
Product Overview & Internal Acoustic Engineering
Straight-pipe exhaust systems frequently suffer from irritating high-pitch metal harmonics, rasp, and severe interior cabin drone. Traditional glass-packed resonators quickly burn out their internal fiberglass under intense exhaust heat, leading to deteriorated sound quality.

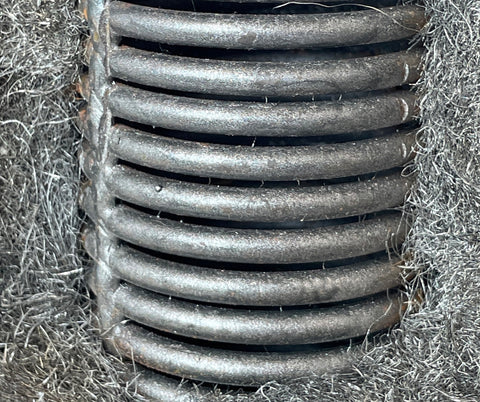

The Freedom Flow resonator addresses this by pairing an internal steel spiral core with blow-proof, high-density stainless steel wool packing. As exhaust gases pass through the central chamber, high-frequency rasp and harsh acoustic spikes are absorbed by the steel packing, leaving a clean, deep, un-muffled V8 or high-output engine tone without restricting flow.
Heavy-Duty Structural Construction
Engineered for extreme exhaust temperatures and high-horsepower applications, the Freedom Flow resonator utilizes an ultra-rugged structural design:
-

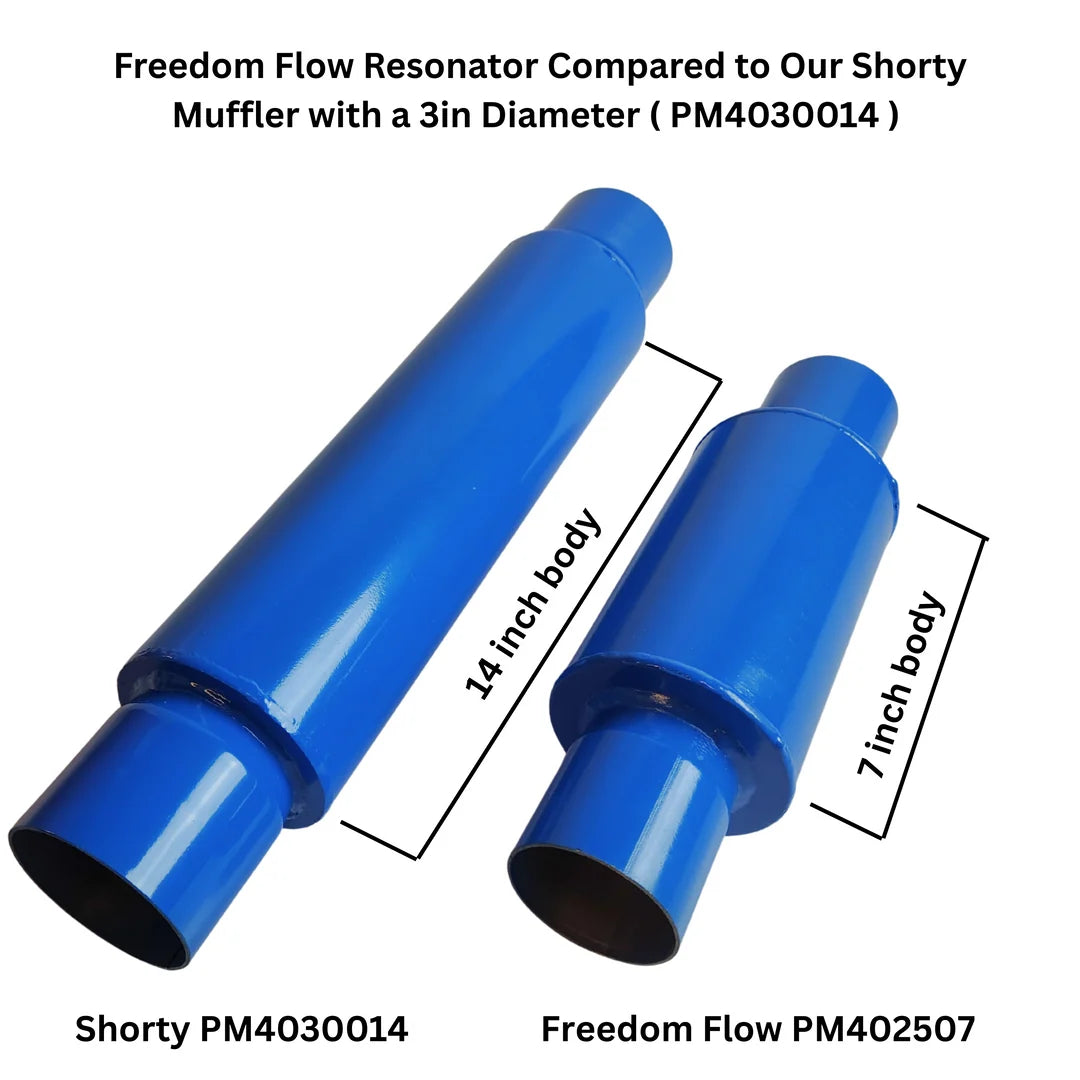

16-Gauge Seamless Body: Features a heavy-duty 7.00" outer diameter seamless steel outer casing to withstand road impacts and thermal stress.
-
12-Gauge Welded End Caps: Extra-thick 12-gauge steel end caps are fully welded to the casing to prevent blown end seams or leaks under severe exhaust backpressure backfires.
-
Blow-Proof Stainless Steel Packing: Internal steel packing will not degrade, melt, or blow out over time, guaranteeing consistent sound tuning.
Key Features & Design Highlights
-
Straight-Pipe Volume with Clean Tone: Eliminates harsh "tinny" pipe harmonics and rasp while maintaining maximum straight-pipe exhaust volume.
-
100% Blow-Proof Stainless Steel Packing: Will not burn out, dry out, or degrade under extreme exhaust gas temperatures.
-
Ultra-Heavy-Duty Steel Construction: Built with a 16-gauge seamless 7" body and 12-gauge steel end plates.
-
Steel Spiral Core Architecture: Dissipates high-frequency acoustic spikes without restricting exhaust gas velocity or horsepower.
-
Reversible Non-Directional Flow: Symmetrical internal construction allows mounting in either flow direction.
-
American-Made Quality: Hand-crafted in the USA using U.S.-sourced steel products.
Technical Specification Matrix
| Feature / Metric |
Technical Specification Detail |
| Manufacturer |
Porter Mufflers |
| Product Line |
Freedom Flow Exhaust Resonator |
| Overall Length |
13.00 Inches |
| Outer Casing Diameter |
7.00 Inches (Seamless Round Body) |
| Casing Thickness |
Heavy-Duty 16-Gauge Seamless Steel |
| End Cap Thickness |
12-Gauge Welded Steel |
| Internal Construction |
Steel Spiral Core with High-Density Stainless Steel Wool Packing |
| Primary Function |
Eliminates straight-pipe rasp and harmonics without reducing volume |
| Country of Manufacture |
Handmade in the USA |
Installation & System Placement
-
Placement in Exhaust System: For maximum effectiveness at cancelling high-frequency rasp and drone, install the Freedom Flow resonators as close to the header/manifold collectors or mid-pipe crossover (H-pipe/X-pipe) as space allows.
-
Full Seam Welding: Sized for a slip-fit lap joint over standard exhaust tubing. Fully seam-welding the slip joints to the exhaust pipe is strongly recommended over band clamps to ensure a permanent, leak-free seal.
