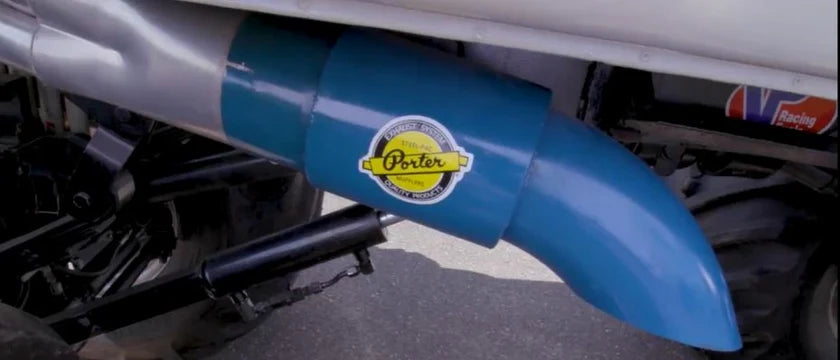

The Porter Muffler 10" Race Exhaust Resonator is an ultra-compact, high-flow exhaust sound-attenuation unit built specifically for high-horsepower engines, 2-into-1 merge collectors, track-dedicated race vehicles, and off-road builds. Engineered to satisfy track sound-limit regulations without sacrificing engine power or exhaust gas velocity, it offers maximum exhaust flow in a minimal footprint.
Note: This component is designed and intended strictly for off-road and closed-course racing applications only.
Product Overview & Race Engineering
High-horsepower engines and open header race setups produce extreme sound pressure levels and harsh high-frequency harmonics. Traditional race mufflers can create restrictive backpressure that robs top-end horsepower, while standard glasspacks quickly burn out under severe track exhaust heat.
The Porter 10" Race Resonator solves this by utilizing an ultra-short 7.00" casing length (10.00" overall length) packed with Porter's signature blow-proof stainless steel wool. Designed to handle high-velocity exhaust pulses from big-block, forced-induction, or large-displacement V8 engines, it tames peak decibels to clear track sound checks while maintaining an uninhibited, straight-through flow path.
Key Features & Design Highlights
-
Ultra-Compact 7" Body Length: 10" overall length fits into tight chassis pockets, transmission tunnels, or directly behind merge collectors on race headers.
-
Zero Horsepower Loss: Straight-through internal core architecture ensures maximum exhaust gas velocity and zero restrictive backpressure.
-
Track Sound Rule Compliance: Reduces harsh peak decibels and high-frequency rasp to satisfy sanctioning-body sound-level limits.
-
Blow-Proof Stainless Steel Packing: Internal stainless steel wool packing will not burn out, degrade, or blow apart under extreme race exhaust temperatures.
-
2-into-1 Collector Compatibility: Sized to fit single-pipe or large-diameter 2-into-1 merge collector exhaust configurations on high-output builds.
-
Heavy-Duty Construction: Built with thick-wall steel to withstand track impacts, exhaust backfires, and high-RPM vibration.
-
Handmade in the USA: Built with U.S.-sourced steel products.
Technical Specification Matrix
| Feature / Metric |
Technical Specification Detail |
| Manufacturer |
Porter Mufflers |
| Product Line |
Race Series Exhaust Resonator |
| Overall Length |
10.00 Inches |
| Body / Case Length |
7.00 Inches |
| Primary Application |
High-Horsepower Engines, Track / Drag Racing, 2-into-1 Merge Systems |
| Legal Status |
Off-Road and Closed-Course Racing Use Only |
| Internal Packing |
High-Density Blow-Proof Stainless Steel Wool |
| Flow Architecture |
High-Flow Straight-Through Core |
| Country of Manufacture |
Handmade in the USA |
Installation & System Placement
-
Placement: Position directly downstream of header collectors or merge Y-pipes to attenuate acoustic spikes at the source.
-
Welded Joint Assembly: Due to the severe vibration and high thermal cycling in racing environments, fully seam-welding the slip-fit joints to the primary exhaust tubing is strongly recommended.
