The Lokar Universal Carburetor Throttle Cable (Hi-Tech Series) is the industry standard for custom hot rods, street rods, and muscle car builds. Engineered with a customizable "U-Cut-to-Fit" outer housing and inner wire, it allows engine builders to tailor the exact length required for a clean, precise linkage hookup between the firewall and carburetor.
Product Overview & Performance
Standard factory throttle cables often bind, fray, or stick when routed to aftermarket carburetors or non-stock firewall locations. Lokar solves this by housing a high-tensile stainless steel inner cable inside a specially extruded PTFE (Teflon) liner. This low-friction sleeve significantly extends cable life, eliminates internal binding under tight bend radiuses, and ensures crisp, responsive throttle return.
The cable assembly features a clever clevis attachment designed without failure-prone cotter pins or set screws. Additionally, custom aluminum ferrules secure the cut ends of the inner wire, eliminating fraying during initial setup or future adjustments.
Housing & Finish Configurations
Lokar offers three distinct outer housing styles paired with color-matched hardware to complement any engine bay theme:
-

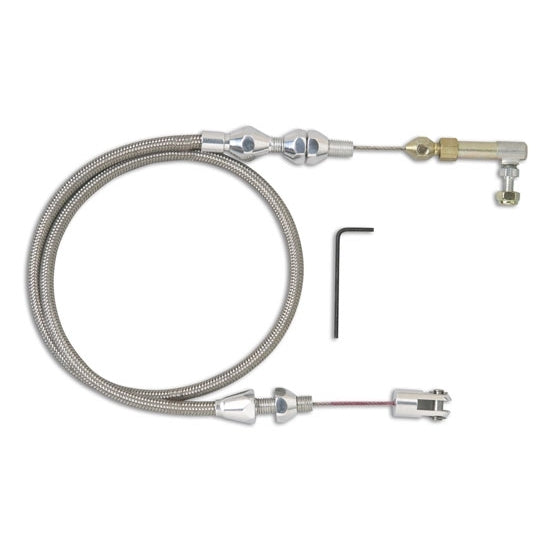

Braided Stainless Steel: Features a classic high-shine stainless braid paired with natural brushed or polished aluminum fittings.
-

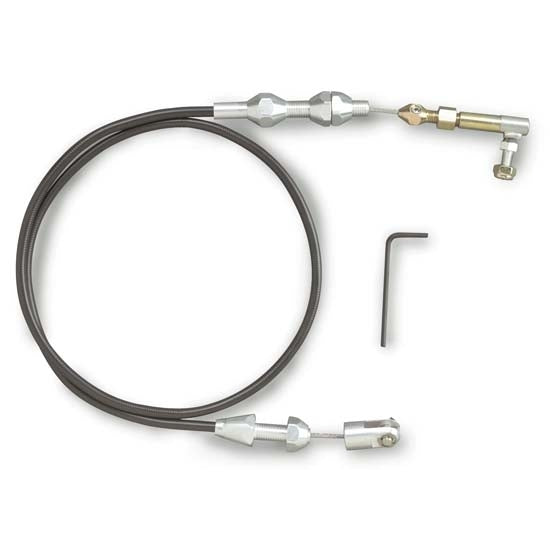

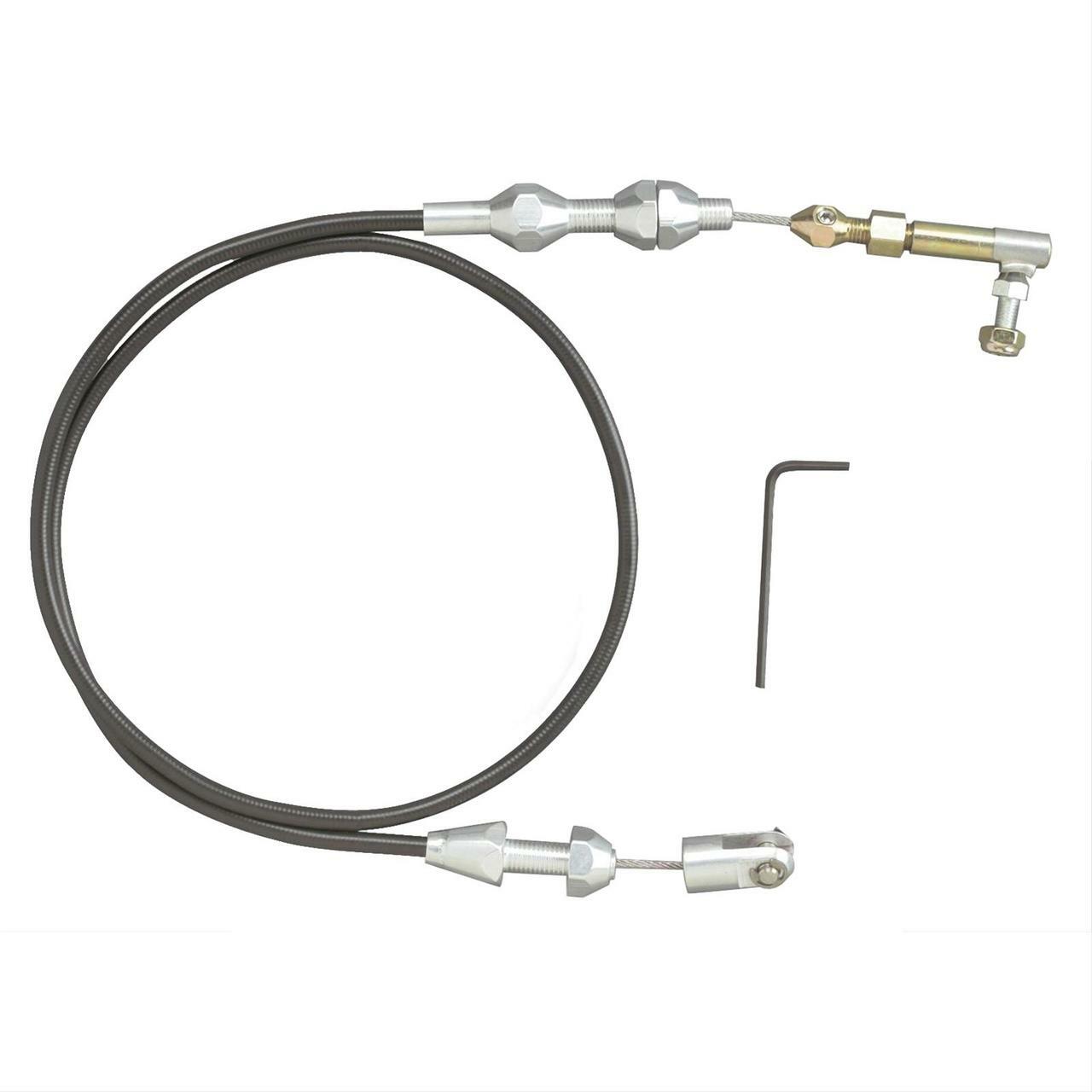

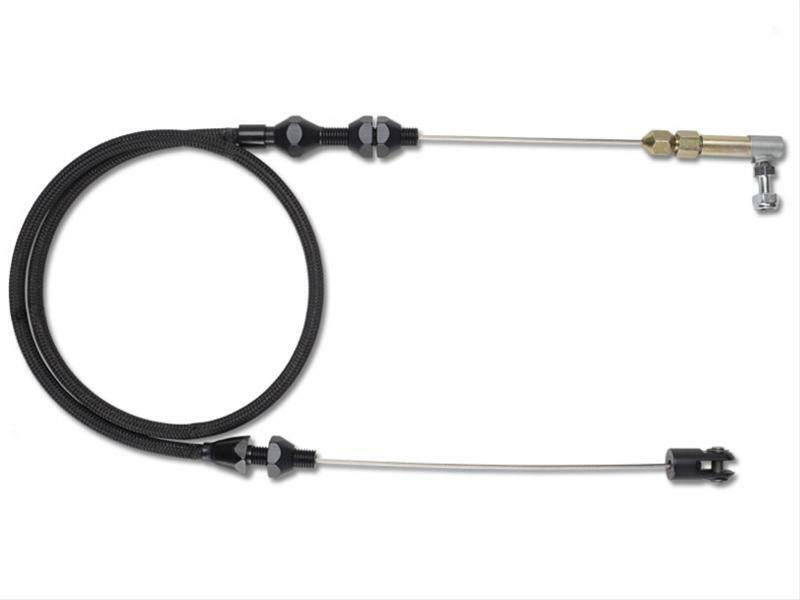

Hi-Tech Black Stainless Steel: Features a sleek black braided stainless cover fitted with black anodized aluminum end hardware.
-
Universal Black: Features a durable black polyethylene outer housing paired with clean aluminum fittings for a factory-style finish.
Key Features & Design Highlights
-
"U-Cut-To-Fit" Custom Sizing: Outer housing and inner wire are easily trimmed to match custom firewall-to-carburetor spacing (available in standard 24", 36", and select 48" lengths, with custom lengths available).
-
Friction-Reducing PTFE Line: High-density PTFE liner prevents internal wire drag, rust, and binding over thousands of thermal cycles.
-
Fray-Eliminating Aluminum Ferrules: Heavy-duty aluminum ferrules clamp tightly around the inner wire strands to prevent unraveling.
-
Clean Cotter-Free Clevis: Clevis hardware attaches cleanly to carburetor throttle arms without exposed cotter pins or set screws.
-
Universal Pedal Adaptability: Hooks up seamlessly to OEM factory gas pedals as well as Lokar aftermarket billet foot pedal assemblies.
-
American-Made Quality: Hand-assembled in the USA and backed by Lokar's Lifetime Warranty.
Technical Specification Matrix
| Feature / Metric |
Technical Specification Detail |
| Manufacturer |
Lokar Performance Products |
| Series |
Hi-Tech Universal Throttle Cable Series |
| Available Lengths |
24", 36", and 48" (Select Applications) Cut-to-Fit Housing |
| Housing Finish Options |
Stainless Steel Braid, Black Stainless Braid, Black Polyethylene |
| Fitting Finishes |
Brushed Aluminum, Polished Aluminum, or Black Anodized Aluminum |
| Inner Liner Material |
High-Density PTFE (Teflon) Sleeve |
| Inner Wire Material |
Stainless Steel Strand |
Installation & System Recommendations
-
Carburetor Bracket & Dual Return Springs: To ensure smooth alignment and positive throttle return, pair this cable with a Lokar stainless steel carburetor bracket and dual return spring kit that mounts to the rear carburetor mounting studs.
-
Transmission Kickdown Cables: If running an automatic transmission (GM TH350, 700R4, 200-4R, or Ford C4/C6), Lokar produces matching Hi-Tech kickdown cables that run parallel to this throttle cable for a unified engine bay look.
