Lokar 24 "Throttle Cable for Barry Grant Six Shooter 3 x 2

The Lokar Throttle Cable for Barry Grant Six Shooter (3 x 2) is a specialized cable assembly engineered to operate tri-power / 3x2 carburetor systems. Featuring Lokar’s signature "U-Cut-to-Fit" design, it allows builders to establish clean throttle pull and response across progressive or simultaneous 3x2 linkage setups on street rods and vintage hot rods.

Induction & Application Compatibility

• Induction System Fitment: Designed specifically to connect to the throttle linkage arm on Barry Grant Six Shooter 3x2 (three 2-barrel) carburetor intake setups.

• 3x2 Linkage Operation: Accommodates the unique travel requirements and anchor locations of progressive 3x2 multi-carburetor linkage plates without binding or sticking.

• Street Rods & Classic Builds: Ideal for vintage Small Block Chevy, Big Block, or Ford tri-power setups running modern Barry Grant 6-Shooter carburetion.

Product Overview & Performance

Multi-carburetor linkages place higher demands on throttle cables due to compound spring tensions and longer linkage actuation arcs.

Lokar solves this by enclosing a high-tensile stainless steel inner cable inside an extruded PTFE (Teflon) liner. This low-friction internal sleeve prevents wire drag, resists engine bay heat, and ensures smooth, linear throttle return across all three carburetors. Precision aluminum ferrules clamp over the trimmed inner wire ends to prevent fraying during initial setup or adjustment.

Housing & Finish Configurations

Lokar offers three distinct outer housing options paired with color-matched hardware to complement your engine bay:

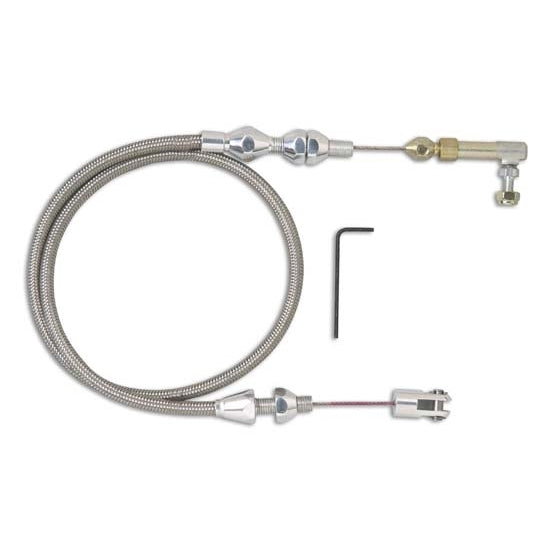

• Braided Stainless Steel: Features a classic high-shine stainless steel braid with natural brushed or polished aluminum fittings.

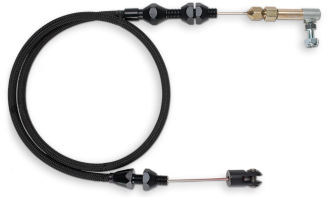

• Hi-Tech Black Stainless Steel: Features a sleek black braided stainless steel sheath fitted with black anodized aluminum hardware.

• Universal Black: Features a durable black polyethylene outer housing paired with clean aluminum fittings for a factory-style finish.

Key Features & Design Highlights

• "U-Cut-To-Fit" 24" Sizing: Outer housing and inner wire trim easily to match custom firewall-to-carburetor distances (standard 24" length, with 36" available for extended firewall routings).

• Barry Grant Clevis Connection: Connects directly to the Barry Grant Six Shooter linkage arm without slop or binding.

• Friction-Reducing PTFE Liner: High-density PTFE sleeve prevents internal wire drag and extends cable life.

• Anti-Fray Aluminum Ferrules: Precision aluminum ferrules lock around cut inner wire strands to prevent unraveling.

• Cotter-Free Clevis Design: Clean clevis attachment eliminates set screws and cotter pins at pedal and engine connections.

• Universal Pedal Adaptability: Hooks up seamlessly to OEM factory gas pedals or Lokar aftermarket billet foot pedal assemblies.

• American-Made Quality: Hand-assembled in the USA and backed by Lokar's Lifetime Warranty.
