Description

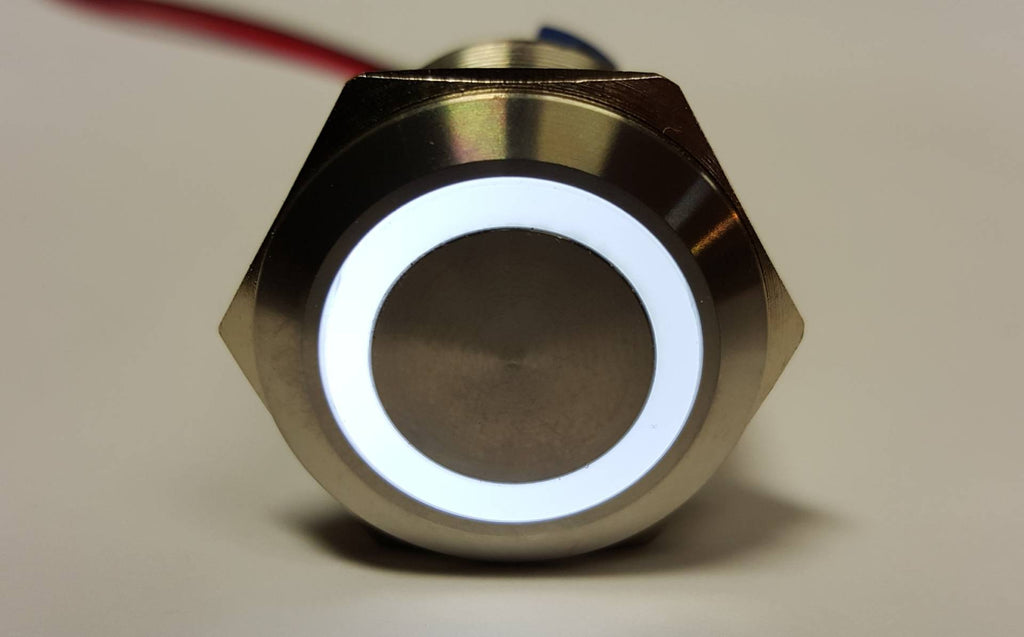

The Watson's StreetWorks Illuminated Billet Momentary Push Button Switch brings a modern, low-profile aesthetic and tactile precision to custom dashboards, center consoles, and interior panels. Designed for temporary activation tasks, this momentary switch stays engaged only while actively pressed—making it the perfect solution for horn triggers, starter buttons, trunk pop solenoids, or electronic door latches.
The integrated LED illumination ring is wired independently from the switch contacts, giving you complete freedom to use it as a live power indicator or as a night-time interior locator light wired into your dash lighting circuit.
Visual & Mechanical Customization
Housing Finishes: Choose between a show-quality Chrome or a sleek Black anodized finish.
LED Ring Illumination: Available in Blue, Green, Red, or White backlighting options.
Flexible Wiring Polarity: Configurable for either positive (+) or ground (-) switching applications.
Independent LED Control: The LED ring operates separately from the primary switch mechanism, allowing customized lighting behavior.
Size & Amperage Options
Small Size (16mm):
Mounting Hole Diameter: 5/8"
Outer Face Diameter: 3/4"
Current Rating: Rated up to 3 Amps maximum
Large Size (22mm):
Mounting Hole Diameter: 7/8"
Outer Face Diameter: Just under 1"
Current Rating: Rated up to 5 Amps maximum
Technical Specification Matrix
Feature Metric
Small Switch Specification
Large Switch Specification
Mounting Hole
5/8"
7/8"
Face Diameter
3/4"
1"
Max Amp Load
3 Amps
5 Amps
Switch Operation
Momentary (Press ON, Release OFF)
Momentary (Press ON, Release OFF)
Polarity Mode
Positive (+) or Ground (-)
Positive (+) or Ground (-)
Finishes
Chrome or Black
Chrome or Black
LED Colors
Blue, Green, Red, or White
Blue, Green, Red, or White
⚡ Wiring Tech Tip: Momentary switches are ideal for low-amperage trigger signals (such as starter relays, door latch solenoids, or horn circuits). For high-draw items like power trunk releases or horn compressors, always route the switch signal through a standard 30/40-amp automotive relay to protect the switch contacts from electrical arching.
