Description

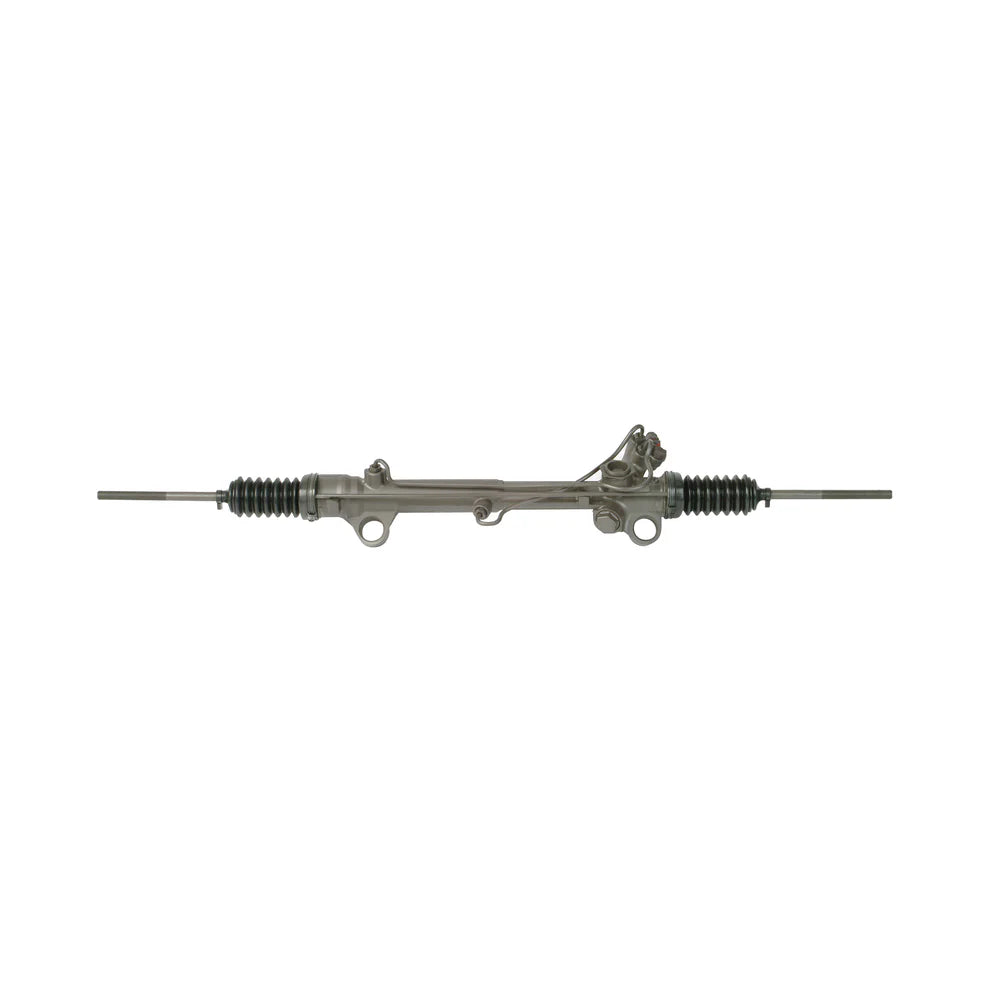

The Heidts Mustang II Power Rack and Pinion is a high-performance steering upgrade designed to provide smooth, modern steering feel for hot rods, street rods, and restomod projects utilizing a Mustang II-style Independent Front Suspension (IFS).
Precision Steering Input
3/4" 36-Spline Shaft: This rack features a heavy-duty 3/4"-36 spline input shaft, which is the industry standard for performance steering. This allows for a wide range of compatible U-joints and steering shaft couplers to connect to your steering column.
Quick Ratio: Typically designed with a performance ratio (often 2.5 turns lock-to-lock), providing more responsive handling compared to original manual racks.
Pressure and Flow Requirements
To ensure optimal performance and prevent damage to the internal seals, the power steering pump must be tuned to the following specifications:
Recommended Pressure:950–1050 PSI.
Flow Rate:2.7–3.5 GPM (Gallons Per Minute).
Important Note: Many standard GM Saginaw pumps output significantly higher pressure (up to 1200+ PSI). If using a high-pressure pump, a flow control valve or a Heidts Adjustable Proportioning Valve is recommended to dial back the pressure and prevent "twitchy" steering at high speeds.
Fittings and Plumbing
Metric O-Ring Ports: The rack is equipped with 14mm and 16mm O-ring style ports.
The 14mm port is typically the high-pressure inlet.
The 16mm port is the low-pressure return.
Compatibility: These ports are designed for late-model O-ring style fittings. If you are using AN lines, you will need 14mm/16mm to -6 AN adapters.
Specifications at a Glance
Mounting Centers: Standard 15-1/2" center-to-center mounting, fitting most aftermarket Mustang II crossmembers.
Construction: All-new unit (not remanufactured) with a durable housing and high-quality internal valving.
Tie Rod Ends: Usually features 9/16"-18 threads for the inner tie rods.
