Description

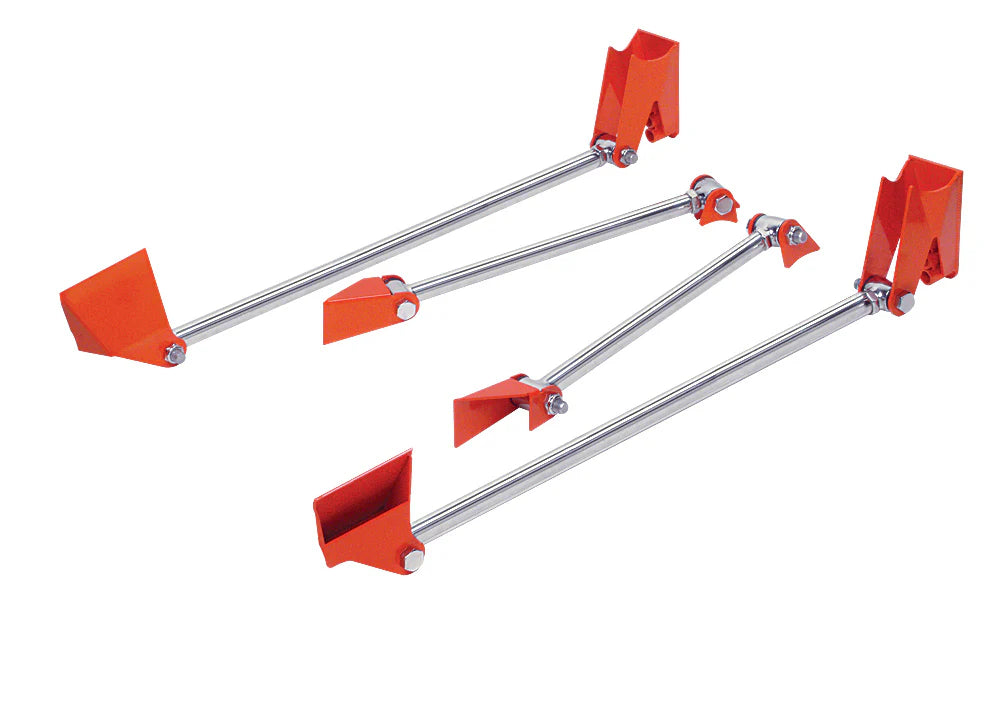

The Heidts Triangulated 4-Link Kit for the 1928–1931 Ford Model A is a highly popular rear suspension solution for hot rods and restoration-mods. This system provides superior axle control and ride quality compared to original leaf spring setups, making it an essential upgrade for vehicles equipped with modern high-torque engines.
Engineering and Design
Triangulated Geometry: The primary advantage of this design is that the upper bars are angled toward the center of the chassis. This configuration naturally centers the rear axle, eliminating the need for a panhard rod and resulting in a cleaner, less cluttered undercarriage.
Superior Adjustability: The kit features fully adjustable bars, allowing you to fine-tune your pinion angle and wheelbase for perfect drivetrain alignment.
Heavy-Duty Construction: The link bars are constructed from robust 1" x .156-wall tubing to withstand the stresses of performance driving and high-horsepower applications.
Vibration Dampening: Equipped with high-quality urethane bushings, the system provides a firm, responsive feel while significantly reducing the transfer of road noise and vibration to the cabin.
Technical Components
Adjusters: Includes 3/4-inch stainless steel adjusters for maximum corrosion resistance and ease of maintenance over time.
Chassis Brackets: The kit includes both angled and straight chassis brackets to accommodate different mounting requirements on the Model A frame.
Axle Brackets: Features multi-position coil-over axle brackets, giving the builder multiple mounting options to dial in the perfect ride height and shock angle.
Hardware: Ships with all necessary tabs, brackets, and high-strength hardware required for a complete installation.
Kit Includes:
Four Link Bars: Upper and lower links with urethane bushings.
Chassis Brackets: Angled and straight frame mounting units.
Axle Brackets: Multi-position coil-over mounts for the rear housing.

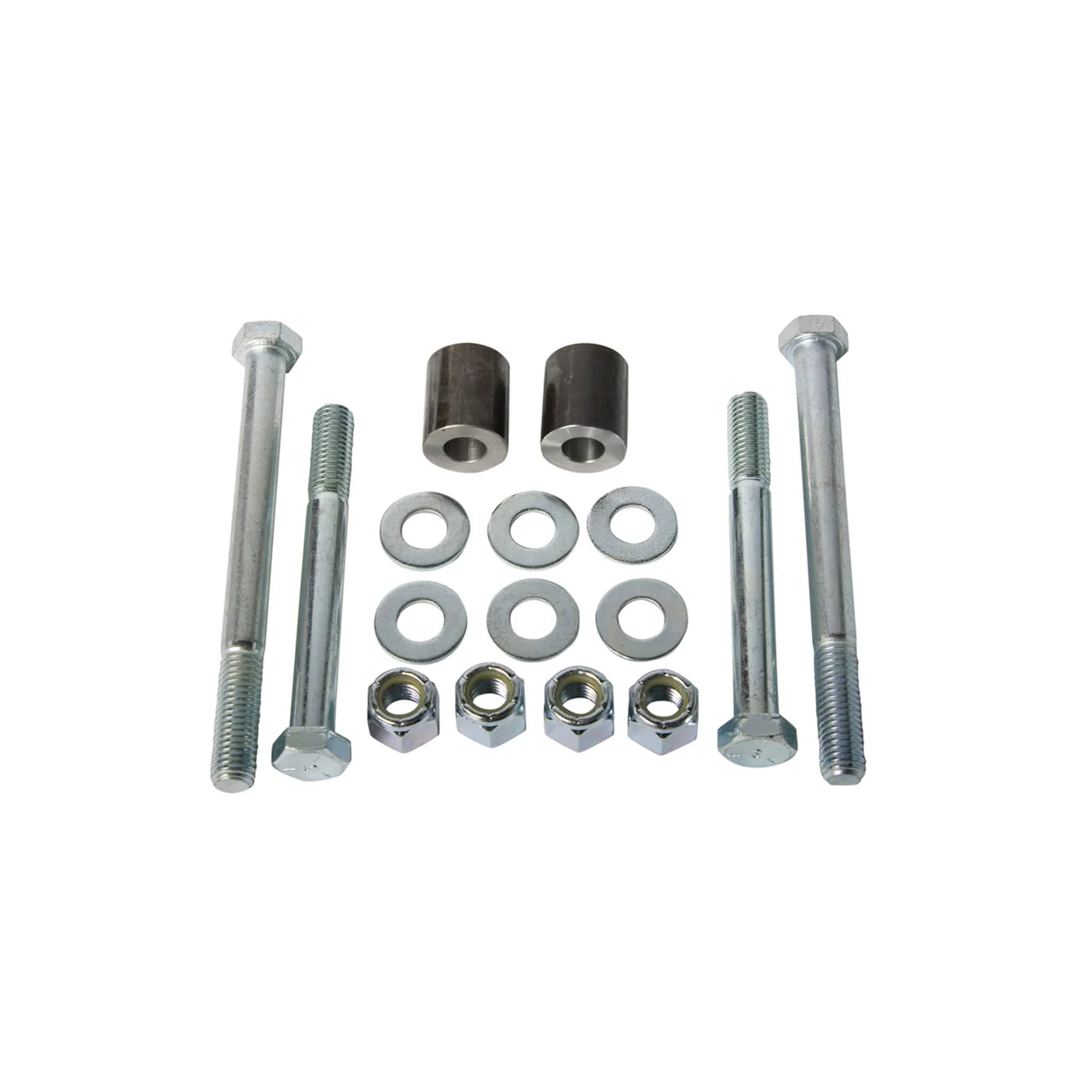

Hardware Package: Full set of mounting bolts, tabs, and stainless adjusters.
