The Ultimate Pro-Touring Front End

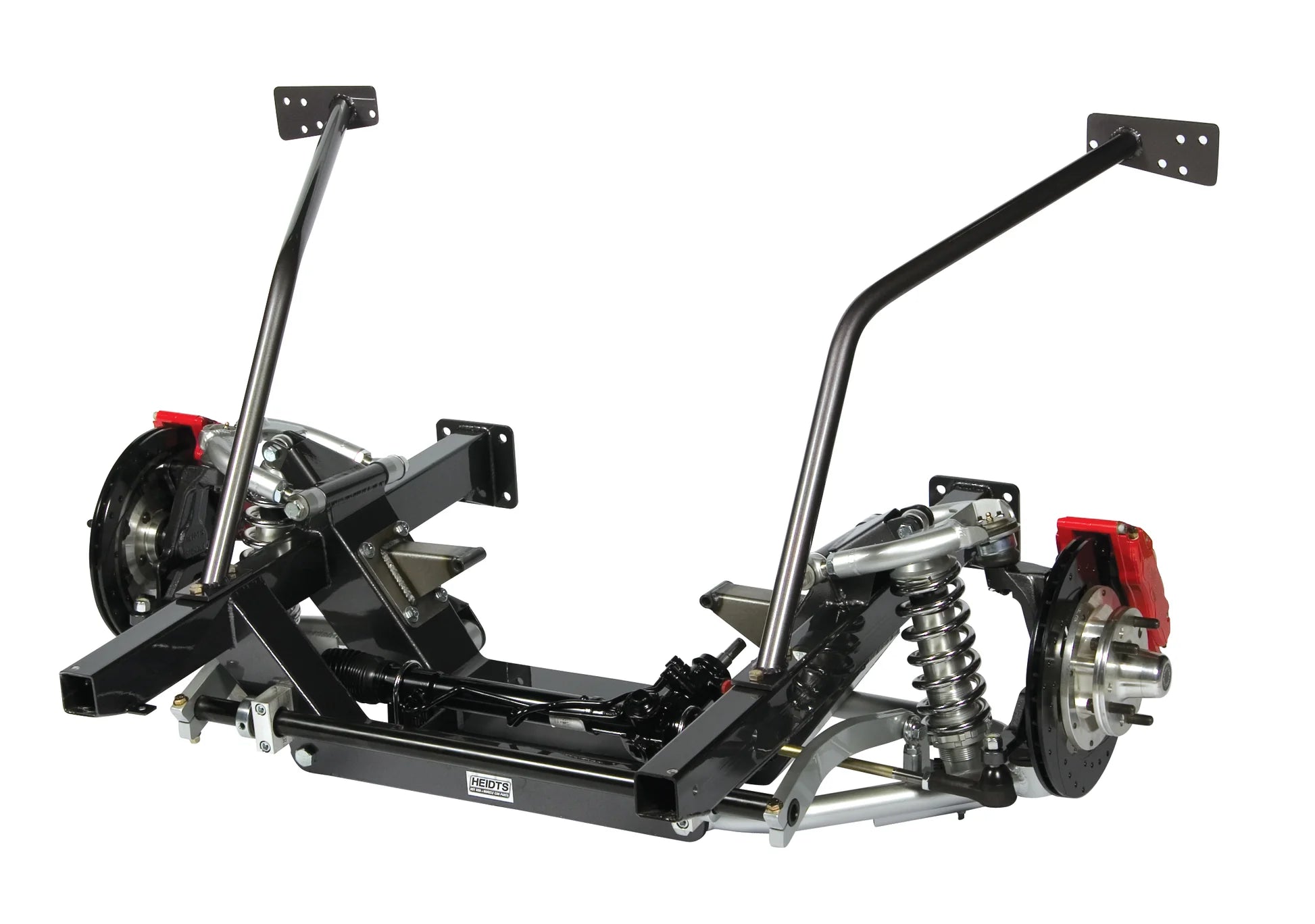

The Heidts Pro-G® Full Front Subframe for the 1962–1967 Chevy Nova is a true bolt-on masterpiece designed for the serious enthusiast. This system completely replaces the factory front clip with a high-performance subframe that integrates the Pro-G™ suspension package. It is engineered to deliver unbelievable cornering and handling, transforming the early Nova from a legacy cruiser into a modern performance machine capable of dominating the street or the track.
Engineering and Performance
True Bolt-On Installation: This system is designed for a straightforward swap. By unbolting the factory front sheet metal, engine, and original subframe, the new Heidts unit slides into place using factory mounting points, requiring no extensive fabrication to the main unibody.
Pro-G™ Suspension Geometry: Featuring Heidts' most aggressive suspension architecture, this kit provides optimized camber gain and a high-travel design. This ensures the tires maintain a massive contact patch even during extreme cornering maneuvers.
Structural Support: The kit includes support tubes with shims that tie the new subframe back to the firewall. This triangulated reinforcement is vital for handling the increased torsional loads generated by high-performance driving.
Modern Steering: Standardized with a power rack and pinion, this system provides the fast, precise steering feedback required for pro-touring applications, completely eliminating the loose feel of the original steering box.
Construction and Features
Custom Control Arms: Includes high-strength tubular control arms, available in plain or stainless steel for those looking to add a show-quality finish to their engine bay.
Aggressive Stance: The system comes standard with 2-inch dropped spindles, lowering the center of gravity and providing a modern, low-slung profile while maintaining ideal suspension geometry.
Precision Dampening: Equipped with billet adjustable coil-overs and 10-inch springs, allowing you to fine-tune both ride height and stiffness to your specific preference.
Stopping Power: Includes a high-performance 11-inch Wilwood brake kit as standard, ensuring your Nova has the braking capacity to match its new handling capabilities.
Kit Includes:
Main Subframe: Full replacement front subframe/crossmember assembly.
Control Arms: Tubular upper and lower arms (Plain or Stainless).
Spindles: 2-inch dropped spindles for an improved stance.
Brakes: 11" Wilwood disc brake system.
Steering: Power rack and pinion unit.
Suspension: Billet adjustable coil-over shocks and 10" performance springs.
Motor Mounts: Chevy motor stands for easy engine installation.
Support: Structural support tubes with shims for chassis rigidity.
Available Options:
Air Ride Compatibility: The frame can be configured for air shocks. Note: If selecting air ride, the frame rails must be pocketed for proper clearance.
Front Sway Bar: An optional addition to further reduce body roll during high-speed cornering.

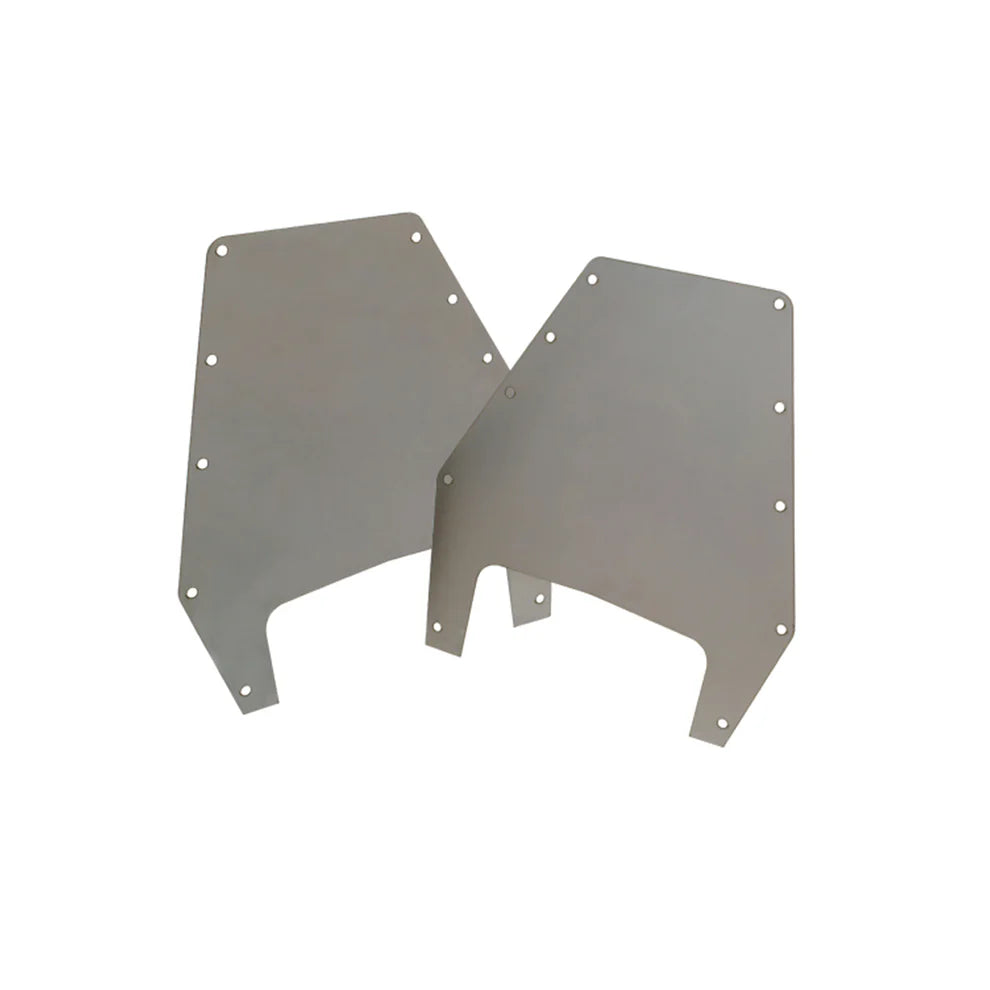

Inner Fenders: Custom-formed panels to provide a clean, finished appearance in the engine bay.
Transmission Crossmember: An optional stock-replacement unit to ensure your drivetrain remains perfectly aligned with the new subframe.
