Description

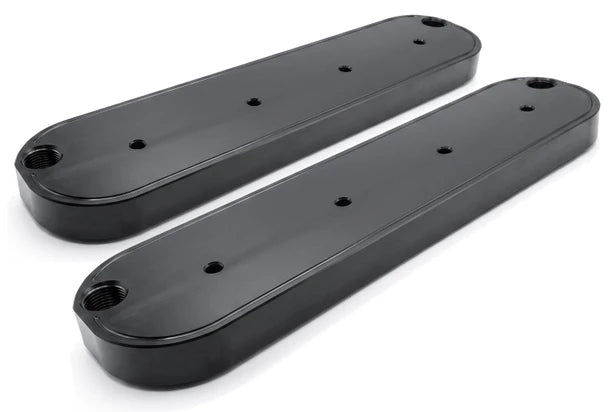

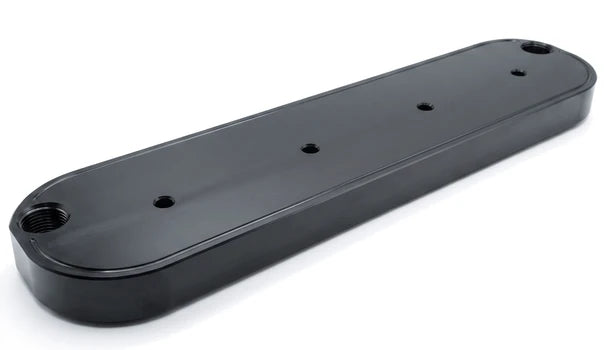

The CVF Racing Gen III & Gen IV Chevy LS Billet Aluminum Valve Covers are premium, American-made engine covers CNC-machined from solid 6061-T6 billet aluminum. Built for street rods, track cars, pro-touring builds, and LS swaps, these covers provide a clean, high-end appearance while offering race-grade crankcase ventilation and leak-free reliability.
Product Overview & Performance
Unlike traditional aftermarket sheet-metal or cast valve covers that rely on internal sheet-metal baffle plates attached with small screws—which can loosen under severe engine vibration—CVF Racing machines the oil baffles directly into the solid aluminum casting itself. This dual-baffle design completely eliminates internal fasteners that could potentially back out into the valvetrain.
The sealing system features custom molded perimeter gaskets and self-sealing stainless steel socket head cap screws equipped with captive Viton® O-rings. This integrated arrangement eliminates bulky rubber grommets and washers while maintaining a tight, leak-resistant seal against high crankcase pressures.
Key Features & Design Highlights
Solid 6061-T6 Construction: Precision CNC-machined from aircraft-grade billet aluminum for maximum rigidity and thermal stability.

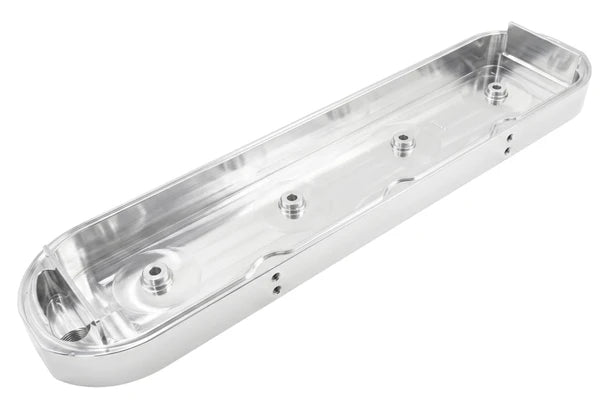

Integrated Machined Baffling: Dual internal oil baffles are an integral part of the cover body—no loose screws or sheet metal to back out into moving rocker arms.
Integrated Viton® Sealing Hardware: Includes stainless steel socket head cap screws featuring captive Viton® O-rings that seal the bolt holes without separate rubber grommets.
Dual -12 ORB Port Architecture: Each valve cover is equipped with two -12 ORB (O-Ring Boss) ports to easily adapt catch cans, vacuum pumps, PCV valves, or oil fills.

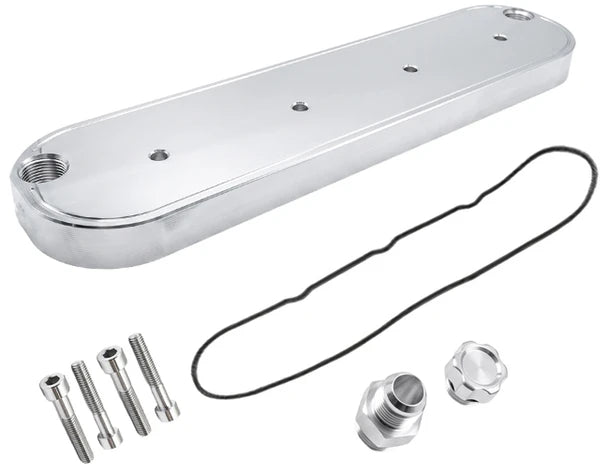

Includes AN Adapter Fittings: Comes complete with your choice of -10AN or -12AN to -12 ORB adapter fittings.
Premium Finish Options: Available in Polished, Stealth Black Anodized, or C3 Ceramic Clear Coat finishes.
American-Made & Guaranteed: Designed and manufactured in the USA, backed by the CVF Racing Lifetime Warranty.
Technical Specification Matrix
Feature / Metric
Technical Specification Detail
Manufacturer
CVF Racing
Engine Fitment
All GM Gen III & Gen IV LS Series V8 Engines (4.8L, 5.3L, 5.7L LS1/LS6, 6.0L LS2, 6.2L LS3)
Dual -12 ORB ports per cover (4 ports total per pair)
Included Fitting Adapters
Choice of -10AN to -12 ORB or -12AN to -12 ORB
Hardware & Fasteners
Stainless steel self-sealing socket head cap screws with captive Viton® O-rings
Finish Options
Polished, Stealth Black, or C3 Ceramic Clear Coat
Coil Mounting
Requires aftermarket coil relocation brackets (Cleans up valvetrain layout)
Fitment & Application Notes
LS Coil Relocation: Because these covers do not feature integrated top-side mounting bosses for factory LS ignition coils, Gen IV (and Gen III) engines require an aftermarket LS coil relocation bracket kit (such as CVF Racing's LS Coil Relocation Bracket) to mount the coils off the covers.
LS Swap Styling: Designed to match and complement CVF Racing billet serpentine belt systems for a unified, show-quality engine bay.
