Description
The CVF Racing Gen III & Gen IV Chevy LS Billet Aluminum Ignition Coil Brackets provide a direct-fit, show-quality solution for mounting factory or aftermarket GM ignition coils directly to CVF Racing billet valve covers. Designed to eliminate messy brackets and custom fabrication, these precision CNC-machined aluminum brackets keep ignition coil packs organized while complementing high-end LS engine bays.
Product Overview & Performance
When upgrading to aftermarket billet valve covers, mounting factory LS ignition coils often becomes a major hurdle due to missing OEM top-mount bosses. These CVF Racing coil brackets solve this by bolting cleanly onto CVF Racing Billet LS Valve Covers using pre-aligned mounting points.
Precision-machined from high-strength billet aluminum, the kit includes custom aluminum spacers and stainless steel hardware to ensure proper coil spacing and wire clearances. The setup requires no loose nuts, washers, or custom modifications during assembly.
Key Features & Design Highlights
Direct Bolt-On Compatibility: Specifically engineered to attach directly to CVF Racing Billet LS Valve Covers without drilling or custom bracket fabrication.
Universal GM Coil Support: Engineered with multi-pattern mounting locations to accept the four most common GM LS ignition coil body styles (D580, D510C, D514A, and D851).
High-Strength Billet Aluminum Construction: CNC-machined for structural rigidity, eliminating flexing or vibration-induced metal fatigue under high-RPM operation.

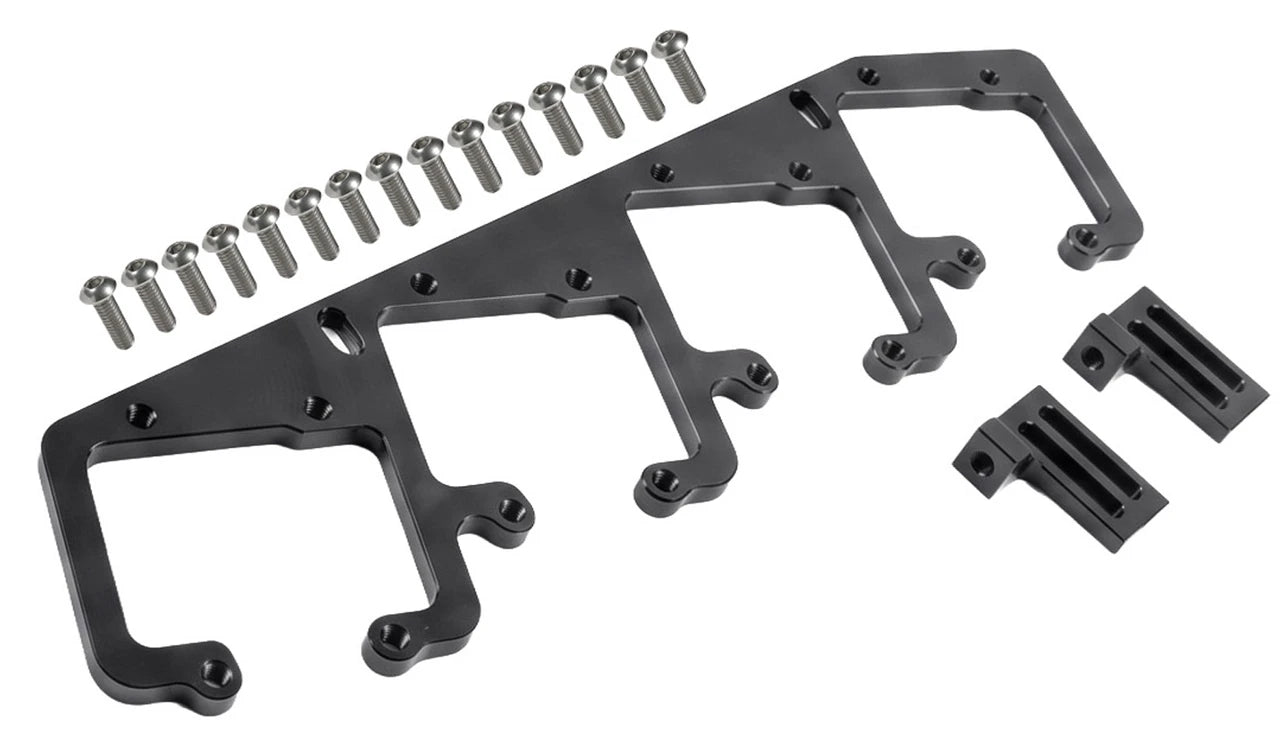

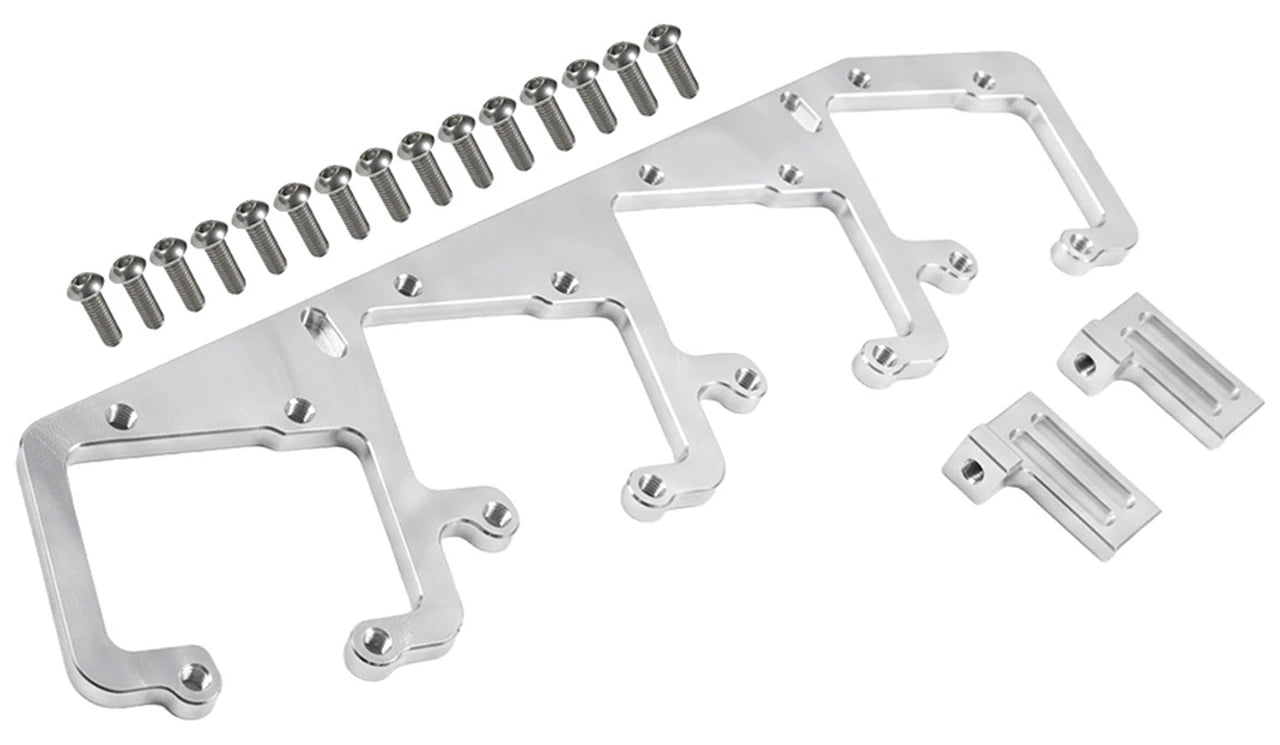

Complete Hardware Package: Includes all necessary billet spacers, mounting brackets, and stainless steel hardware for a clean setup.
Matched Finish Options: Available in Polished, Stealth Black Anodized, and C3 Ceramic Clear Coat to match CVF Racing valve covers and serpentine pulley systems.
Made in the USA: Manufactured to precise engineering tolerances in the USA.
Technical Specification Matrix
Feature / Metric
Technical Specification Detail
Manufacturer
CVF Racing
Engine Application
GM Gen III & Gen IV LS Series V8 Engines (LS1, LS2, LS3, LS6, LS7, L99, L92, 4.8L, 5.3L, 6.0L, 6.2L)
Valve Cover Fitment
Designed specifically for CVF Racing Billet LS Valve Covers
Supported Ignition Coils
GM D580 (Melco), D510C (LS3/LS7/LS9), D514A (Truck/Square), and D851 (Mitsubishi)
Material
CNC-Machined Billet Aluminum
Hardware
Included Stainless Steel Socket Head Cap Screws & Billet Aluminum Spacers
Finish Options
Polished, Stealth Black, or C3 Ceramic Clear Coat
Coil Compatibility Breakdown
D580: Standard early Gen III / Gen IV round-body LS coils.
D510C: Gen IV LS3 / LS7 / LS9 flat-style coil packs.
D514A: Gen IV "Truck" style square coils with heat sinks.
D851: High-output Gen IV Mitsubishi-style coil assemblies.
