Achieve precise fuel control and superior filtration for your performance vehicle with this EFI Adjustable Fuel Pressure Regulator and Filter Combo. Housed in durable billet aluminum, this universal system is designed to meet the high demands of modern electronic fuel injection (EFI) applications, especially those running boosted setups.
Key Features and Performance:
-
Billet Aluminum Construction: Both the regulator and filter are made from high-quality billet aluminum for maximum strength and durability.
-
Adjustable Pressure: Features an adjustable bypass regulator that allows you to set fuel pressure precisely from 35 to 70 PSI.
-
Boost Referencing: Fuel pressure rises on a 1:1 ratio when referencing boost, ensuring your engine receives consistent fuel delivery under all conditions.
-
High Flow Capacity: Fully compatible with high-performance fuel pumps up to 450 LPH (Liters Per Hour).
-

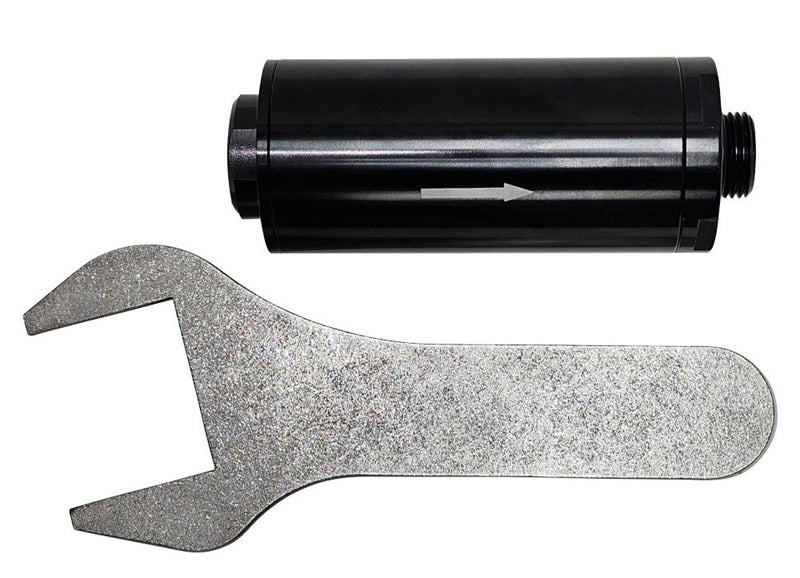

Superior Filtration: Includes a 2” diameter by 5−7/8” long filter housing with a 10 Micron Stainless Steel Washable Element, offering excellent protection for your injectors.
-

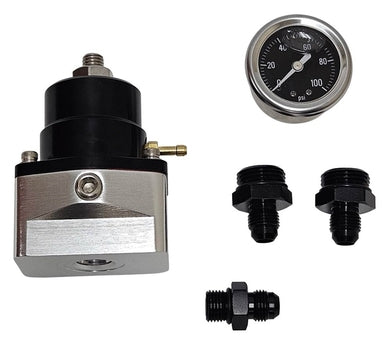

Integrated Monitoring: Comes with a fuel pressure gauge and a 1/8” NPT gauge port for easy pressure monitoring.
Plumbing and Installation Details:
-
Fittings: The regulator uses −10 ORB (O-Ring Boss) fittings for the inlet/outlet and a −6 ORB fitting for the return.
-

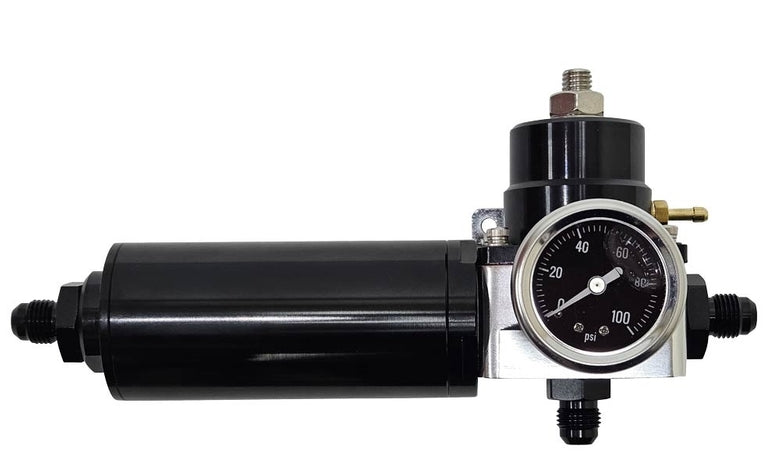

Direct Connection: The filter is designed to connect directly to the regulator, featuring a −10 ORB Female Inlet and a −10 ORB Male Outlet.
-
Kit Contents: Includes necessary −6 AN Male to ORB fittings and an installation wrench.

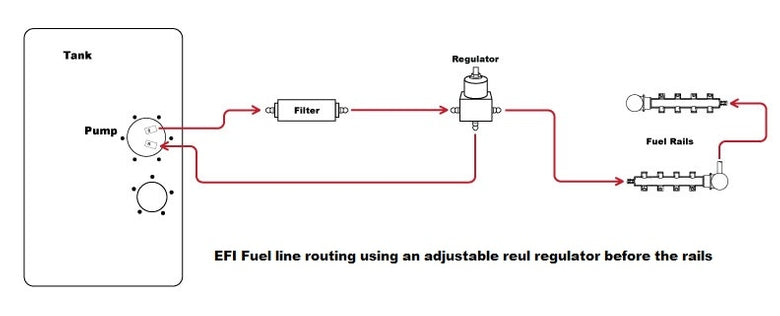

Installation Note: The regulator must be mounted before the fuel rails when connected to the filter for proper system operation.
