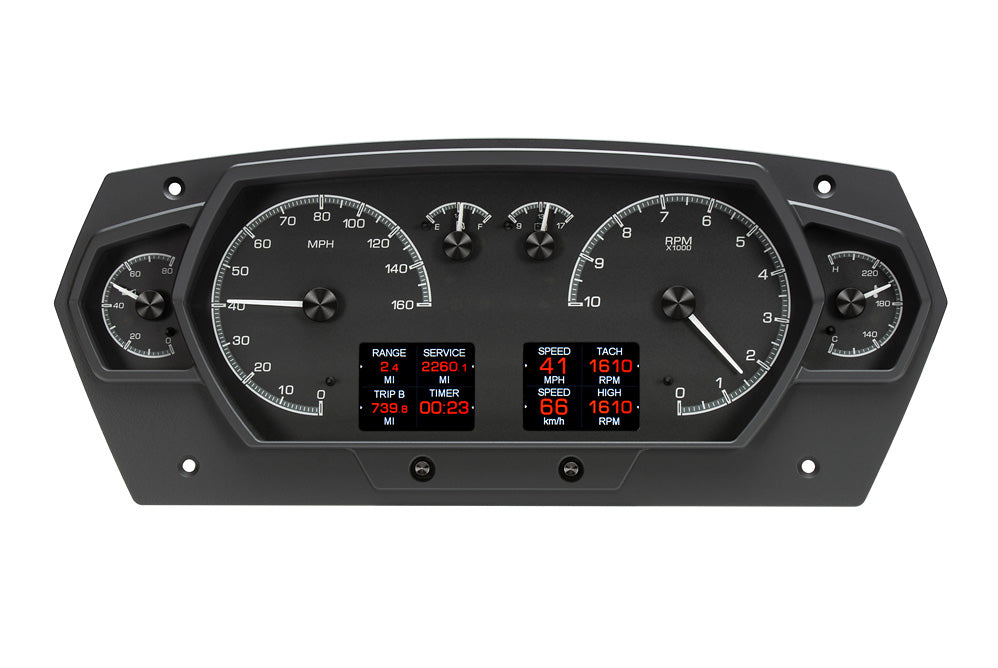

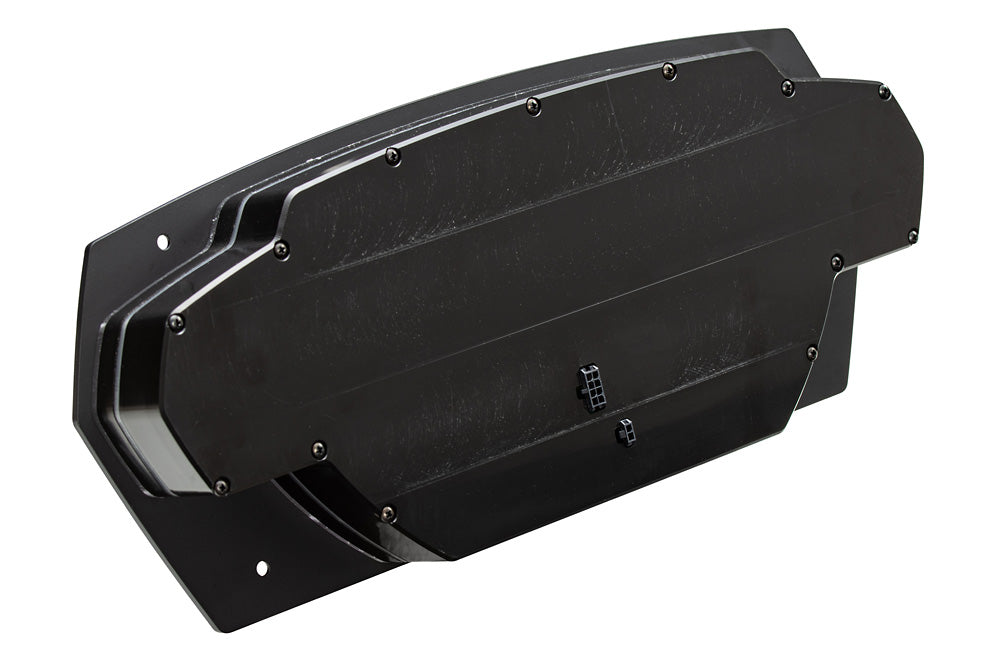

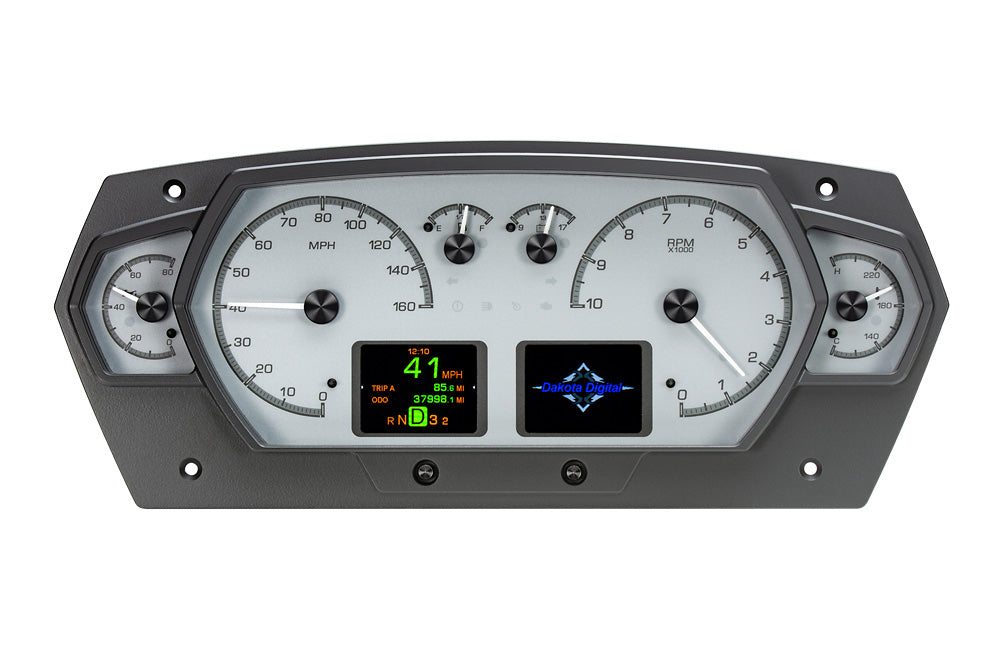

Unlike anything we’ve offered before, the HDX-2200 will set your project apart from the masses! Requiring 15.10” x 6.25” of flat dash space, this six-gauge system features two large TFT message centers for maximum driver awareness. Ensure you have 2” of clearance behind the 14.60” x 5.83” cutout. Billet aluminum bezel is powder coated in matte black, and the capacitive-touch programming switches are set just below the TFTs.

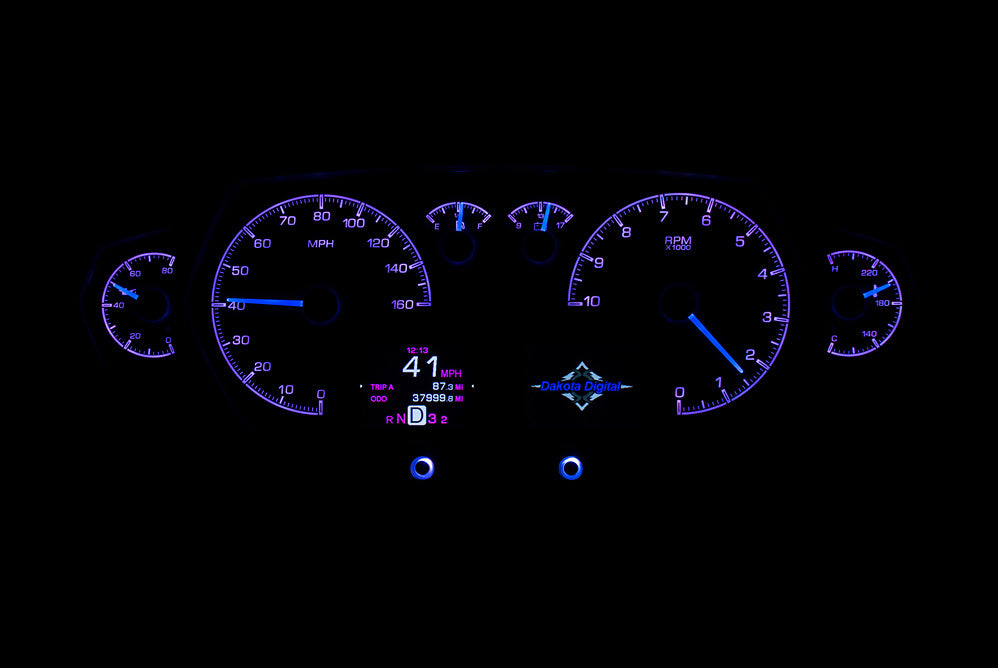

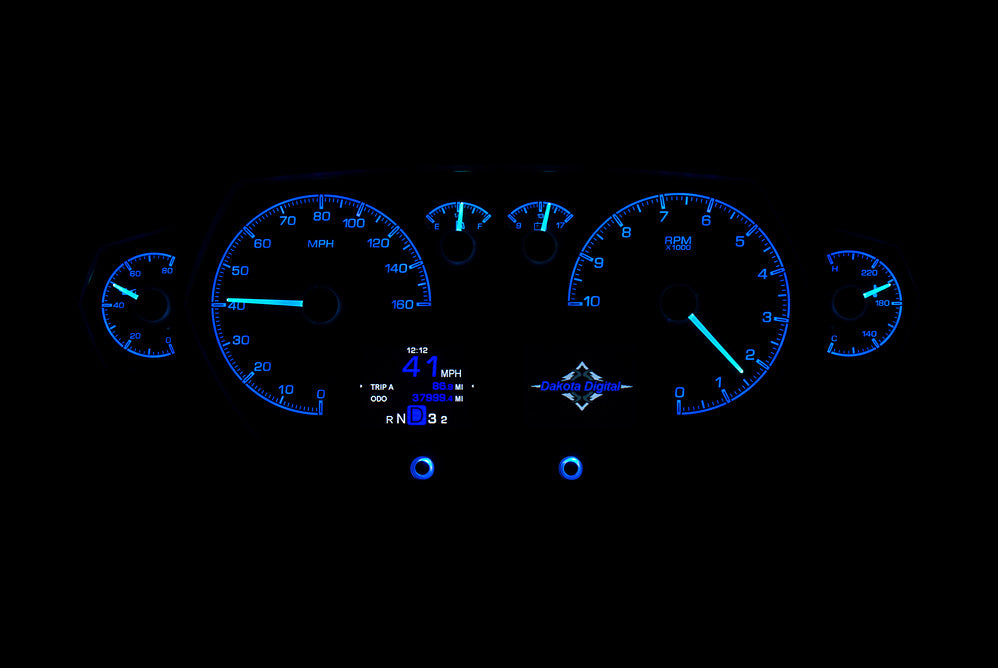

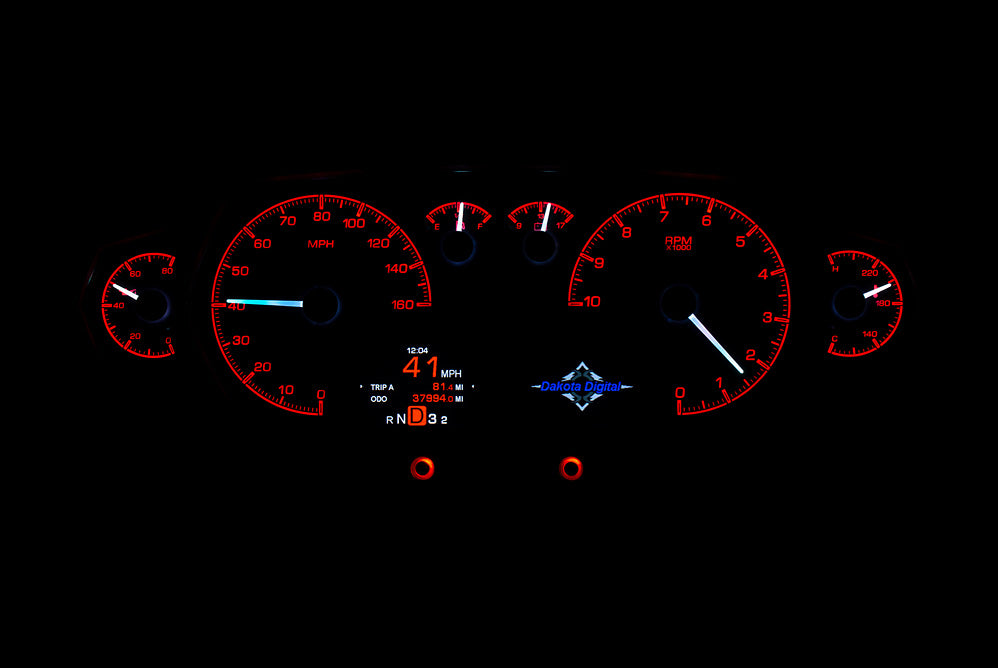

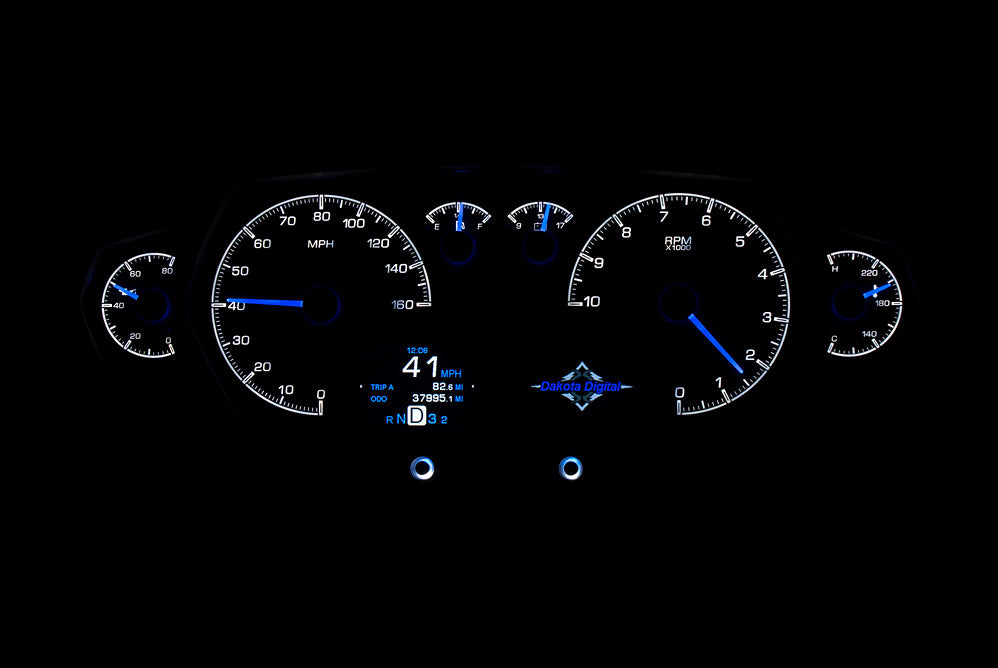

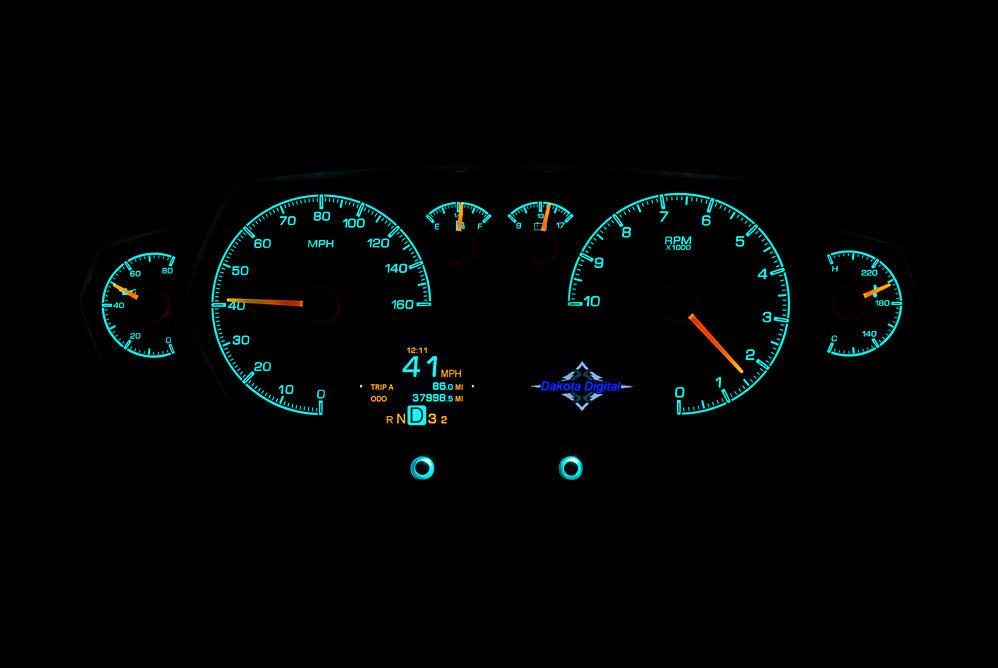

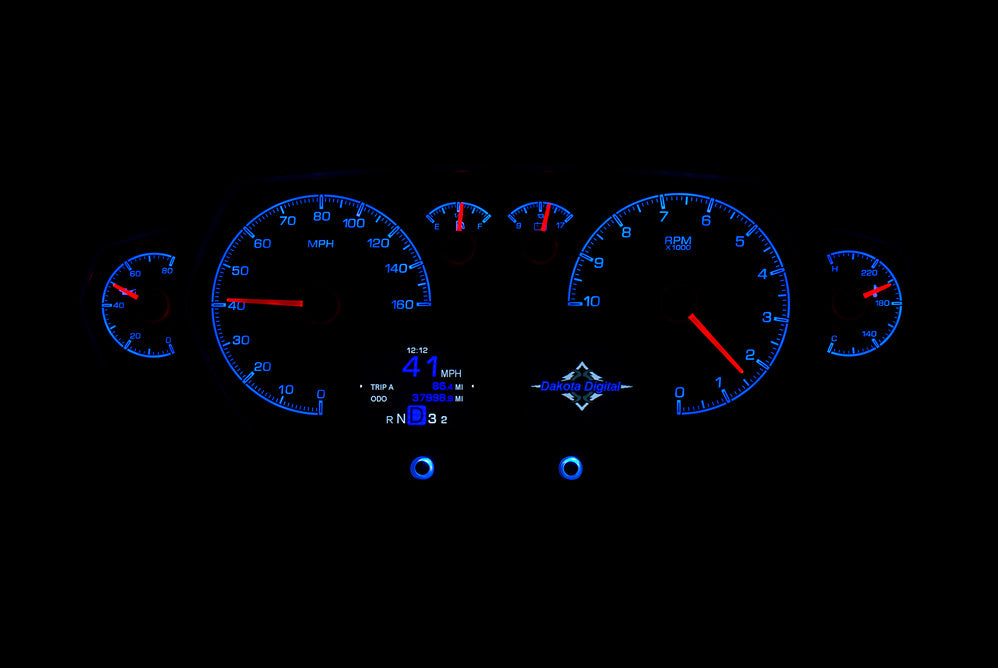

Available with your choice of black or silver alloy gauge-face styling, each HDX system allows the user to select independent illumination colors for the gauge readings and needles, as well as the message centers. Calibration and personal settings are manipulated with the built-in, capacitive-touch buttons, or the available Bluetooth app for Apple and Android devices. Each needle hub is black nickel plated spun-aluminum to match the buttons. All HDX instrument systems feature dead-faced indicators (turn signals, high beam, check engine, cruise control, parking brake, plus two user-definable), and a red, settable warning light for each gauge. With our central control box, installation is greatly simplified with vehicle-harness sourced signals and supplied, solid state sending units connecting cleanly to their respective terminal. Click the tabs below for a more in-depth look at the HDX series!
·0 -160 MPH (optional metric version 0- 260 kmh)
·Split scale provides resolution of a 120MPH speedometer, with a top end range of 160MPH.
·0- 10,000 RPM
·0- 80 psi
·100- 260ºF (optional metric version 40- 120ºC)
·E, 1/4, 1/2, 3/4, F
·9- 17 VDC
·12 Hr Analog Clock Movement
Digital Message Centers
·Odometer (One time user settable, Million Mile)
·Dual (A/B) Trip Meter (0- 9,999.9)
·Clock (12 hour)
·Estimated Range/ Miles to Empty
·0- 60 MPH Timer (0- 100 kmh)
·1/4 and 1/8 mile time
·1/4 and 1/8 mile end speed (trap speed)
·High speed recall
·High RPM recall
·Turn Signals (Left/ Right)
·Cruise Control (On/ On & Engaged when vehicle is equipped)
·Gear Position (Optional GSS-3000 sensor required)
·4 x 4 (When vehicle is equipped)
·Wait to Start (When vehicle is equipped)
·Two Auxiliary input indicators with user-programmable labels
·Each analog gauge sweep contains a red LED indicator for quick notice of a warning condition (except speedometer)
