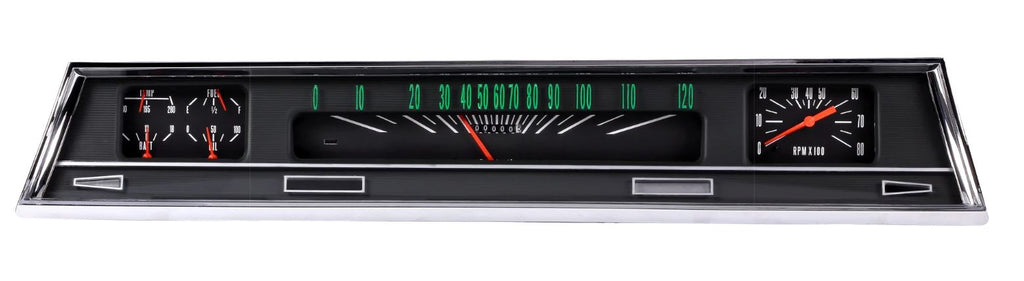

The 1966–1967 Chevrolet Chevelle & El Camino Direct-Fit Gauge Cluster by Classic Instruments upgrades factory dash layouts with high-precision electronic instrumentation. Designed for direct mounting into stock 1966–1967 dashboard housings, this complete 6-gauge package replaces mechanical cables and aging stock wiring with all-electric stepper motor movements.
Featuring proprietary ZST™ (Zeus Speedometer Technology), the speedometer integrates directly with modern VSS (Vehicle Speed Sensor) or ECM outputs without requiring external control boxes.
Key Features & Design Highlights
Stock Factory Integration: Mounts directly into 1966–1967 Chevelle and El Camino dash openings, featuring turn signals and high-beam indicators positioned in original OEM locations.
Integrated Shift & Warning Indicators: Built-in programmable shift light and engine warning indicators keep the cluster face clean without adding external pod lights.
ZST™ Electronic Architecture:Interfaces seamlessly with pulse generators, ECM outputs, or VSS signals.Calibration is performed by driving at a steady speed and pressing a calibration button.
Selectable Fuel Resistance Switch:Built-in ohm range selector switch allows compatibility with factory GM fuel senders (0–90 ohm) or popular aftermarket fuel tank senders without needing a separate module.

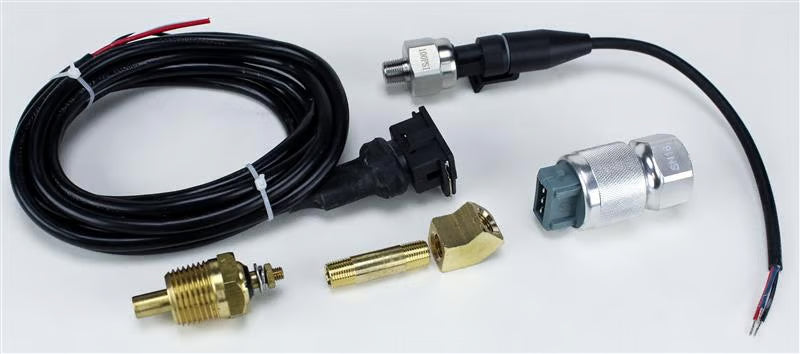

Complete Sender Pack Included: Comes complete with all necessary engine temperature, oil pressure, and speed sending units.
Technical Specification Matrix
Feature / Metric
Technical Specification Detail
Manufacturer
Classic Instruments
Vehicle Application
1966–1967 Chevrolet Chevelle & 1966–1967 El Camino
Temperature Sender, Oil Pressure Transducer, Wiring Harness, Push-Button Switches
Styling Face Options

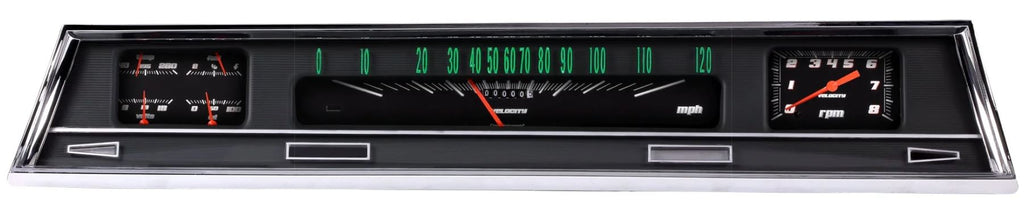

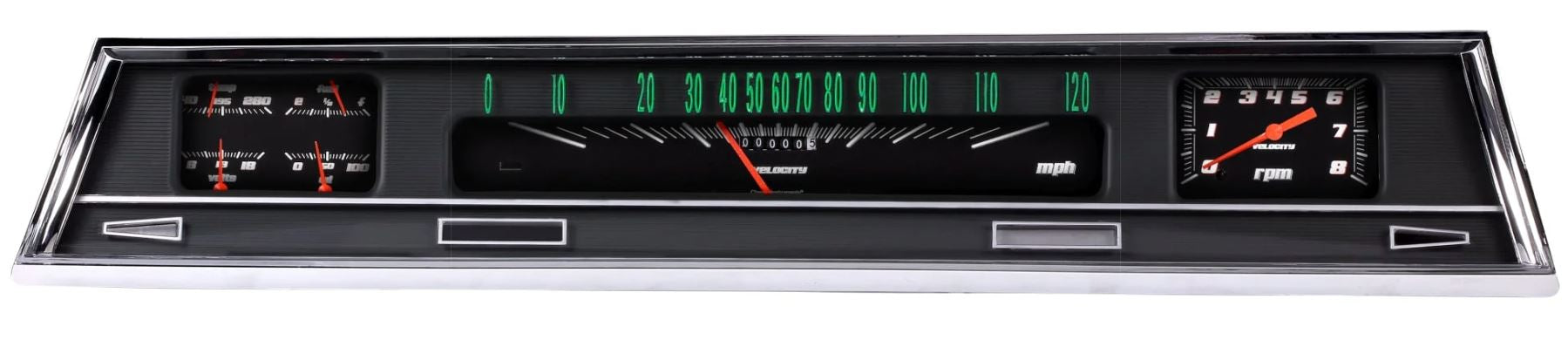

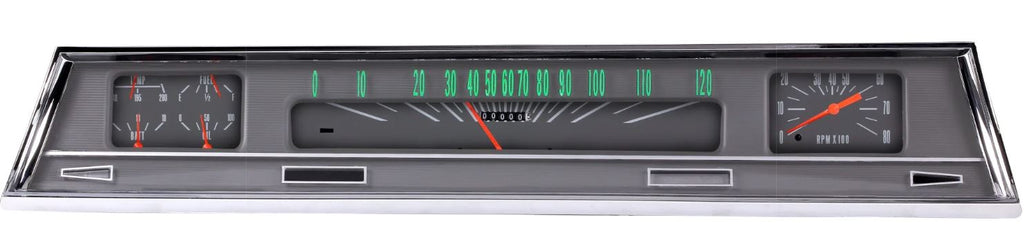

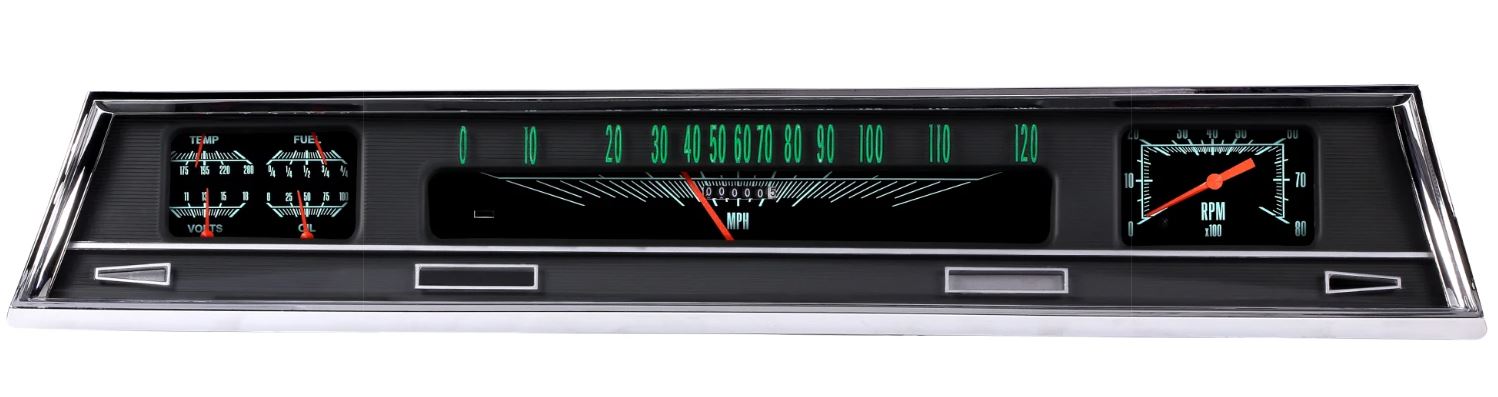

Black w/ White Text, Black w/ Turquoise Text, Grey w/ White Text, Velocity Style
🛠️ Installation & Lens Tech Note: The cluster includes an aftermarket reproduction clear lens. If desired, you may retain and re-use your original factory dash lens during assembly.
