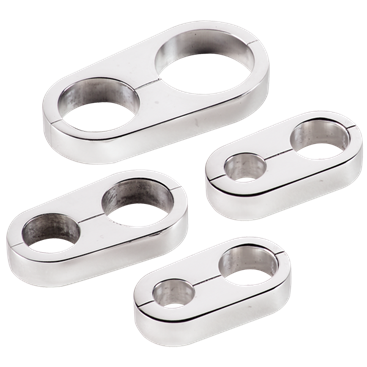

Billet Specialties hose separators are precision machined from 6061-T6 billet aluminum and are available in many popular combinations and sizes.Sold individually.
Product Features
• Industry leading mirror finish polish
• Stainless bolt
Tech Tip: A hose’s listed size is always in reference to the inside diameter of that hose. Example, a 5/8” heater hose has an inside diameter (I.D.) of 5/8” while the outside diameter (O.D.) is 29/32” or .906. The O.D. is the dimension needed when purchasing hose separators.
Hose Separator Technical Data - Decimal & Fraction Listed are hose Outside Diameter.
Braided AC Hose Diameter |
Hose # |
Decimal |
Fraction |
#6 |
.440 |
7/16" |
#8 |
.540 |
35/64" |
#10 |
.630 |
5/8" |
Braided AN LineDiameter |
Size |
Decimal |
Fraction |
-6 |
.562 |
9/16" |
-8 |
.625 |
5/8" |
-10 |
.781 |
25/32" |
-12 |
.906 |
29/32" |
-16 |
1.125 |
1-1/8" |
|
|
AC Hose Diameter |
Hose # |
Decimal |
Fraction |
#6 |
..734 |
47/64" |
#8 |
..890 |
57/64" |
#10 |
.969 |
31/32" |
Heater Hose Diameter |
Size |
Decimal |
Fraction |
5/8" |
.906 |
29/32" |
3/4" |
1.015 |
1-1/64" |
|
