PERFORMANCE MONO-TUBE STRUT
Not just a replacement strut ... The new Ridetech performance struts are designed with handling performance and ride quality in mind.
Features:
- Steel Mono-Tube strut design
- Oversized rod guides for maximum strength and durability
- Extruded aluminum clamp mount with integrated stainless brake line, abs for bolt on installation
- Nitro carburized finish for a lasting durability

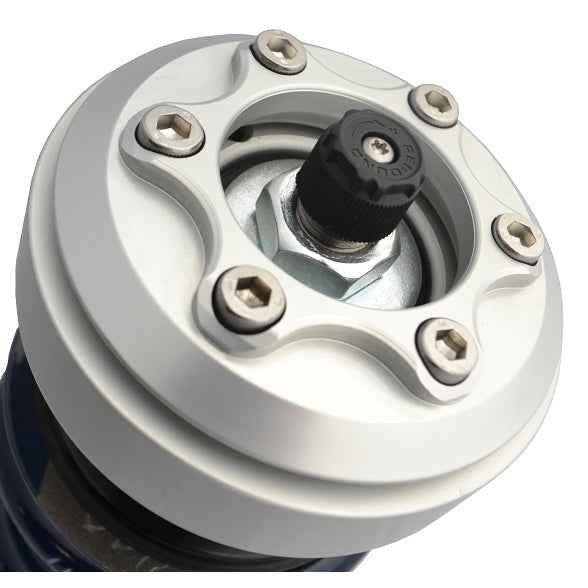

- Billet upper mounting bracket with built in camber/caster adjustment.
- Integrated thrust bearing
- Includes Hyperco Springs (made with high tensile steel)
- Delrin spring washers for easy spring retainer adjustment.
- Available in (single adjustable HQ) (triple adjustable TQ)

RideTech CoilOvers

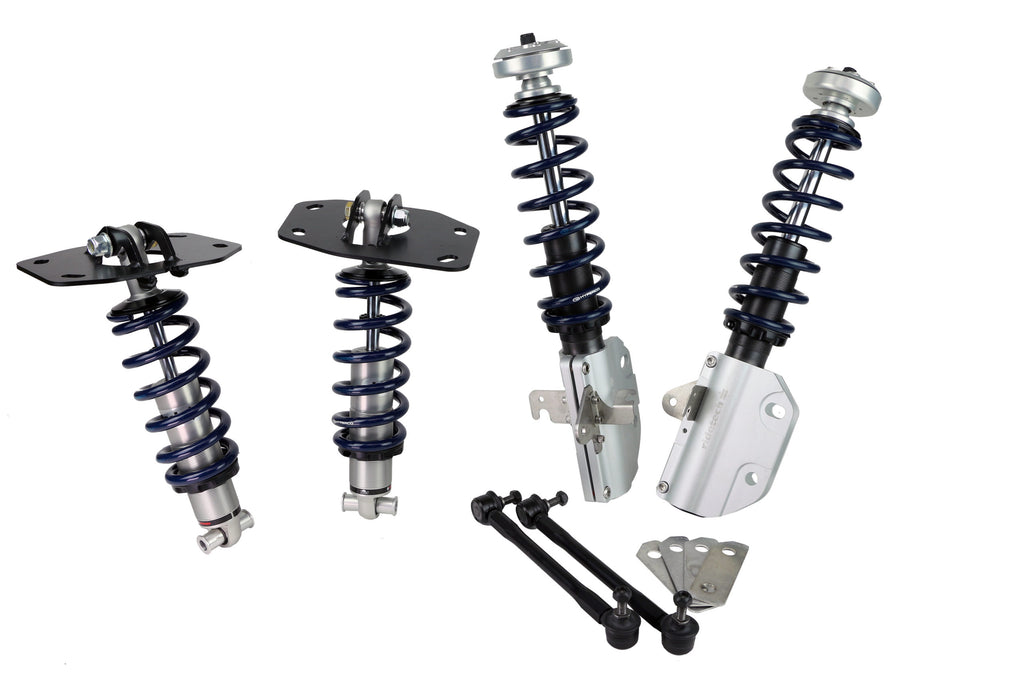

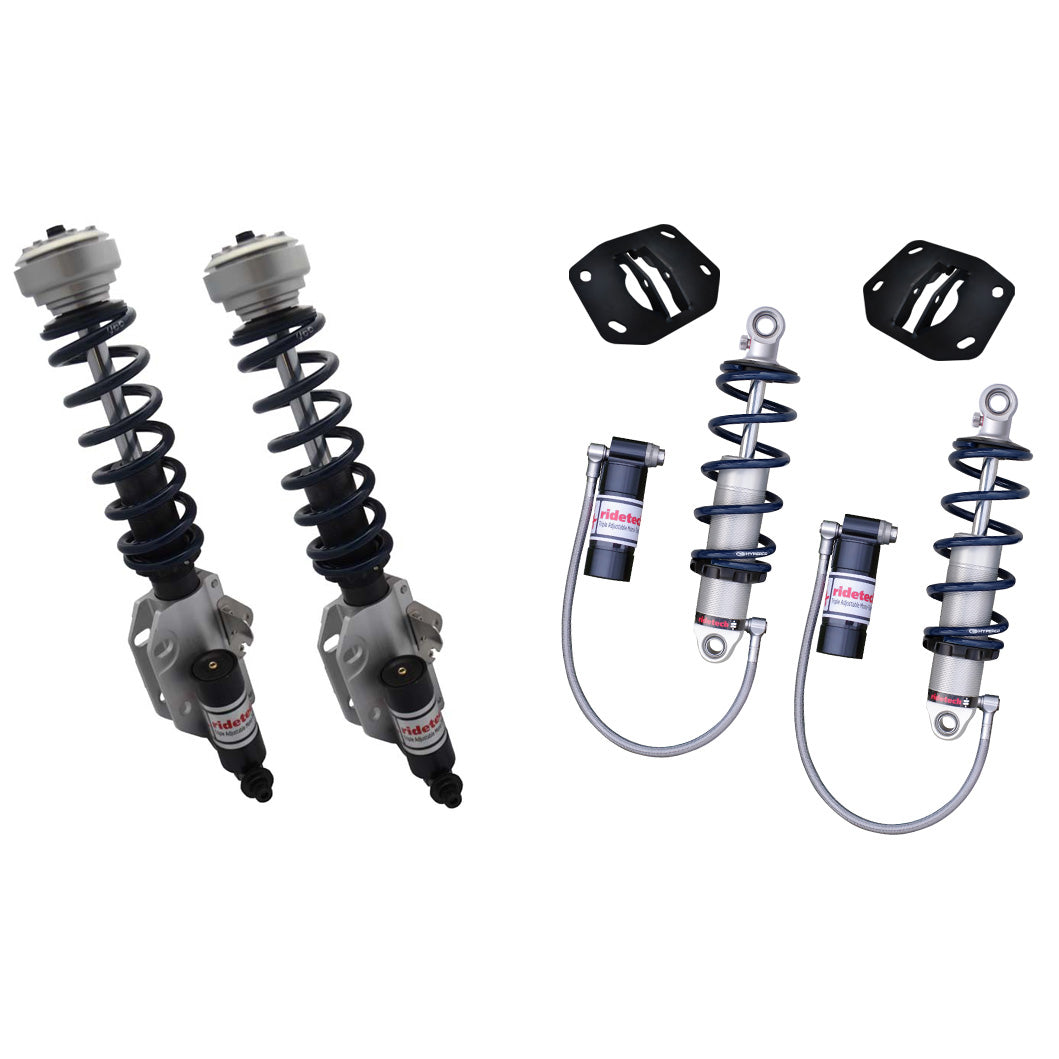

The System Includes: 2 Coil-Over Front Struts, 2 Coil-Over Rear Shocks & 4 Springs, with proper spring rate
RideTech continues to offer today’s hot rodders the ultimate in ride quality, handling performance, technical support, and now, SIMPLICITY, with the new RideTech Coil-Overs.
-
Anodized finish protects against corrosion
-
Available as fixed valve or rebound single adjustable
-
CNC machined billet hardware
-
Unique pinch clamp height adjuster uses finer thread for easy adjustment
-
Includes 1/2" bore x 1" kevlar lined bearings for noise free operation
RideTech 2 1/2" coil over springs
built in Indiana by HyperCo:
High tensile premium steel CNC cold wound, less weight, more resistant to bowing, increased travel with durable powered coated finish
-
Monotube gas pressure design offers superior fade free performance
-
Impact forged aluminum body provides superior strength and reliable service
-
Larger 1.834" piston provides outstanding ride quality
-
Double sealed rod guide with dust cover eliminates oil leakage
-
5/8" chrome shock shaft

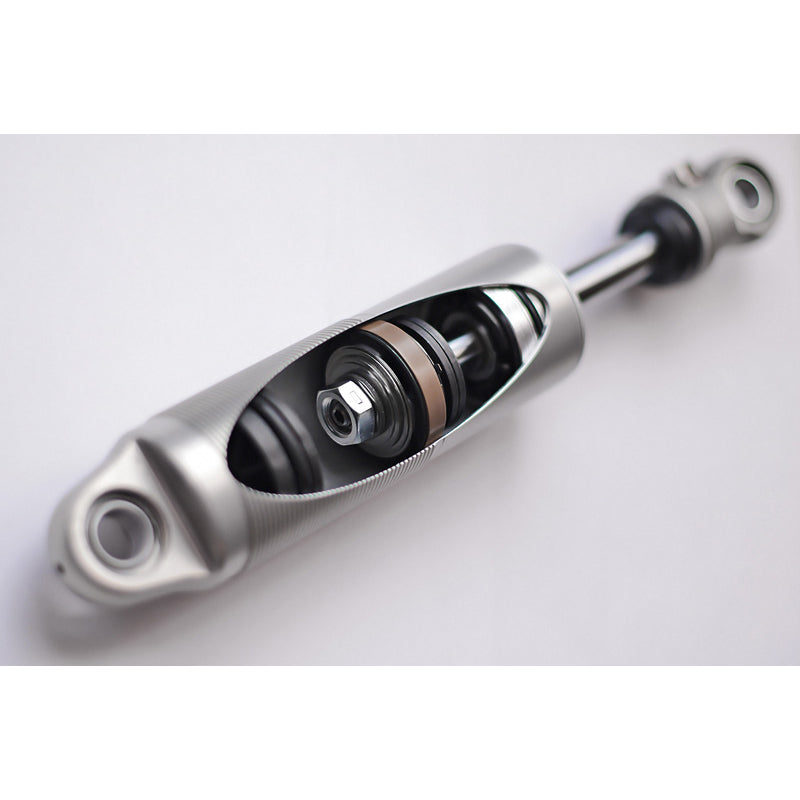

RideTech Aluminum MonoTube Shocks
Great Performance
Mono-tube construction sets this coil-over shock apart - it means consistent performance and great ride quality
Install Instructions (11500210.pdf, 5,265 Kb) [Download] [View]
Coil-Over Instructions (CoilOver_Instructions.pdf, 1,307 Kb) [Download] [View]
Quick Shock Tuning Guide (19-shock-tuning-guide.pdf, 952 Kb) [Download] [View]
