Description
Modern Performance with a Factory Soul
The "New Edge" Mustang (1999–2004) refined the SN95 platform with sharper lines and increased performance, culminating in the legendary "Terminator" Cobra. The Dakota Digital RTX Series honors this era by providing an instrument cluster that maintains the correct factory appearance while integrating high-definition technology and customizable performance features.
The Best of Both Worlds: OEM Styling & Modern Tech

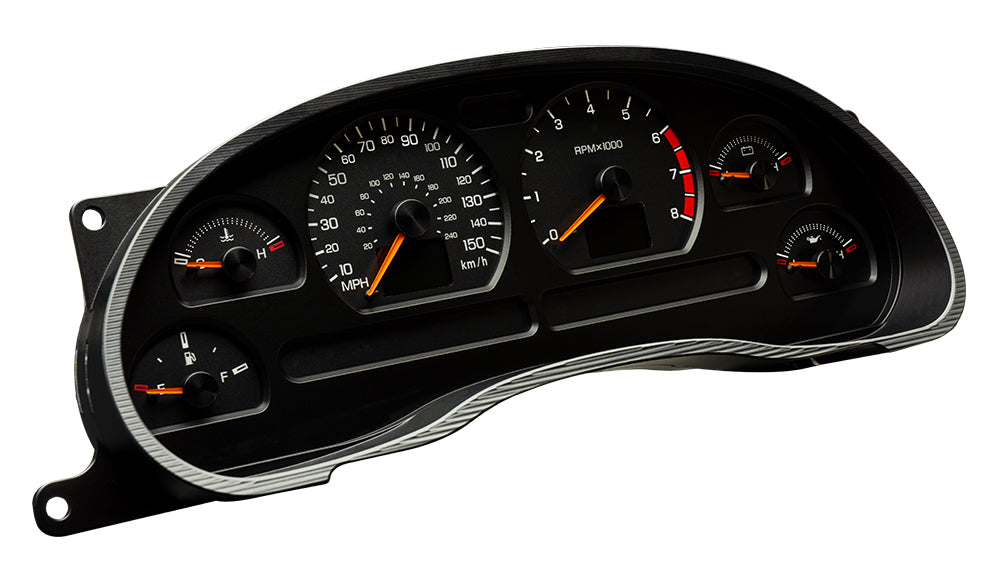

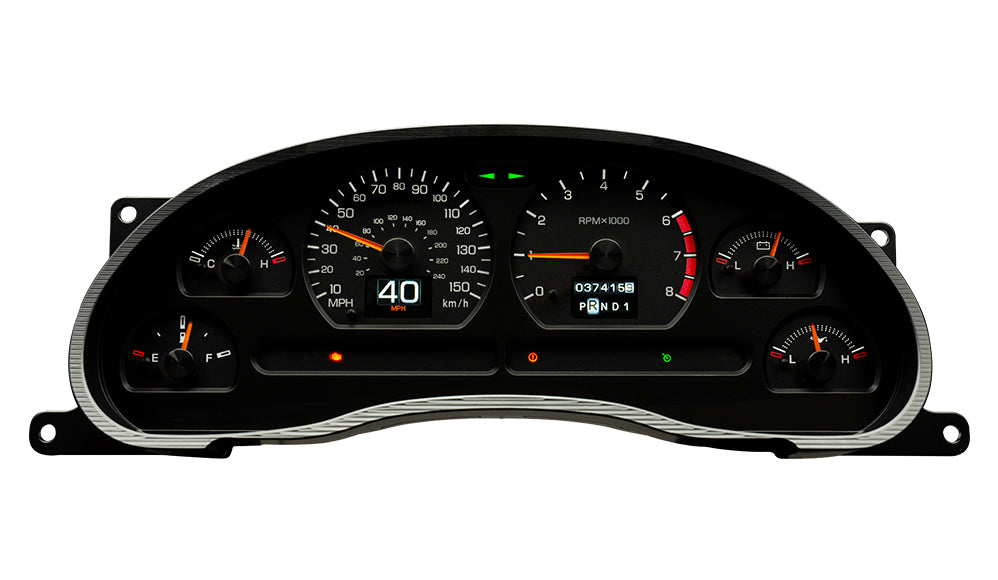

Authentic Aesthetics: Designed specifically for the 1999–2004 layout, the RTX series incorporates original OEM design elements. From the face styling to the indicator placements, it is designed to look like a stock unit until the ignition is turned on.

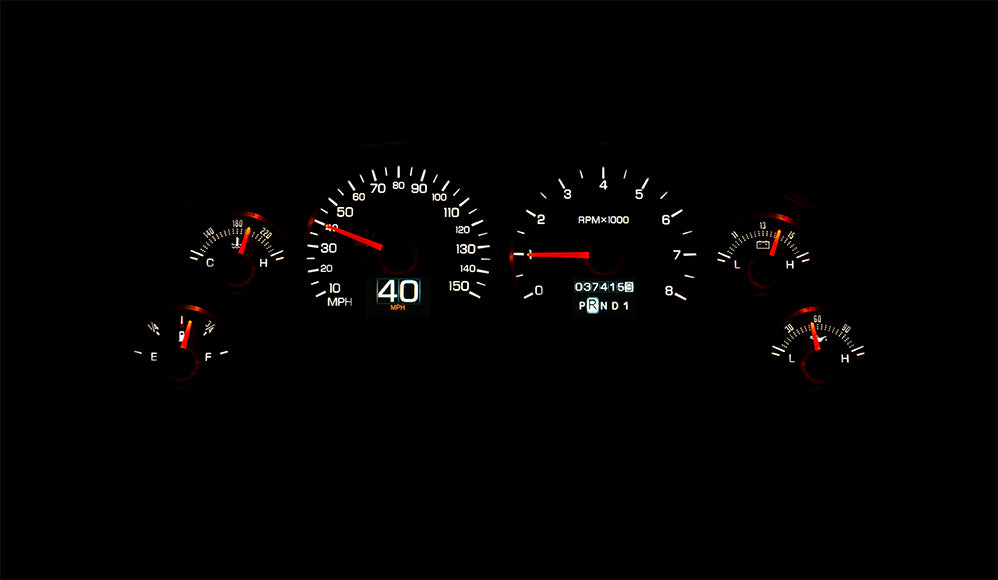

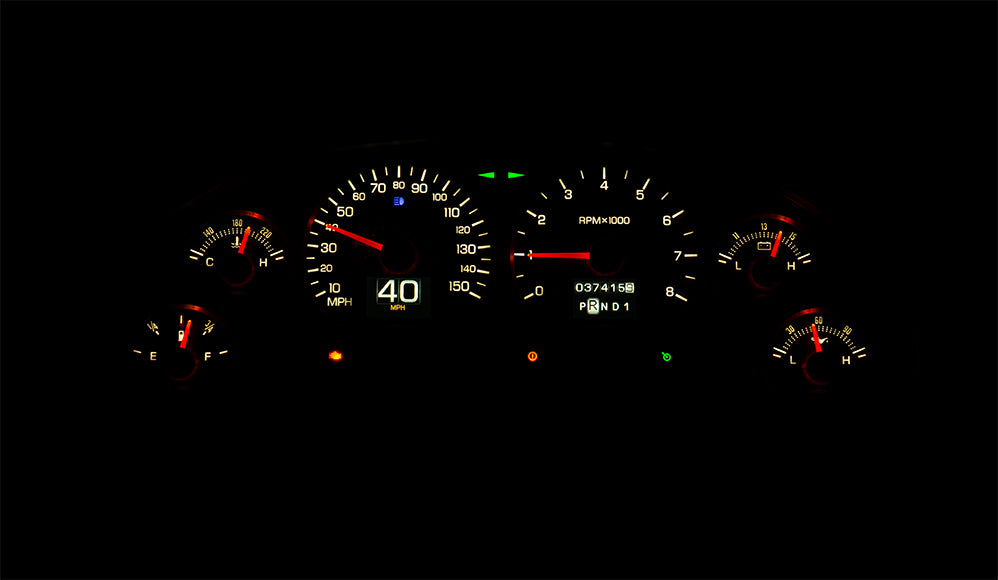

Vibrant Customization: The cluster features full RGB LED backlighting, allowing you to choose from over 30 user-selectable color options. You can independently set colors for the needles, gauge sweeps, and digital displays to match your interior theme.
High-Definition TFT Displays: Dual high-contrast TFT message centers provide a wealth of information. These can be configured to show standard data like odometers and clocks, or advanced performance metrics.
Precision Engineering: Every unit is housed in a CNC machined enclosure and utilizes micro-controlled stepper motors and solid-state sensors for unparalleled accuracy compared to original mechanical or early electronic gauges.
Built-In Performance Meters
Track your Mustang's capabilities directly through the dash with integrated performance timers:
0-60 MPH Timer
1/4 mile and 1/8 mile time and end speed
High Speed and High RPM recall
Streamlined Installation & Integration
Central Control Box: The RTX system uses a single central control box to manage all sensor inputs. This drastically simplifies wiring, as only one cable needs to be routed from the control box to the display cluster in the dash.

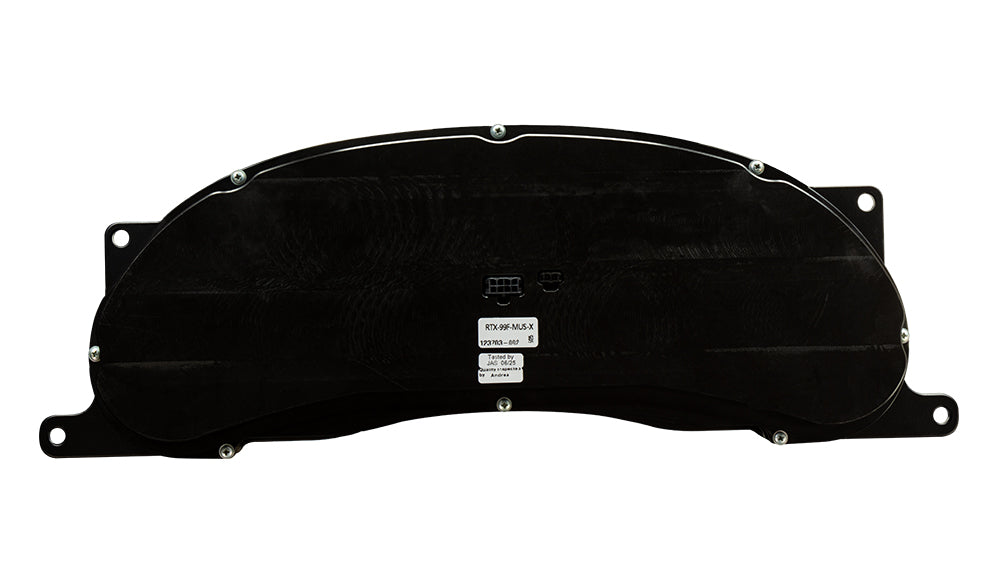

Direct Fit: This system is a direct replacement for the factory cluster, utilizing the original instrument housing and bezel for a clean, professional installation.
Bluetooth Connectivity: The system can be configured and calibrated using the Dakota Digital mobile app on your smartphone, making setup easier than ever.
Key Specifications:
Speedometer: 0–160 MPH
Tachometer: 0–8,000 RPM
Oil Pressure: 0–80 psi
Water Temp: 100–260°F
Fuel Level: E, 1/4, 1/2, 3/4, F (Compatible with stock Ford sensors)
