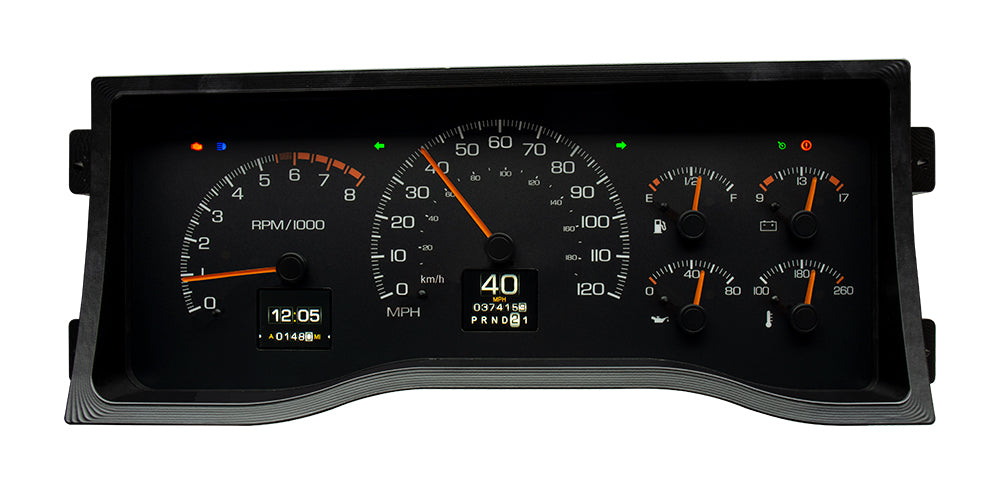

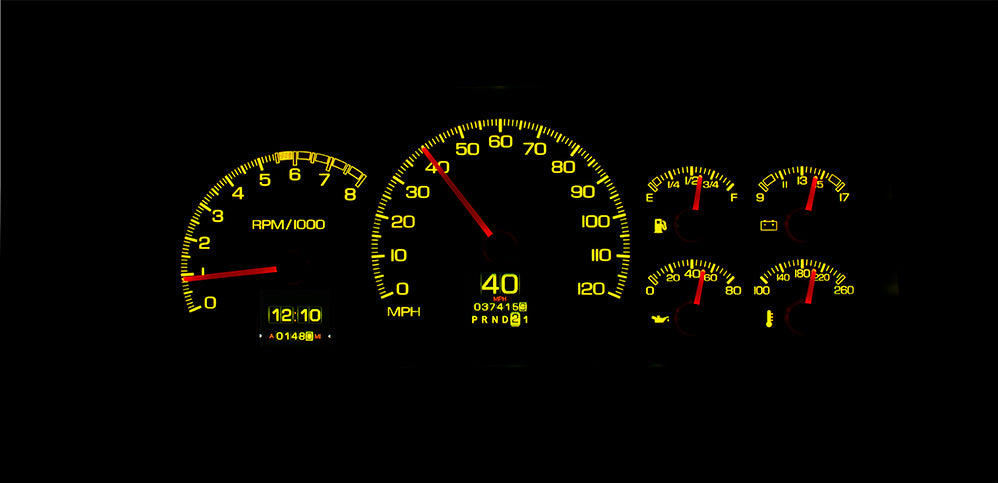

Revitalize the interior of your 1995-1998 Chevy or GMC Truck and SUV with the Dakota Digital RTX-95-PU-X Gauge System. This direct-fit package seamlessly blends classic OEM styling with cutting-edge, late-model features, specifically designed for the updated dashboard of the final GMT400 platform. While appearing stock at first glance, these gauges transform into a customizable, vibrant display with the flick of a switch.
Engineered and produced in Sioux Falls, South Dakota, the RTX series represents the pinnacle of aftermarket instrumentation. CNC machined housings encase advanced electronics, setting a new standard for precision, functionality, and ease of use.
Key Features:
-
OEM-Inspired Design: Retains the familiar aesthetic of your original dashboard, but with the added versatility of modern LED backlighting and a fully customizable digital interface.
-
Advanced Digital Display: High-definition TFT (Thin-Film Transistor) message centers provide crystal-clear, real-time data, fully customizable readouts, and comprehensive performance tracking.
-

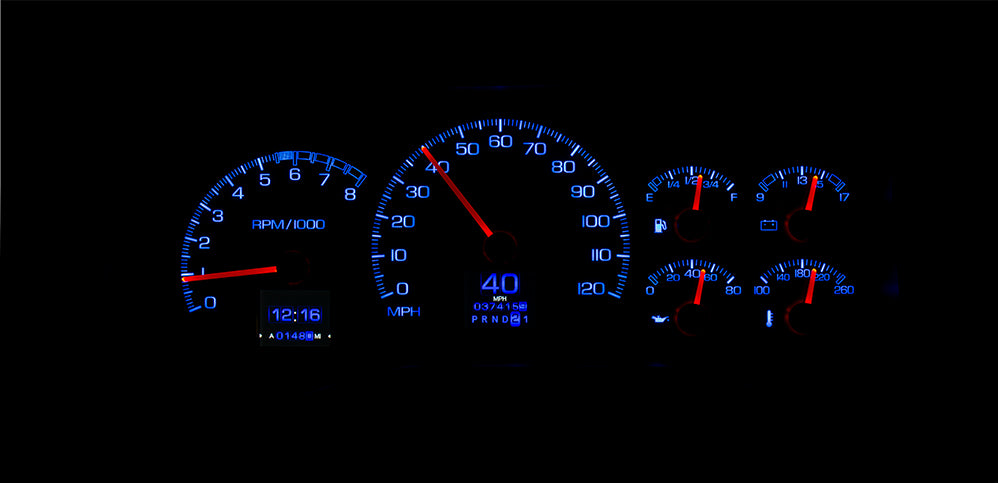

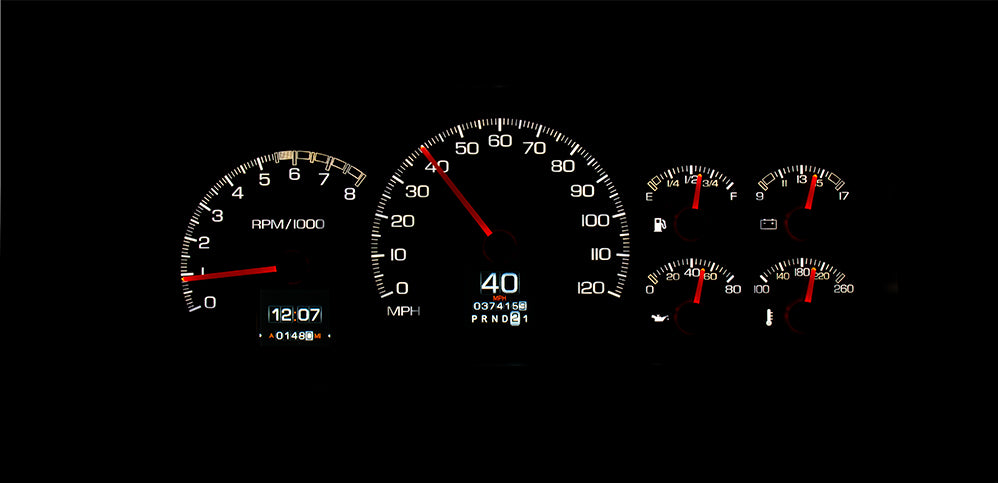

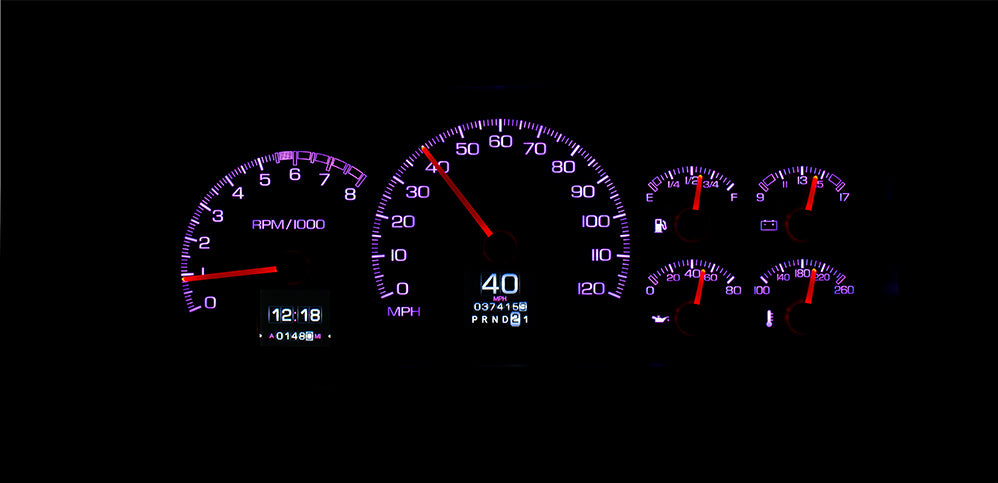

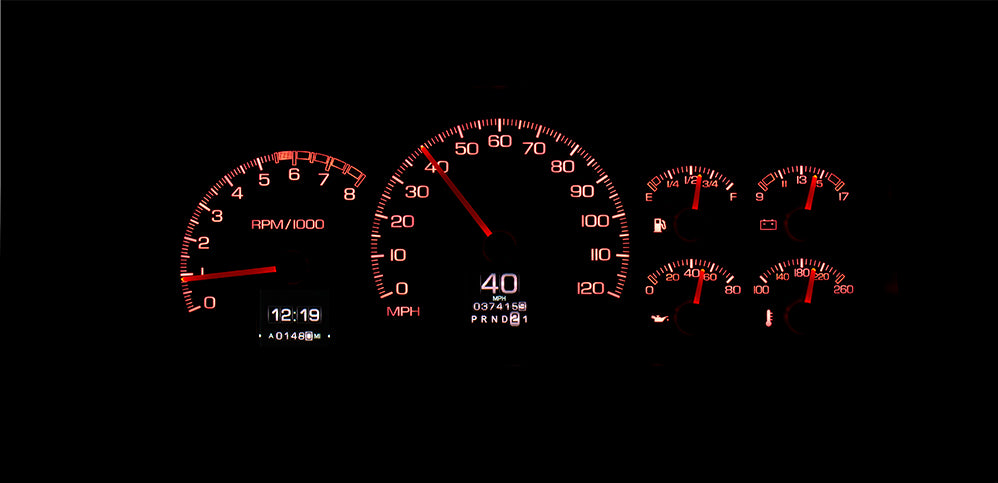

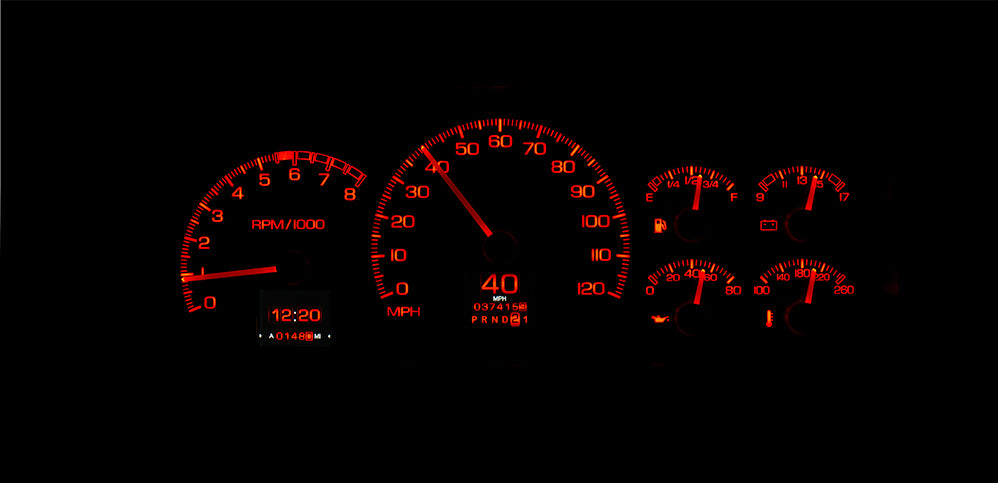

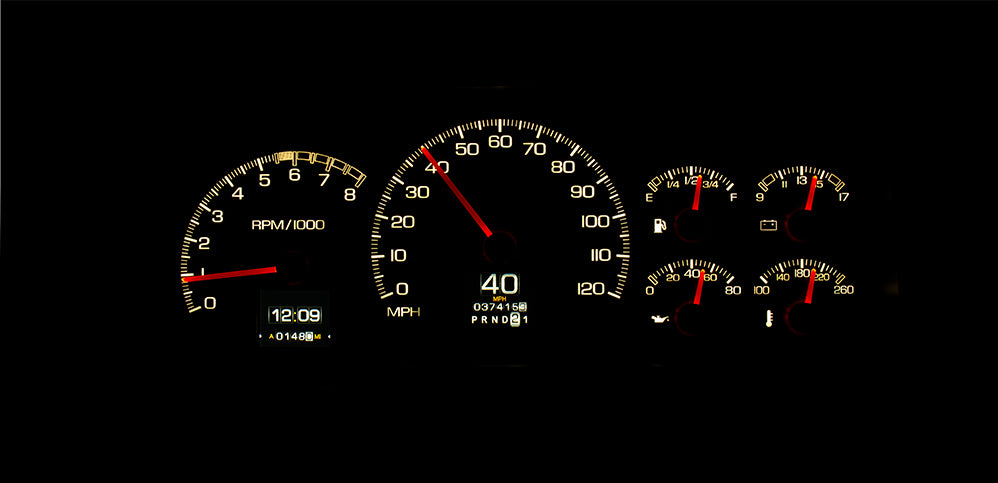

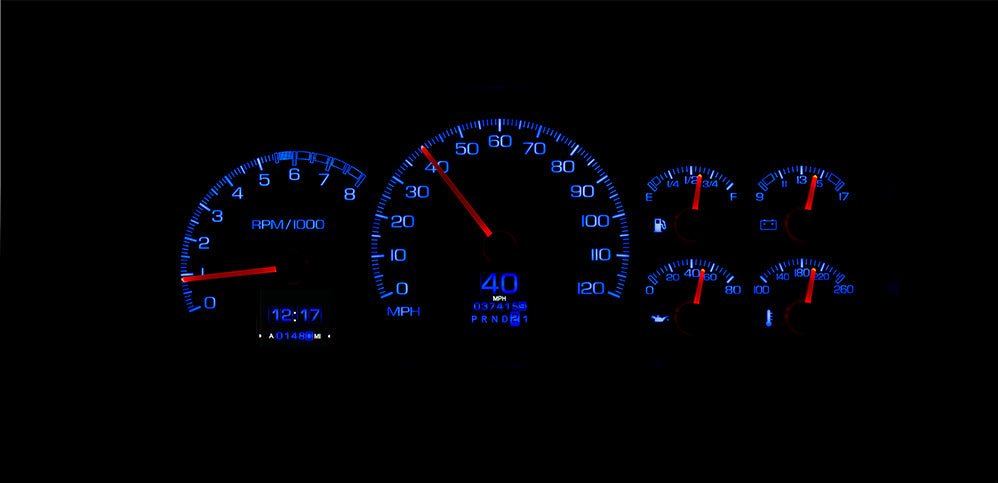

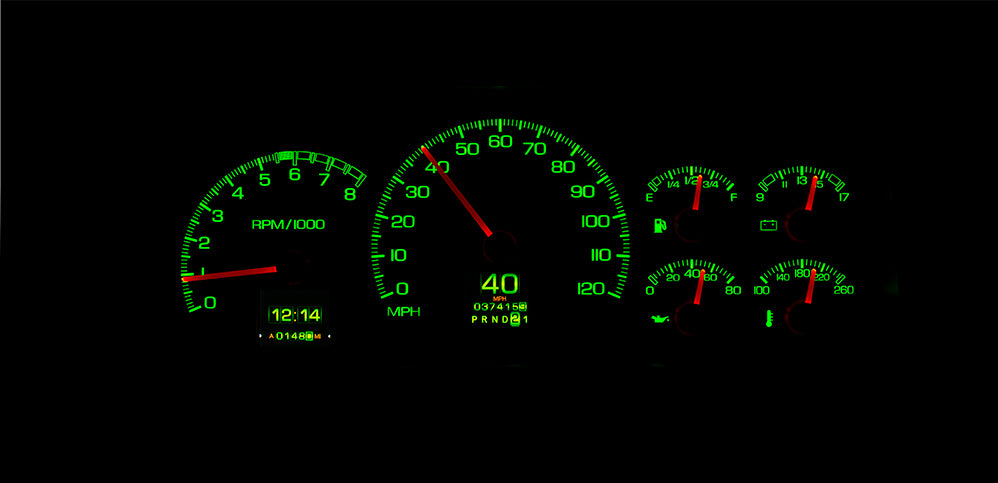

Customizable Lighting: Personalize your dash with over 30 user-selectable colors for the needles, gauge sweeps, and digital displays, plus 12 factory preset themes to choose from.
-
Built-in Indicators: Essential indicators are integrated, including turn signals, high beam, check engine, cruise control, parking brake, and more, keeping you informed at a glance.
-
Performance Tracking: Track your vehicle's performance with a 0-60 MPH timer, 1/4 and 1/8 mile times, top speed recall, and an RPM history log.
-
Smart Control & Calibration:
-
Pushbutton Control: Easily navigate settings and perform calibration using the included rocker switch.
-

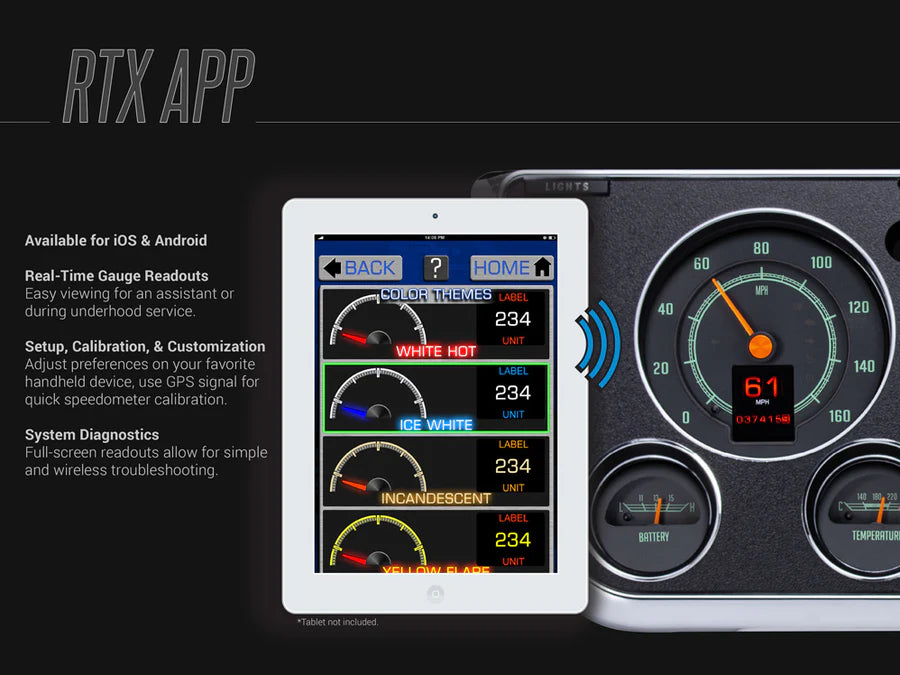

Mobile App Integration: Connect via Bluetooth to configure settings and monitor gauges directly from your smartphone.
-
Auto Calibration: Simplifies speedometer and fuel level settings with quick, minimal-effort adjustments.
Comprehensive Gauge Readouts:
-
Speedometer: Displays speeds from 0-120 MPH (optional metric version: 0-190 km/h).
-
Tachometer: Reads engine revolutions from 0-8,000 RPM.
-
Oil Pressure: Monitors oil pressure from 0-80 PSI.
-
Water Temperature: Displays coolant temperature from 100-260°F (optional metric: 40-120°C).
-
Fuel Level: Provides precise readings from Empty (E) to Full (F), with 1/4, 1/2, and 3/4 increments.
-
Voltmeter: Tracks your electrical system's voltage from 9-17 VDC.
Included Sensors & Components:
-
Water Temperature Sensor: 1/8" NPT with ground-isolated design and a 10 ft harness.
-
Oil Pressure Sensor: 1/8" NPT solid-state sensor with a 10 ft harness.
-
Cable-Driven Speed Sensor: Replaces OEM speedometer cables for accurate speed readings (optional relocation kit available).
-
Bushings: Includes adapter bushings for various NPT sizes (1/8", 1/4", 3/8", 1/2" NPT) and metric threads (12mm, 16mm x 1.5).

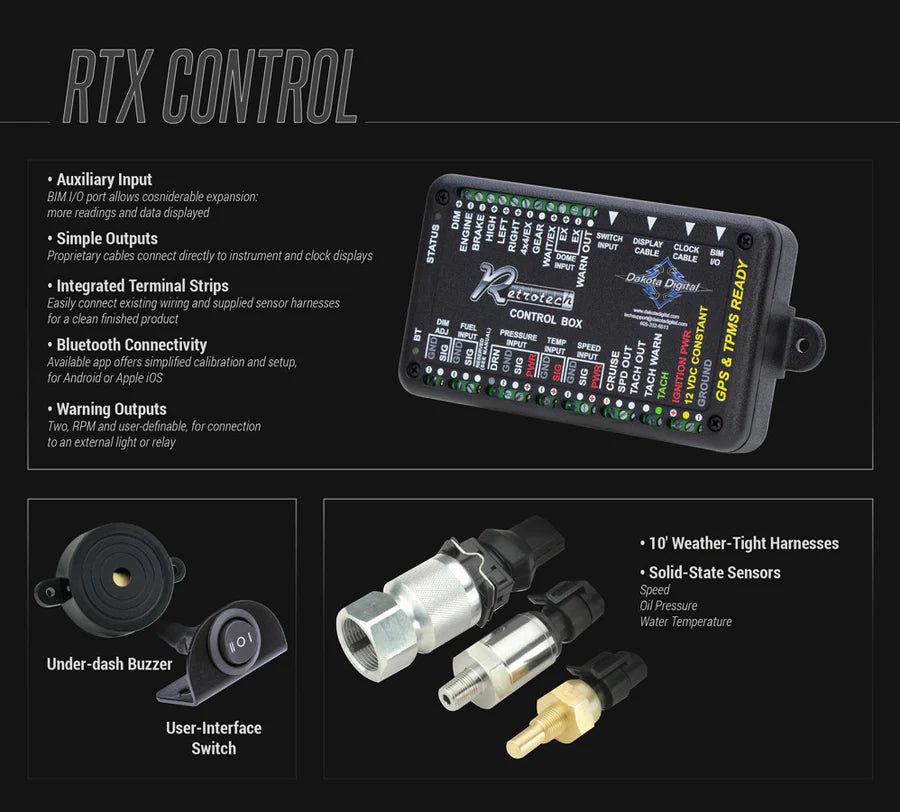

- A central control box makes installation and setup as user-friendly as possible.

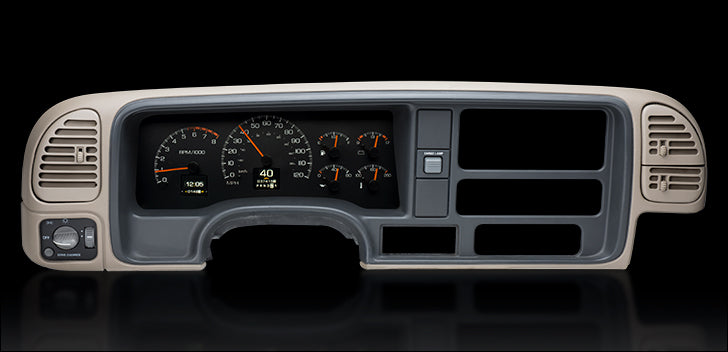

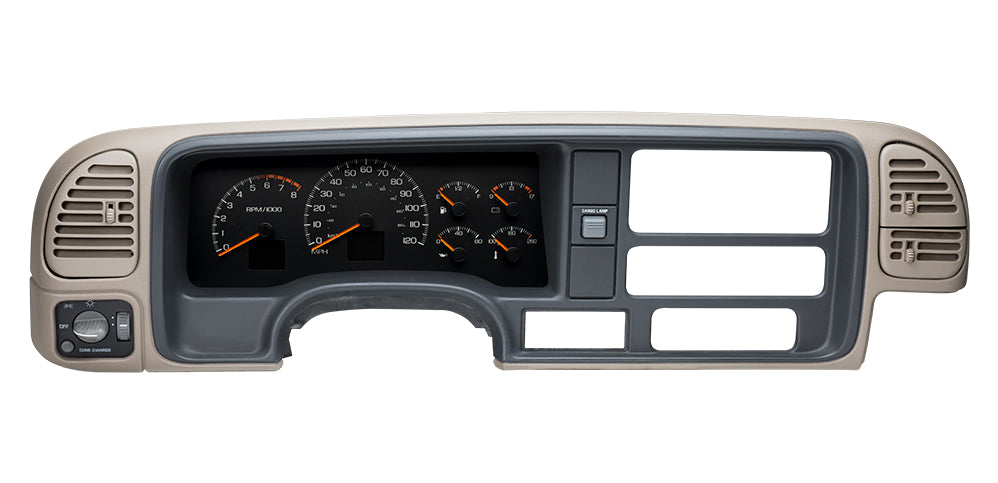

Note: Dash bezel not included; shown for visual/presentation purposes. The system utilizes your OEM or a reproduction style bezel.
Transform your 1995-98 Chevy/GMC Truck or SUV's interior with the Dakota Digital RTX Gauge System – combining classic aesthetics with unparalleled modern functionality.
