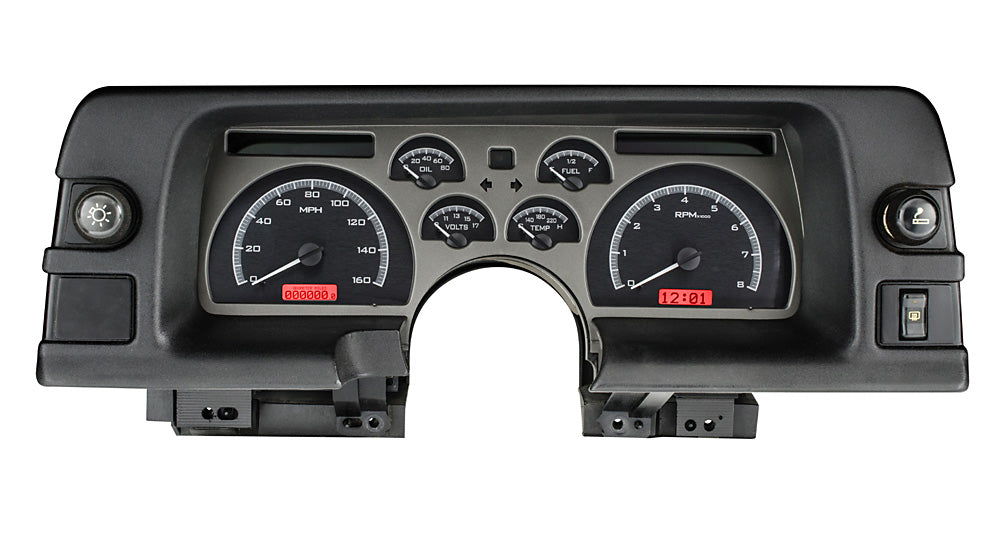

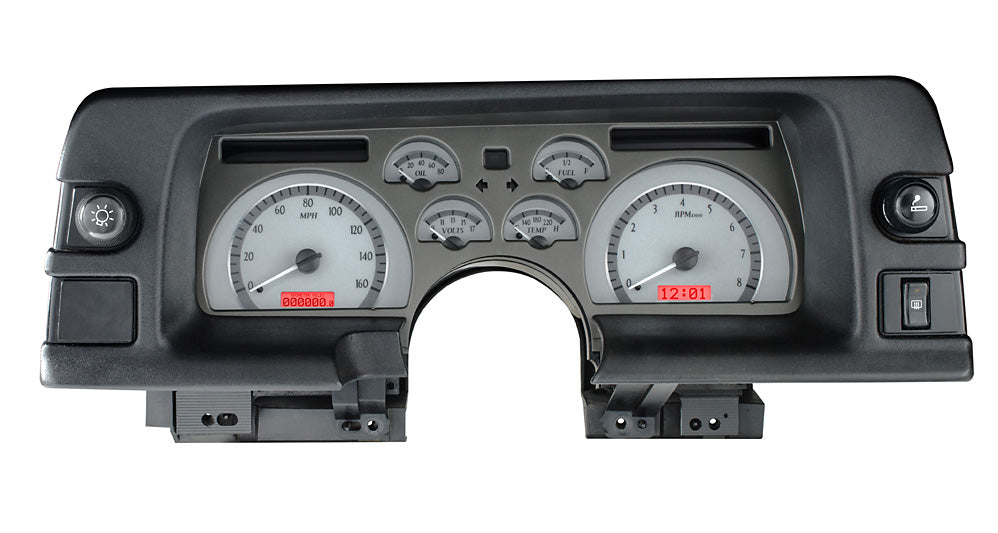

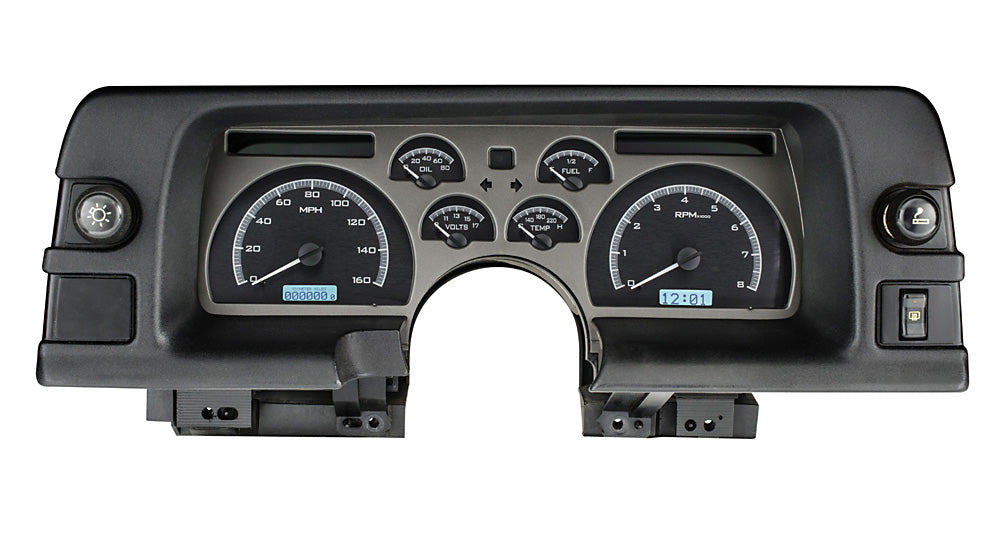

Post-big block and pre-LS, the third-gen Camaro is the middle-child of the F body legacy; they weren’t known for shutting down the same-year Mustangs, but they do handle like crazy and can look pretty cool with the right tweaks. Spruce up your dated 1990-92 dash with this direct bolt-in instrument system; it uses the stock gauge bezel and includes new sending units with harnesses for an easy installation. Even better, this package can be used with whatever powerplant you’re pushing.
Fully lit needles, backlit faces, and highly visible LCD message centers are a few of the things that you can see which set the VHX Series apart from yesterday’s traditional approach to instrumentation. A few of the features which you don’t normally see are the micro-controlled precision stepper motors, solid state sensors for unparalleled accuracy, and user-customizable display feedback, all supported by an unrivaled limited lifetime warranty which has become the standard for Dakota Digital instrumentation systems . Completely engineered and manufactured at our facility in Sioux Falls, South Dakota, the VHX Series has completely revolutionized the instrumentation industry!

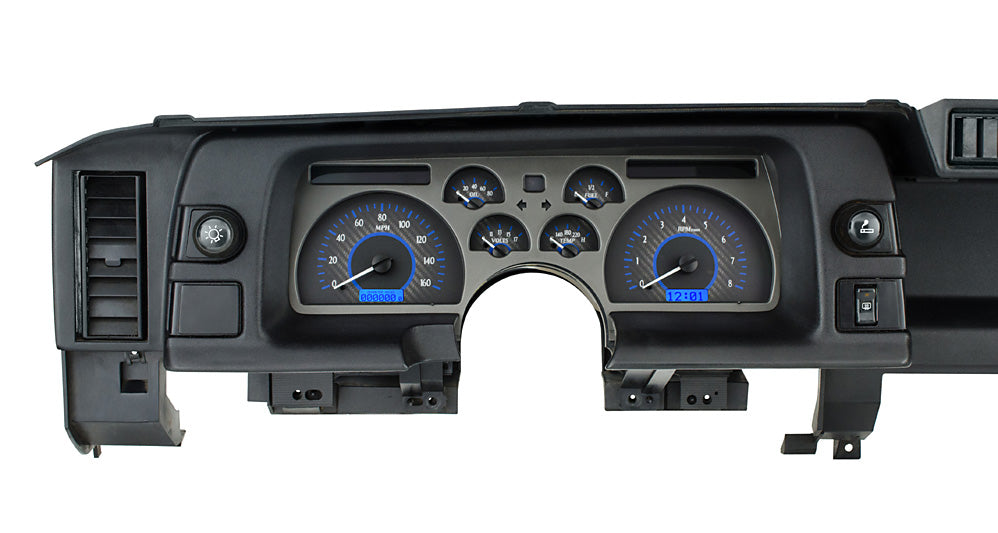

*Uses factory bezel/ trim/ fascia (not included. For demonstration purposes only)*
·0 -160 MPH (optional metric version 0- 255 kmh)
·0- 8,000 RPM
·0- 80 psi
·100- 260ºF (optional metric version 40- 120ºC)
·E, 1/4, 1/2, 3/4, F
·9- 17 VDC

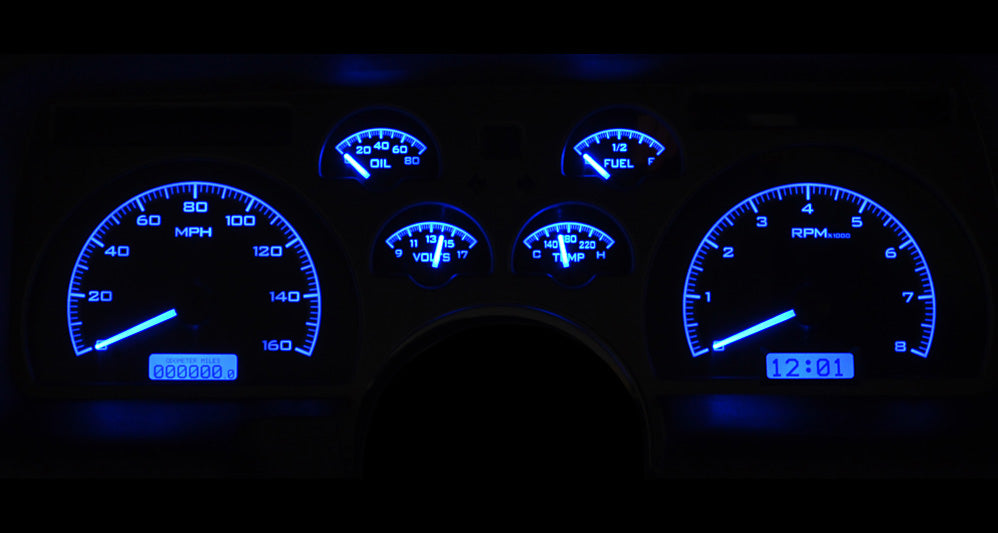

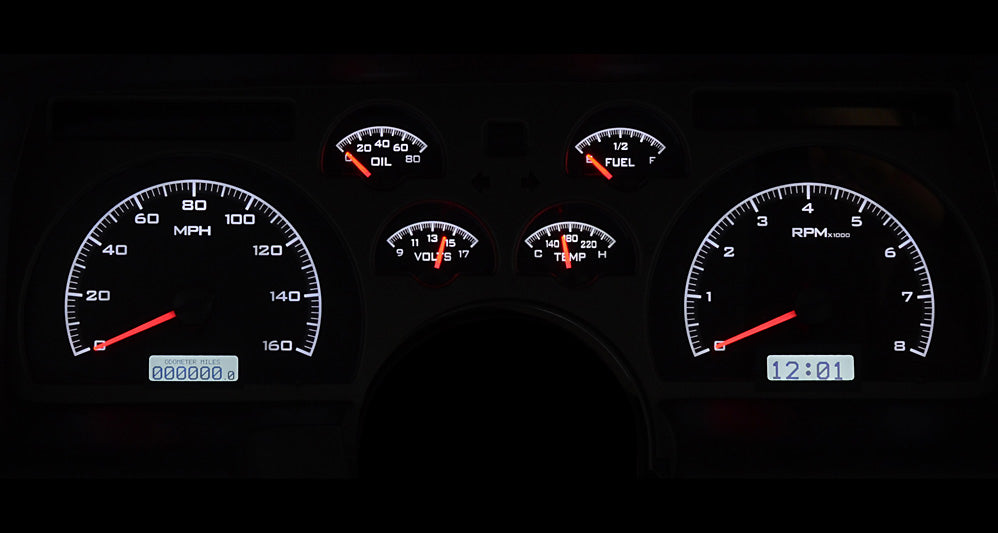

·Back lit technology is popular with performance instrumentation due to precise lighting allowing you see what is truly important when you really need it at a quick glance. Each number, tick mark, annunciator, needle, indicator and digital message center is lit by a series of LEDs behind the gauge face.
Digital Message Centers
·Odometer (One time user settable, Million Mile)
·Dual (A/B) Trip Meter (0- 9,999.9)
·Clock (12 hour)
·0- 60 MPH Timer (0- 100 kmh)
·1/4 mile time
·1/4 mile end speed (trap speed)
·High speed recall
·High RPM recall
·Speedometer (0- 255 MPH/kmh)
·Tachometer (0- 9,900 RPM)
·Oil Pressure (0-100 psi displayed in 1 psi increments)
·Water Temperature (100- 300ºF/ 40- 150ºC displayed in 1 ºF/ºC increments)
·Voltmeter (9- 17 VDC)
·Fuel Level (0-99% full)
·Auto-contrasting LCD display for optimal view in the brightest of sunlight.
·LED backlit at night to match/ complete the look at night.
·Turn Signals (Left/ Right)
·Cruise Control (On/ On & Engaged when vehicle is equipped)
·Gear Position (Optional GSS-3000 sensor required)
·4 x 4 (When vehicle is equipped)
·Wait to Start (When vehicle is equipped)
