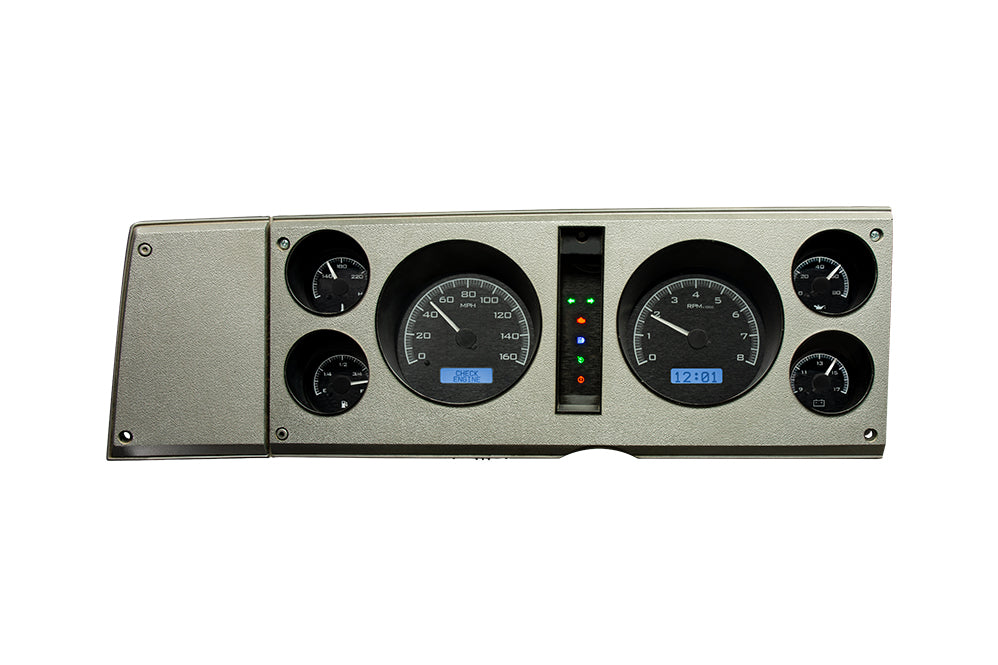

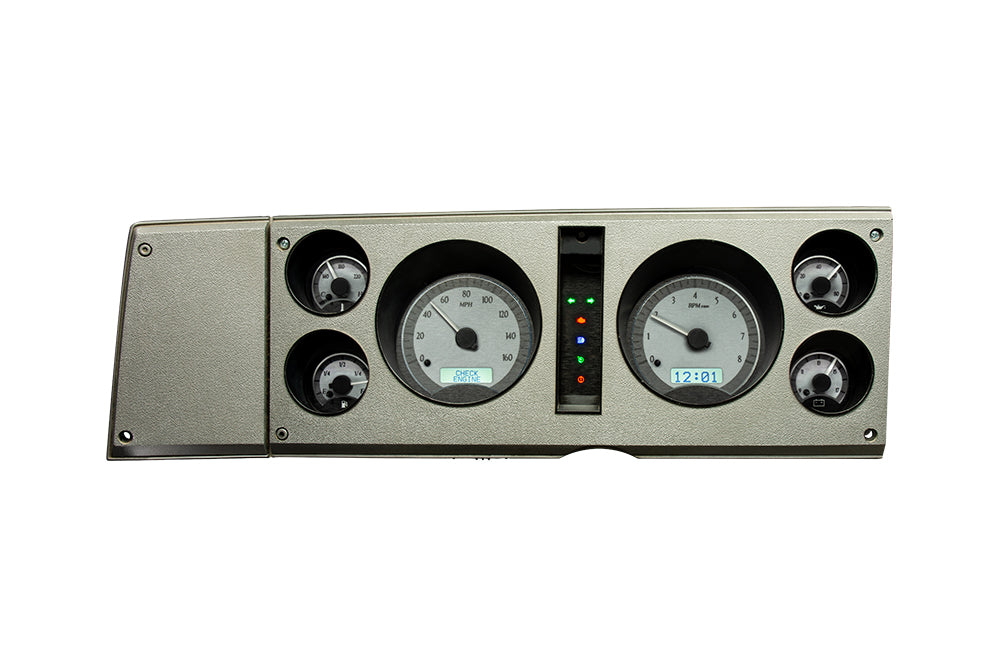

The 1982–1985 Chevy S-10 & GMC S-15 Dakota Digital VHX Gauge System transforms the early S-Series dash with modern micro-controlled precision and pro-touring styling. Designed as a direct drop-in replacement, this full 6-gauge system installs into your truck's factory dash location inside the OEM or reproduction instrument bezel.

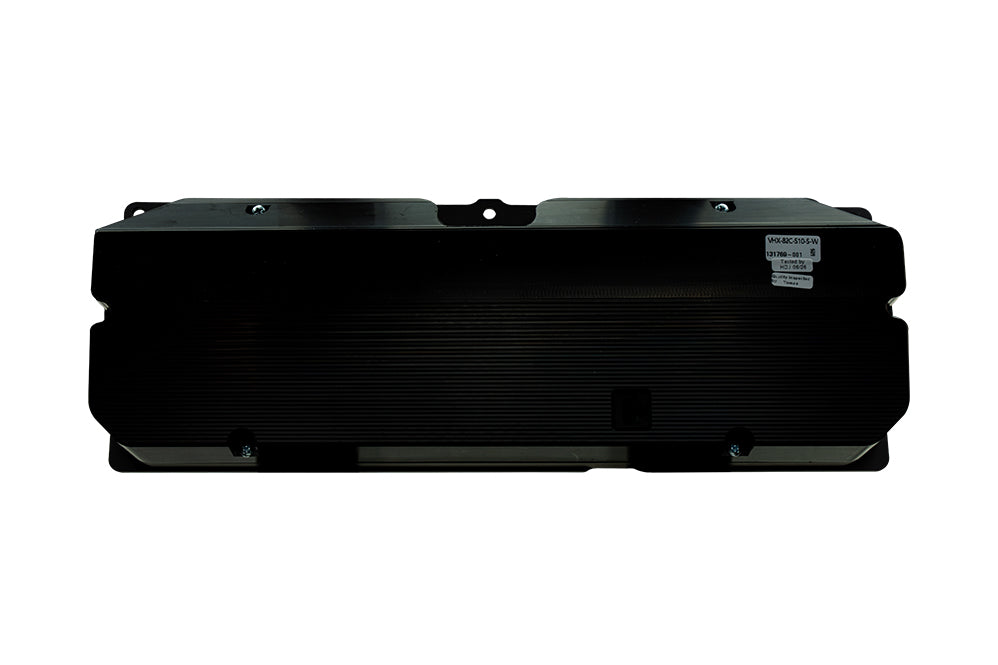

Constructed with a CNC-machined billet aluminum rear housing and optical-grade polycarbonate lenses, the VHX series pairs classic analog sweeping hands with dual, highly readable digital LCD message centers for real-time performance tracking and engine telemetry.
Key Features & Modern Technology

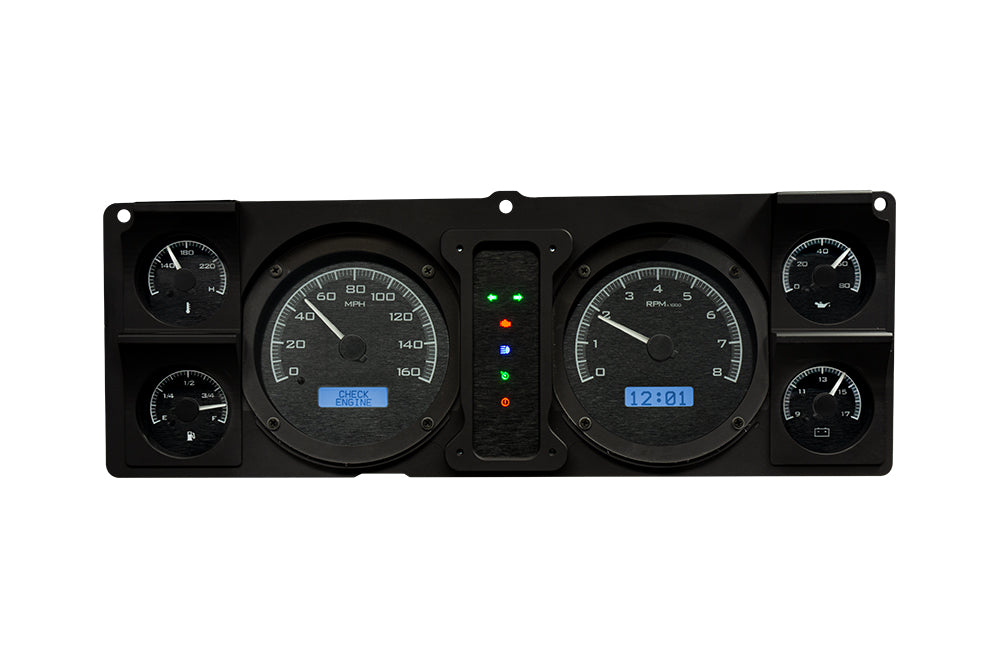

Direct-Fit Engineering: Fully replaces the original factory instrument cluster and lens assembly while retaining the stock dashboard trim bezel.
Micro-Controlled Stepper Motors: Precision internal stepper motors drive all six analog needles for rock-solid pointer accuracy without needle bounce.

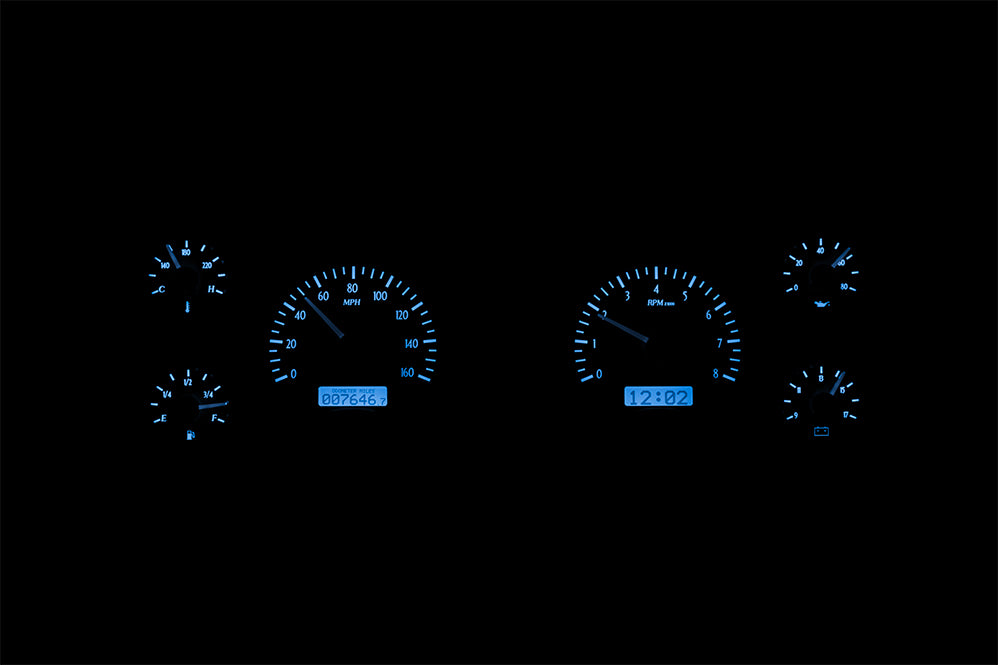

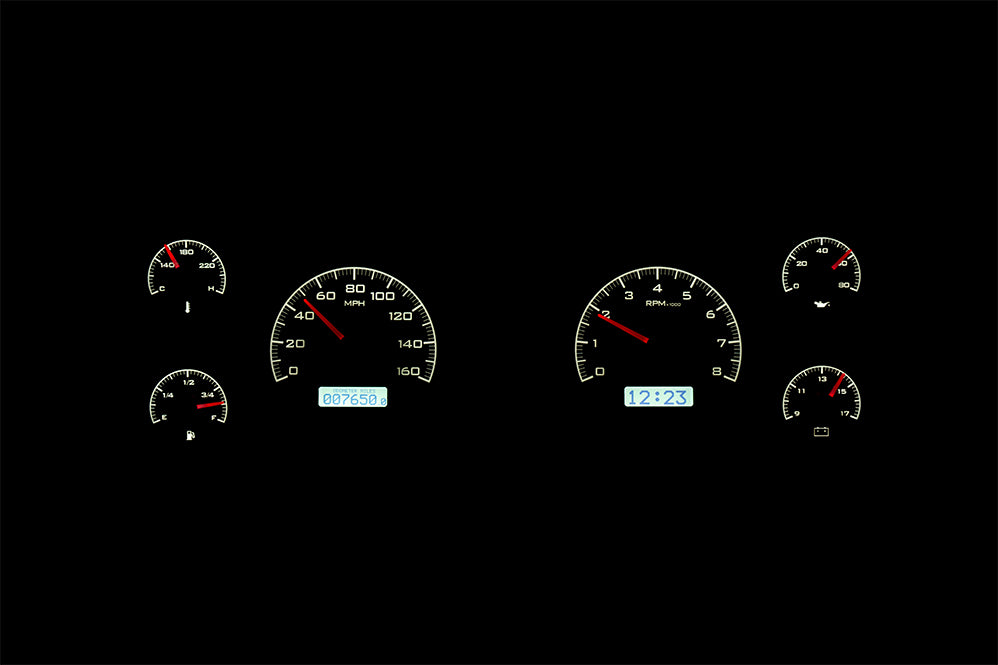

Dual LCD Digital Message Centers: High-contrast, auto-adjusting LCD screens display real-time engine vitals, trip logs, clocks, and performance benchmark timers.
Comprehensive Solid-State Sensors: Includes solid-state oil pressure and water temperature senders for long-term accuracy and simple wiring.
Integrated LED Indicators: Features built-in indicators for turn signals, high beams, check engine, parking brake, cruise control, 4x4 engagement, and wait-to-start (diesel models).
Made in the USA: Designed, engineered, and manufactured at Dakota Digital's facility in Sioux Falls, South Dakota, backed by an unrivaled Limited Lifetime Warranty.
Technical Specification Matrix
Feature / Metric
Technical Specification Detail
Manufacturer
Dakota Digital
Product Series
VHX Direct-Fit Series
Vehicle Application
1982–1985 Chevrolet S-10, GMC S-15 Pickups, and S-Series Blazers / Jimmys
Factory Cluster Fitment
Fits models with stock oil/temp gauges and without factory tachometer
Adjustable inputs for stock GM senders (0–90 ohm) or aftermarket units
Warranty
Manufacturer Limited Lifetime Warranty
Analog Gauge & Digital Message Range Breakdown
Instrument Gauge
Analog Sweep Range
Digital LCD Display Range
Speedometer
0 to 160 MPH (Optional Metric 0–255 km/h)
0 to 255 MPH / km/h
Tachometer
0 to 8,000 RPM
0 to 9,900 RPM
Oil Pressure
0 to 80 PSI
0 to 100 PSI (1 PSI increments)
Water Temperature
100°F to 260°F (Optional Metric 40–120°C)
100°F to 300°F / 40°C to 150°C
Voltmeter
9 to 17 VDC
9 to 17 VDC
Fuel Level
E, 1/4, 1/2, 3/4, F
0% to 99% Full
🛠️ Installation & Fitment Notes:

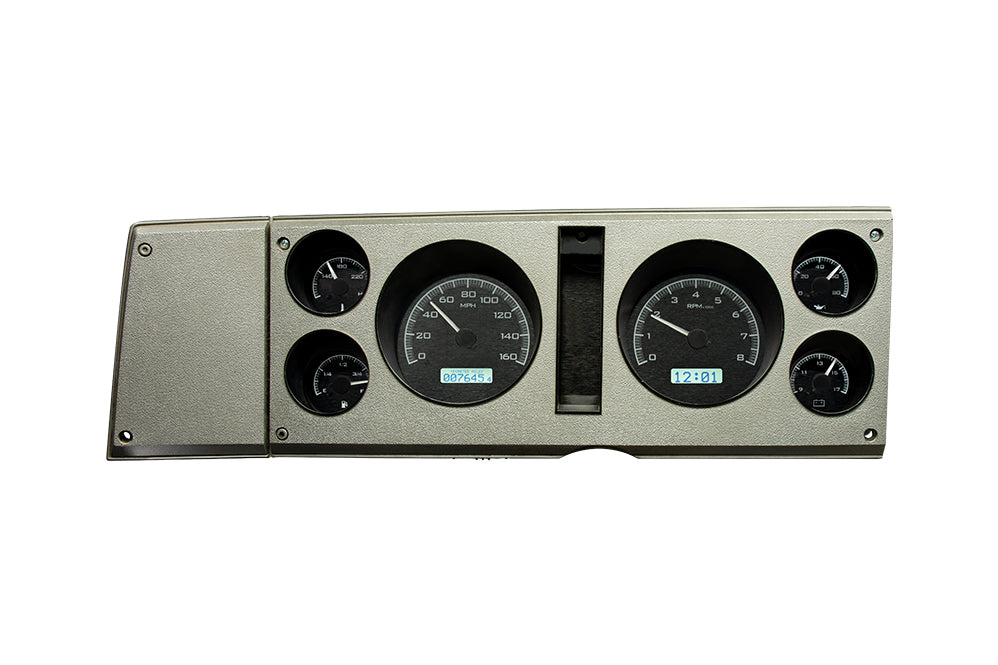

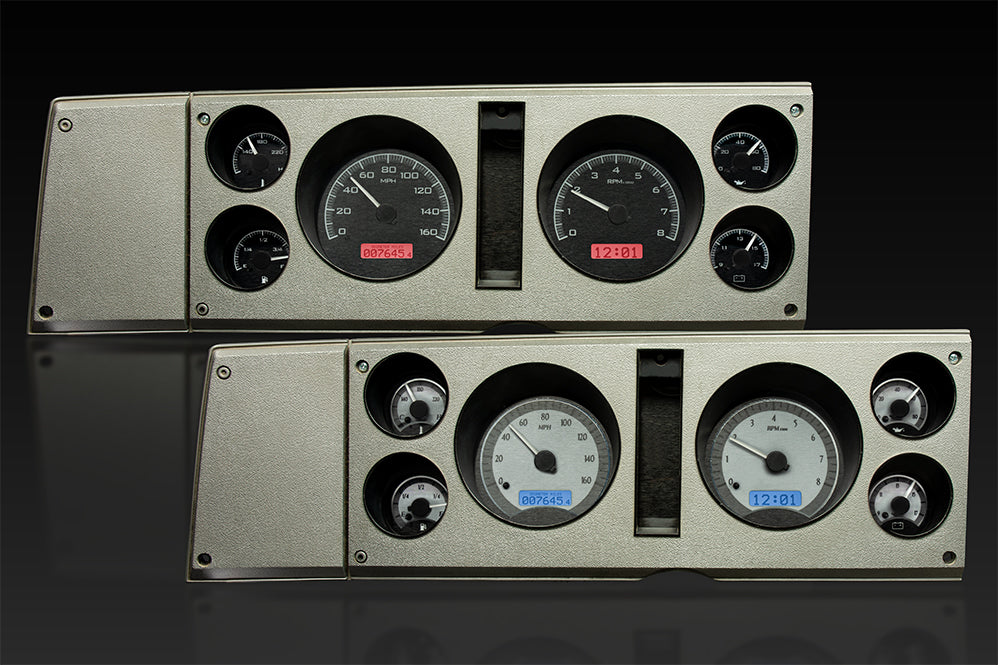

Bezel Notice: The factory dash bezel is not included; this system is designed to reuse your stock original or an aftermarket reproduction dash bezel.
Gear Position Display: Displaying automatic transmission gear selection (PRNDL) on the LCD screen requires the optional Dakota Digital DAK GSS-3000 gear position sensor (purchased separately).
