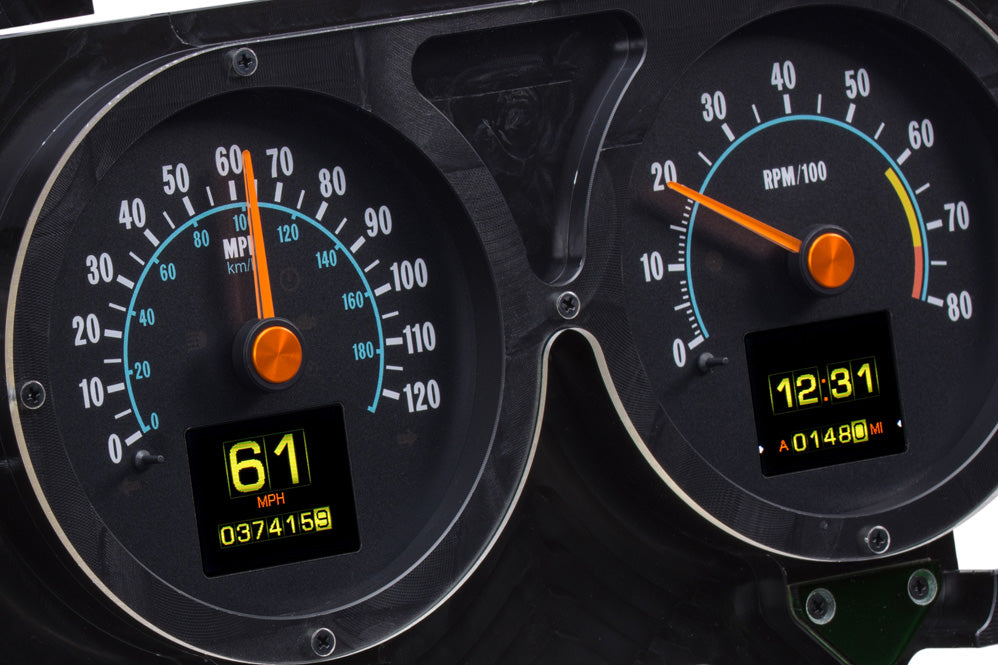

Paying tribute to all three gauge designs available over the years (1973-75, 1976-78, 1979-87 Pickups and '73-91 Blazer, Jimmy and Suburban), the RTX series maintains the beloved Chevy and GMC square-body look while bringing in late-model elements. A bolt-in affair with your stock or aftermarket front bezel (not supplied), the twin TFT message centers give the look of a vintage tumbler odometer, but can be expanded with auxiliary readings to keep you informed. Retains stock gear-indicator and the factory turn signal locations are now LED-lit.

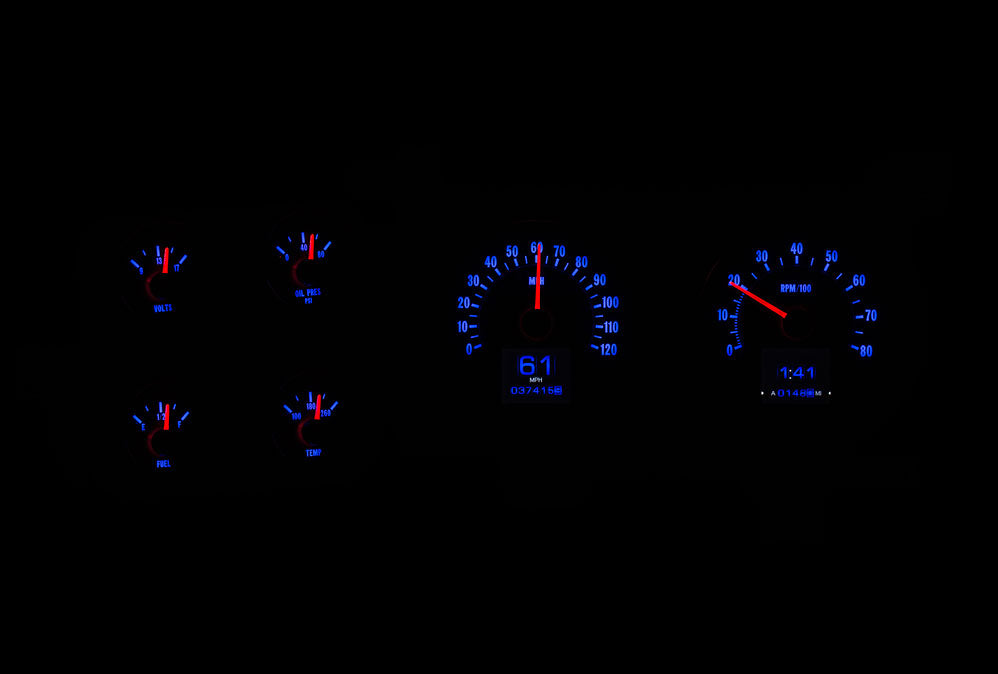

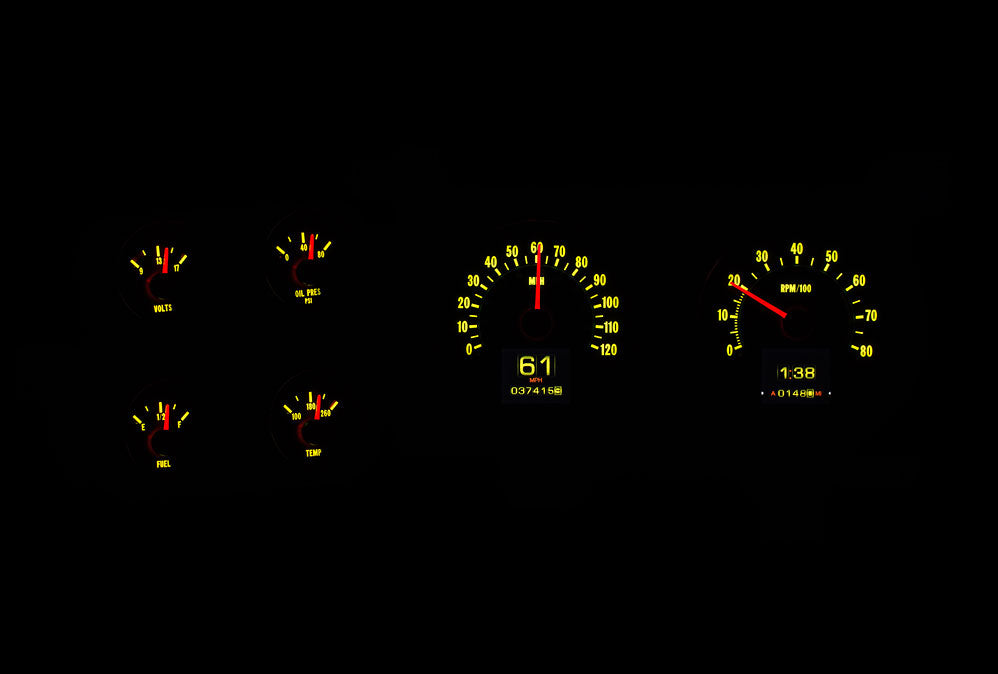

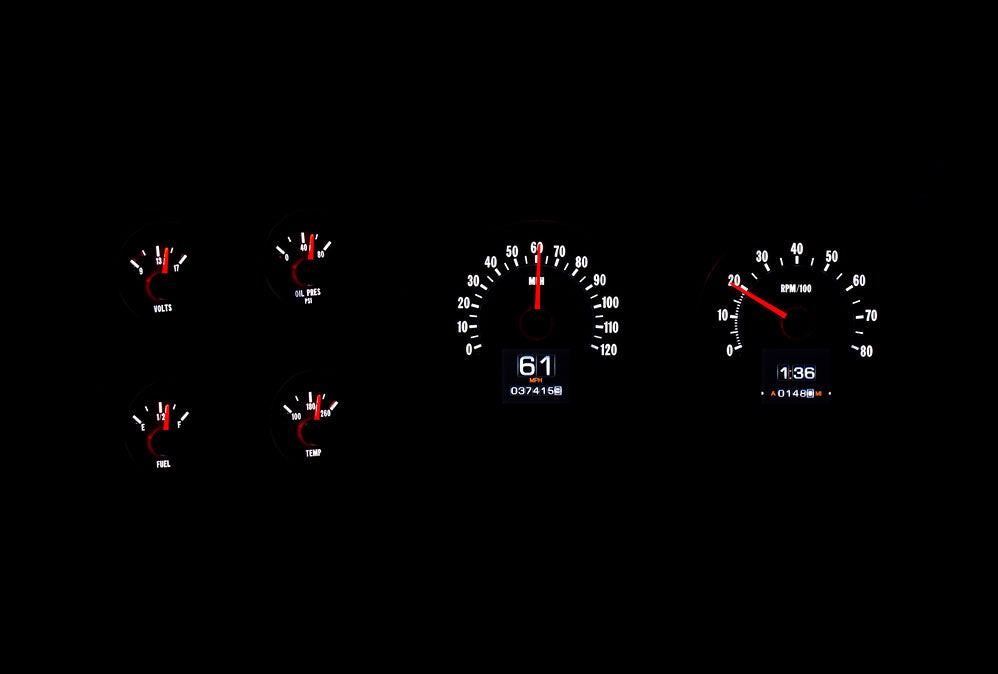

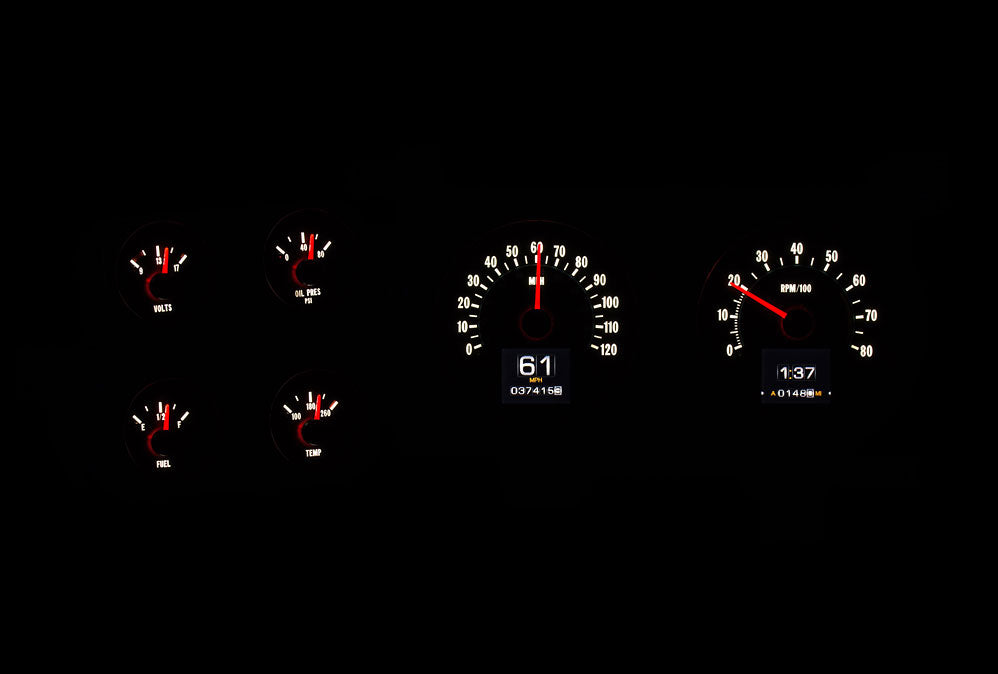

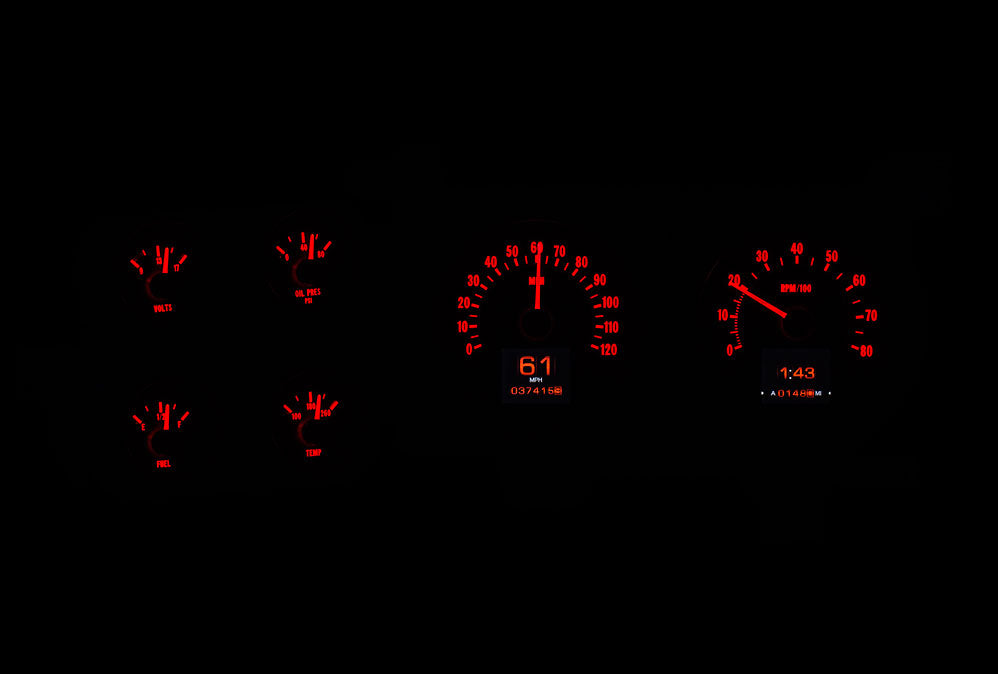

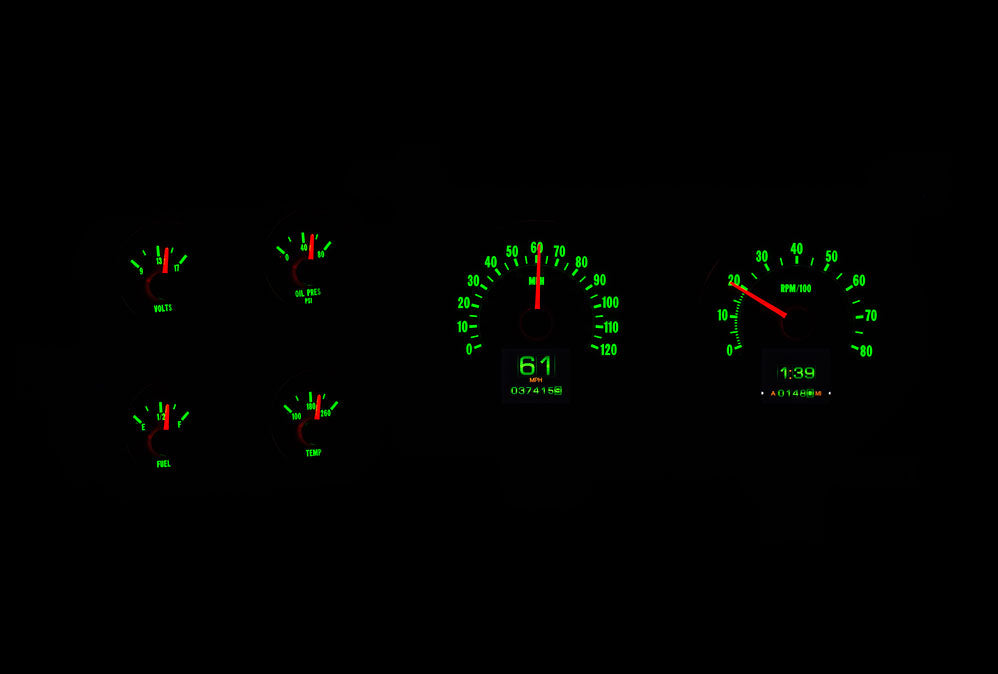

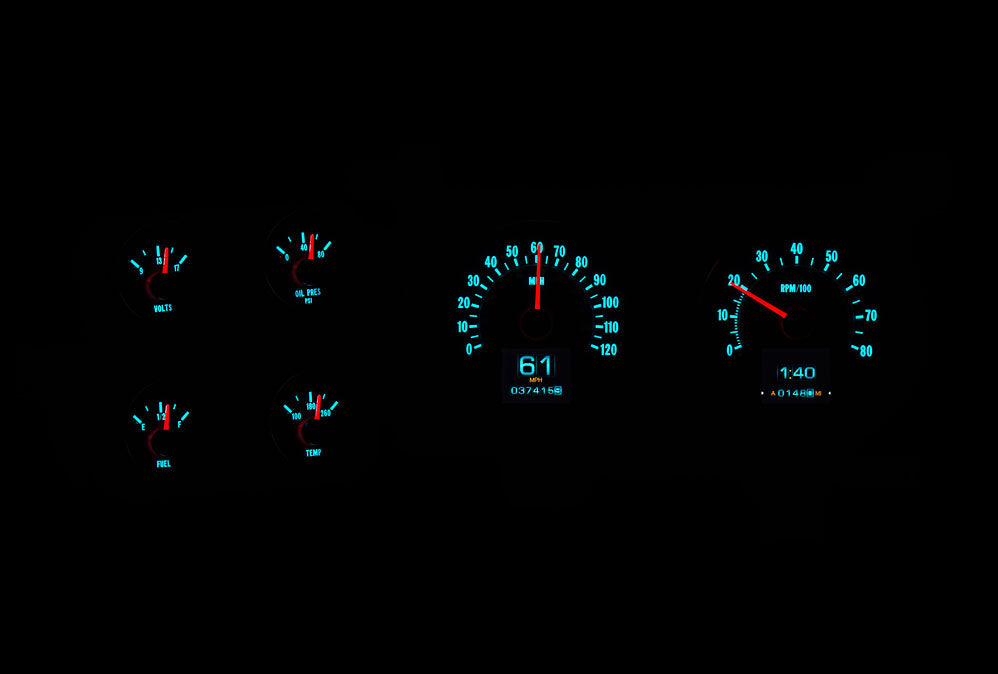

The RTX series is the latest from Dakota Digital, focused on retaining that stock look without sacrificing the late-model features you love. Every effort has been put forth to incorporate OEM design elements regarding the layout, face styling and indicators. A casual glance may dismiss these as original equipment, but once you hit the switch and the LED backlighting comes on in your favorite color scheme, all doubts will be removed.

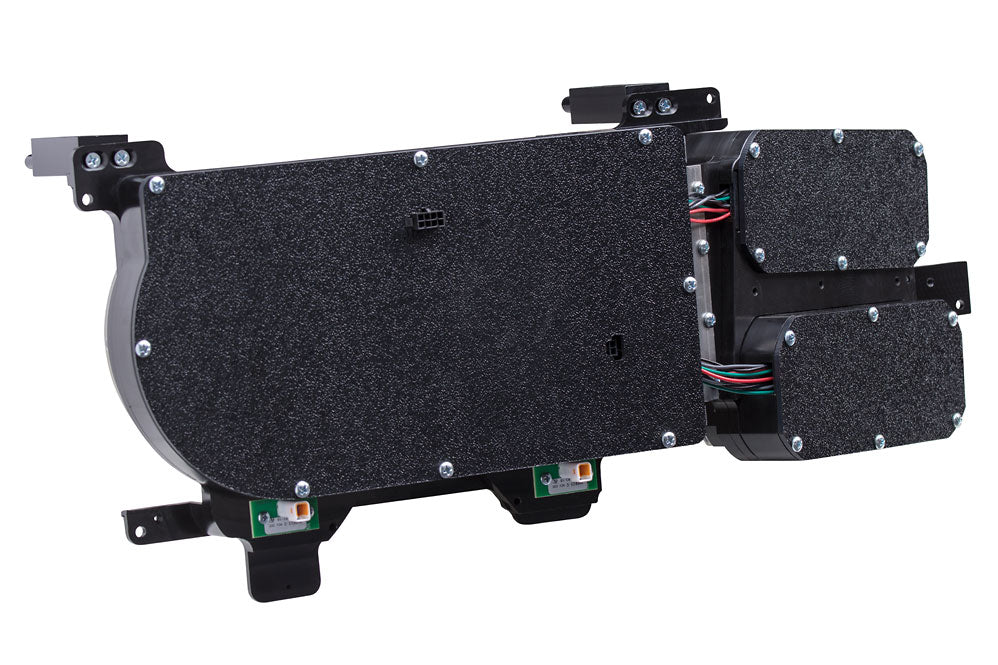

Starting from scratch, CNC machined housings are filled with electronics designed and built in-house, helping Dakota Digital once again raise the bar for aftermarket instrumentation. The high-definition TFT message centers can be fully configured to display just about any piece of information needed. As you’ve come to expect from Dakota Digital, the RTX series utilizes a central control box to make installation and setup as easy as possible. Click the tabs below for a more in-depth look at the RTX series!

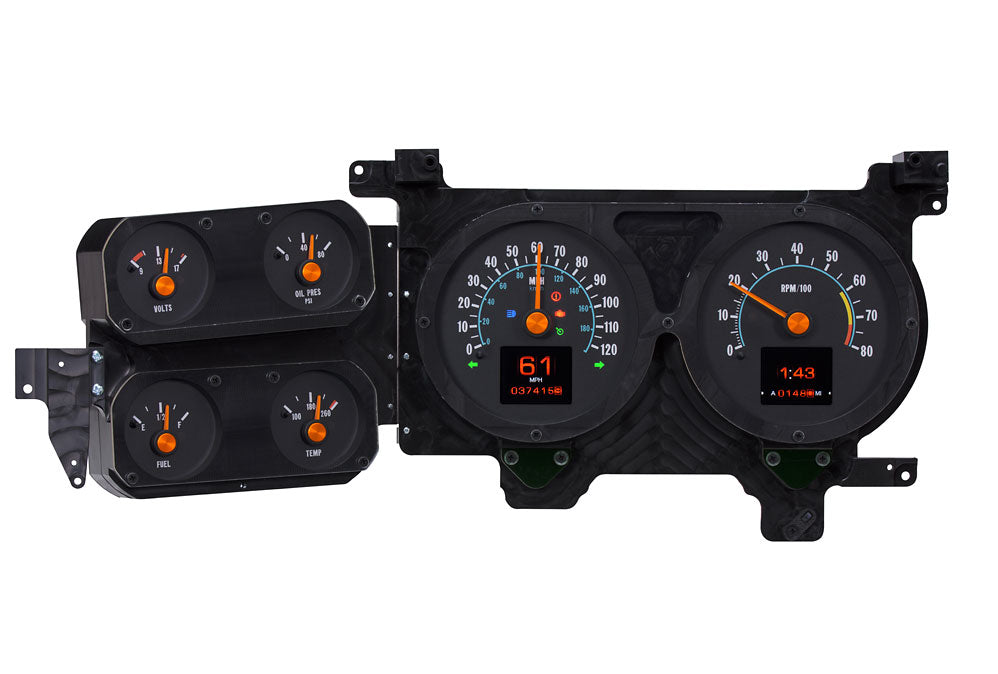

*Bezel not included, shown for visual/presentation purposes.
System uses OEM or reproduction style bezel*
·0 -120 MPH (optional metric version 0- 200 kmh)
·0- 8,000 RPM
·0- 80 psi
·100- 260ºF (optional metric version 40- 120ºC)
·E, 1/4, 1/2, 3/4, F
·9- 17 VDC
Digital Message Centers
·Odometer (One time user settable, Million Mile)
·Dual (A/B) Trip Meter (0- 9,999.9)
·Clock (12 hour)
·Estimated Range/ Miles to Empty
·0- 60 MPH Timer (0- 100 kmh)
·1/4 and 1/8 mile time
·1/4 and 1/8 mile end speed (trap speed)
·High speed recall
·High RPM recall
·Turn Signals (Left/ Right)
·Cruise Control (On/ On & Engaged when vehicle is equipped)
·Gear Position (Optional GSS-3000 sensor required)
·4 x 4 (When vehicle is equipped)
·Wait to Start (When vehicle is equipped)
·Two Auxiliary input indicators with user-programmable labels
·Each analog gauge sweep contains a red LED indicator for quick notice of a warning condition (except speedometer)
