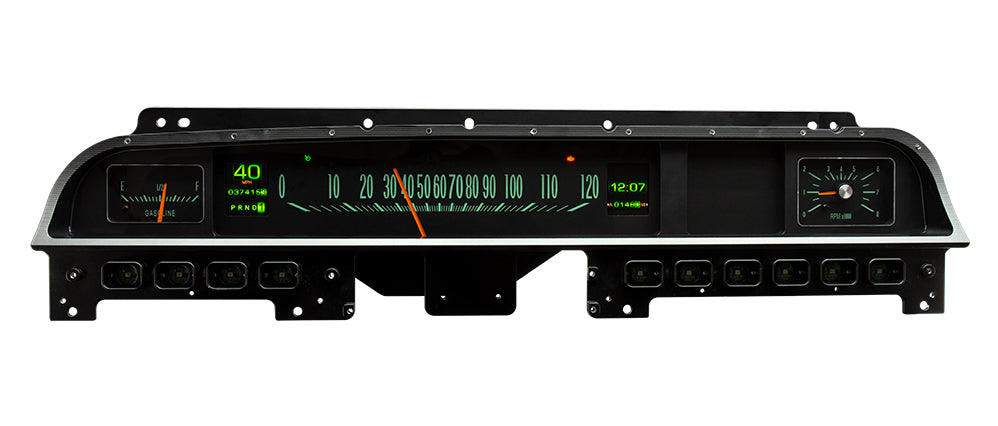

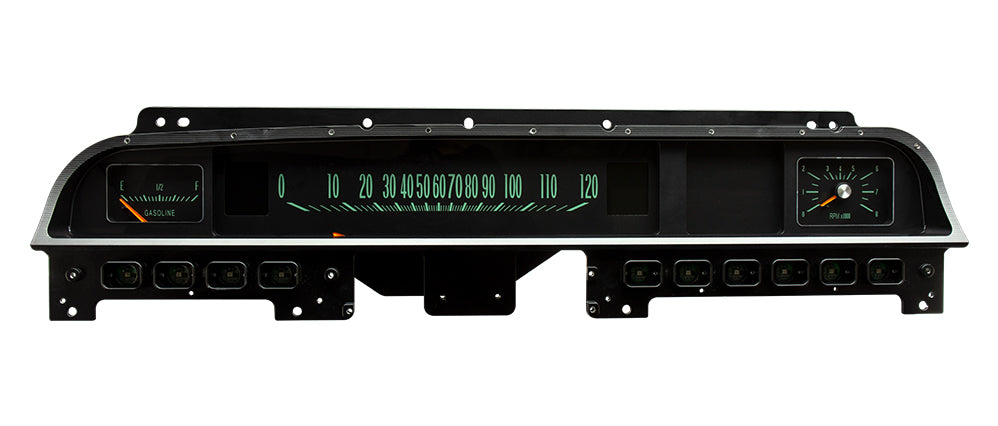

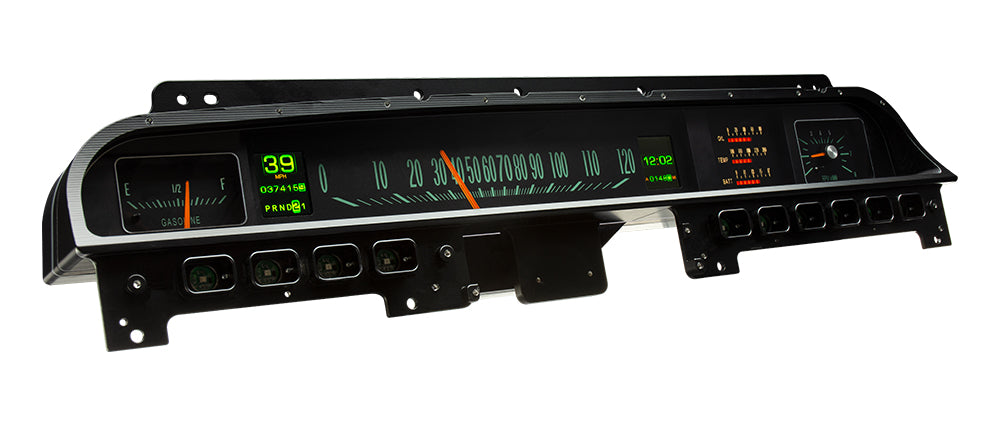

Chevrolet called them “luxury sedans,” and others called them “land yachts.” The 1969-70 Chevy Caprice and Impala are some of the most comfortable cruisers to ever wear the Chevy bowtie. With their woodgrain sides and plush, spacious interiors, the only thing missing is the RTX gauge system from Dakota Digital. This package retains the stock look you love while adding a full suite of late-model features.
At a glance, these gauges may be mistaken for original equipment, but once you flip the switch and the LED backlighting comes to life in your favorite color, all doubts will vanish. Each system features CNC machined housings and in-house designed electronics, all controlled by a central control box to make installation and setup as easy as possible.
Gauge Readouts
The RTX system provides both traditional analog gauges and modern digital bar graphs for an ideal combination of classic style and modern functionality.
Analog Gauges
-
Speedometer: 0-120 MPH (optional metric version 0-200 km/h)
-
Water Temperature: 100-260°F (optional metric version 40-120°C)
-
Fuel Level: E, 1/4, 1/2, 3/4, F
Digital Bar Graph Gauges
-
Tachometer: 0-8,000 RPM
-
Oil Pressure: 0-80 psi
-
Voltmeter: 9-17 VDC
Digital Message Centers & Performance Meters

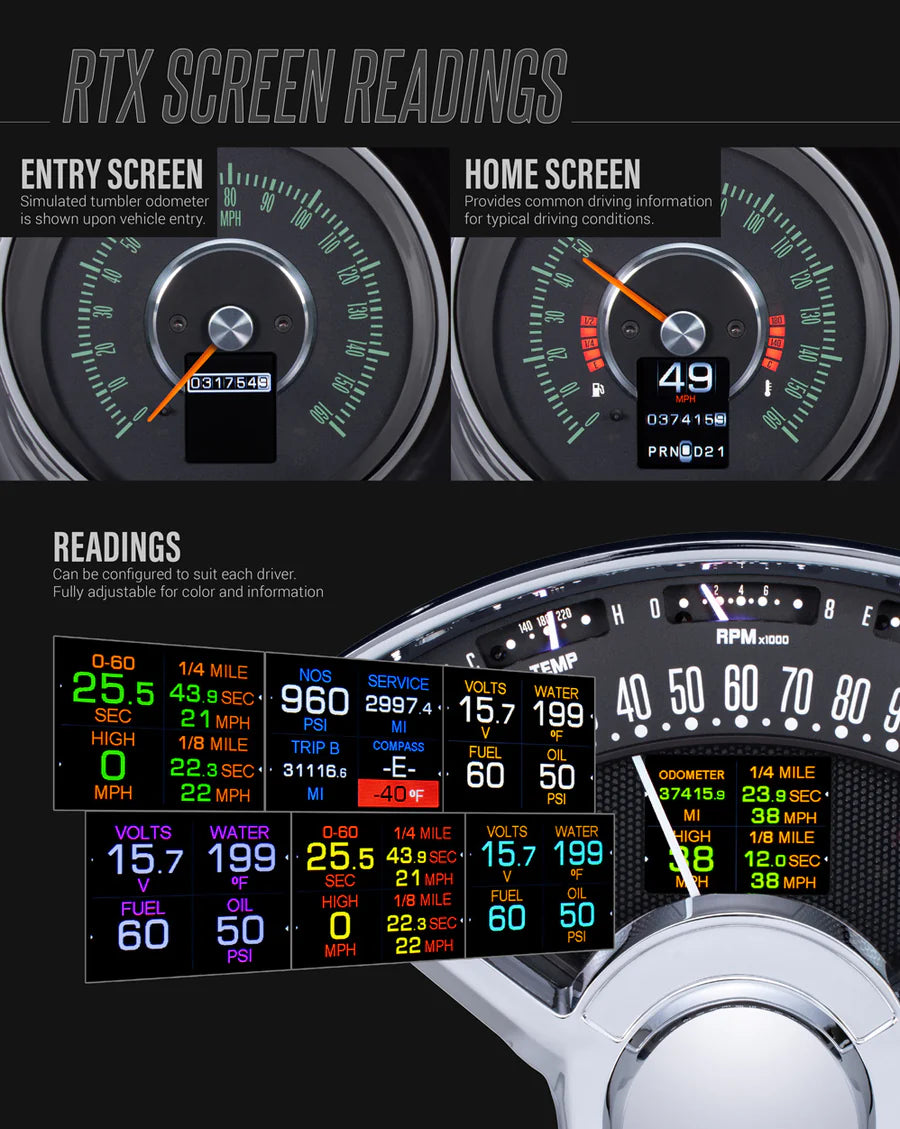

The high-definition TFT message centers can be fully configured to display a wealth of information.
Standard Displays
-
Odometer (one-time user settable, million-mile)
-
Dual (A/B) Trip Meter (0-9,999.9)
-
Clock (12 hour)
-
Estimated Range / Miles to Empty
Performance Meters
Built-in Indicators
The system includes a wide array of integrated indicators to keep you informed at a glance.
-
Turn Signals (Left/Right)
-
High Beam
-
Check Engine
-
Parking Brake
-
Cruise Control (On/On & Engaged when vehicle is equipped)
-
Gear Position (optional GSS-3000 sensor required)
-
4x4 (when vehicle is equipped)
-
Wait to Start (when vehicle is equipped)
-
Two Auxiliary input indicators with user-programmable labels
A red LED indicator is also built into the sweep of each analog gauge (except the speedometer) to provide quick notice of a warning condition. Note that not all OEM indicator lamp functions will be replaced.
Lighting Technology
-

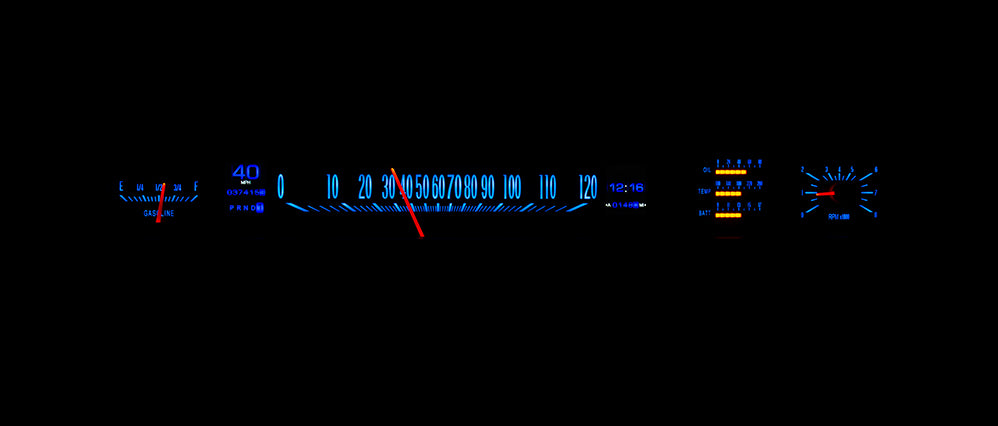

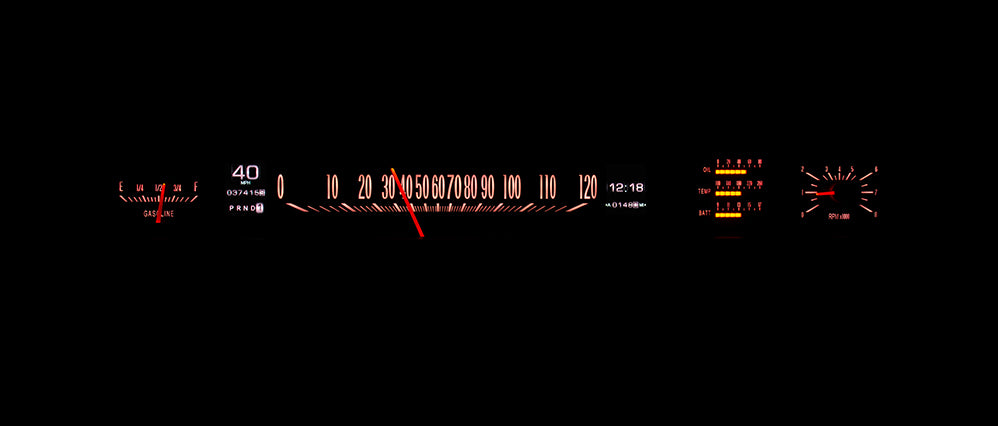

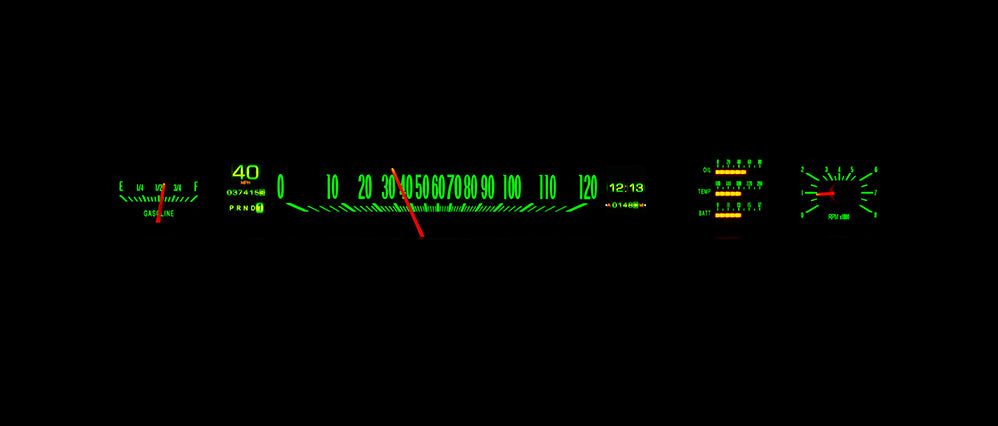

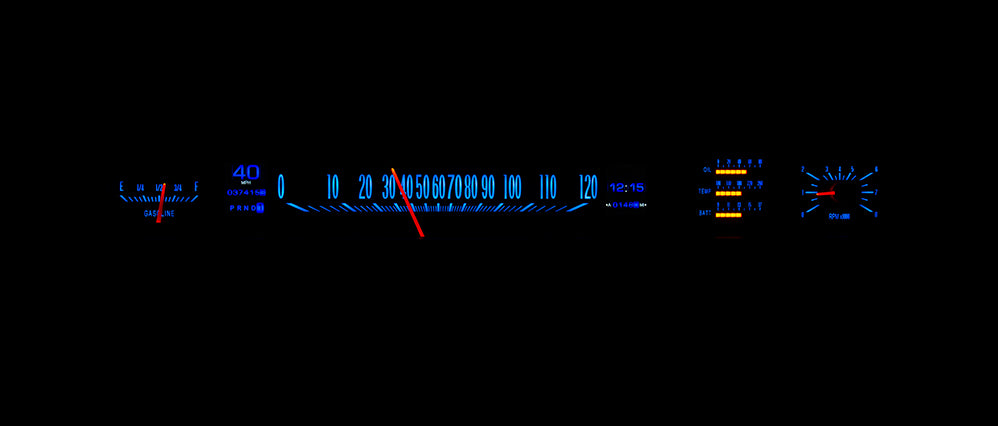

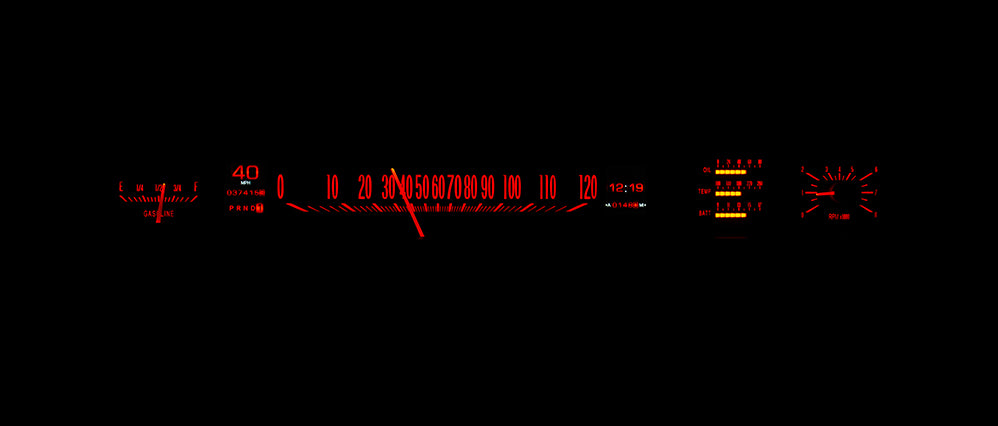

Colors: Over 30 user-selectable color options allow you to independently change the needle color, sweep color, and digital TFT display color. The full RGB backlighting lets you create the specific color you want, with unique daytime and nighttime themes if desired.
-
Brightness: Both daytime and nighttime brightness can be easily controlled through the RTX setup menu. You can choose your preferred lighting intensity level, which is toggled by the activation of your headlight switch. An optional dimming knob (DIM-1) is available for on-the-fly rotary control.
-
Themes: With 12 factory preset color themes, you can quickly create a beautiful looking system. For the ultimate in customization, you can also choose all of the color zones yourself.

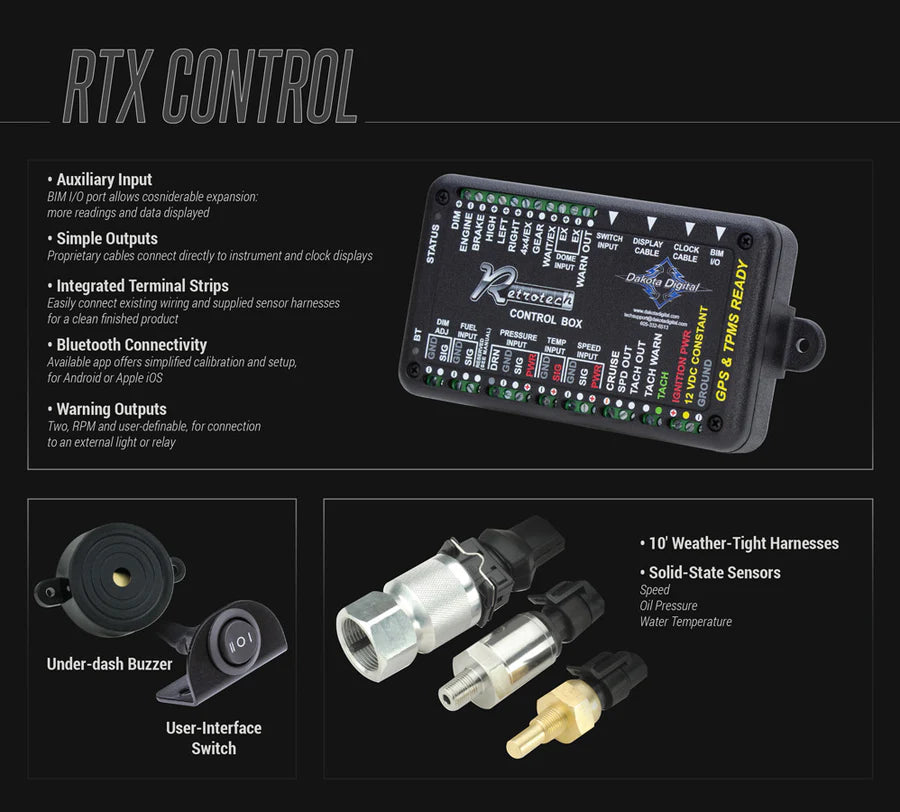

Included Sensors & Components
-
Water Temperature Sensor: 1/8" NPT, ground-isolated sensor with a 10-foot harness.
-
Oil Pressure Sensor: 1/8" NPT solid-state sensor with a 10-foot harness.
-
Cable Driven Speed Sensor/Generator: Replaces GM-style speedometer cables with a 10-foot harness. The sensor requires approximately 5 inches of clearance between the cable drive output and any obstruction. A relocation kit is sold separately for when additional clearance is required.
-
Bushings: Each kit comes with 1/8", 1/4", 3/8", and 1/2" NPT bushings, along with bushings for 12mm and 16mm x 1.5 threads.
Calibration and Use
-
Pushbutton Control: The system is programmed and operated by the push of a two-sided rocker switch, included with each package. This switch provides quick and consistent access to all functions, whether in driving mode or navigating the setup menu.
-

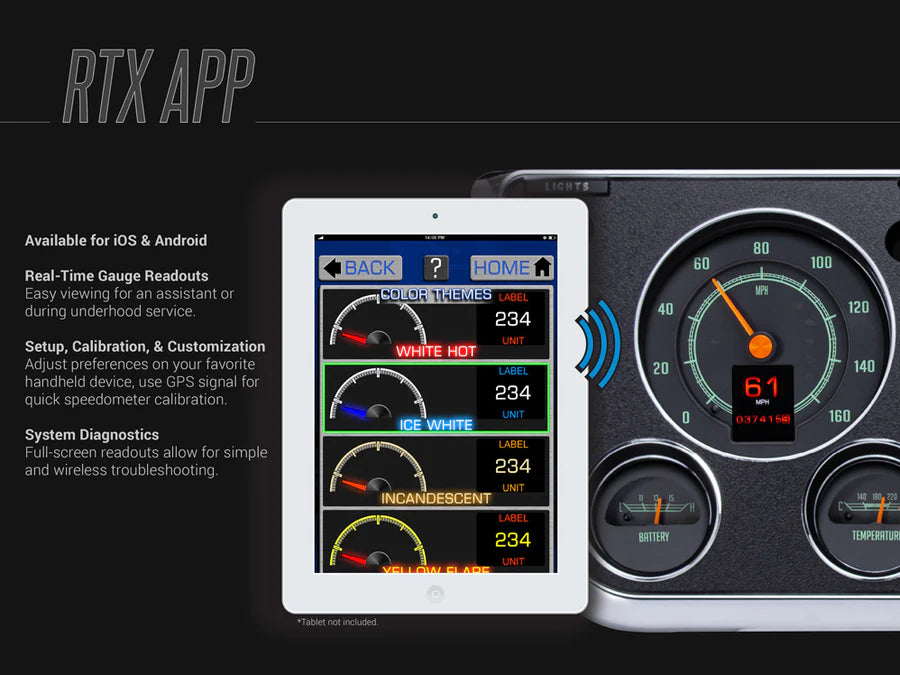

Mobile App: The RTX system can also be completely configured through the free mobile app, available for Android and Apple devices. You can use the app for quick menu navigation, real-time gauge readouts, or even as a secondary display for diagnostic use.
-
Calibration: All calibration settings are handled through the pushbutton switch or the mobile app. Speedometer and fuel level calibration are a simple process that can be completed with just a few button taps and a short test drive.
Note: The dash bezel is not included and is shown for visual/presentation purposes only. The system uses your OEM or a reproduction style bezel.
Control Box Dimensions: 5.5" x 3.5" x 1"
