The Ridetech air ride suspension for the 1961-1965 Ford Falcon was built from the ground up to bring the Falcon into the 21st century.
We think Ford Falcons are awesome! However, over 60 years have passed since the first Falcon was built and the original 155/13” tires that came on the Falcon just won’t cut it in todays world.

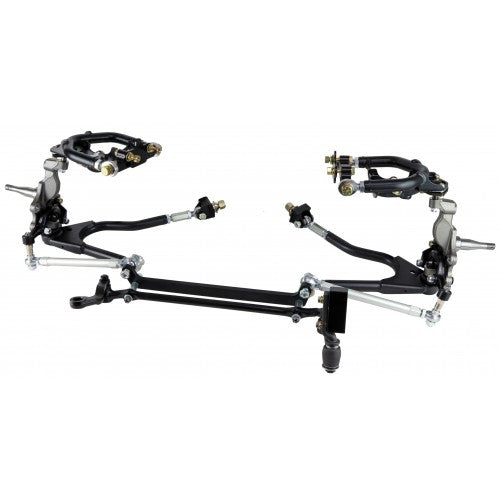

Front:
We started with fitting 225/40-R18 tires (Recommended Backspace 5.00 in.- 5.25 in.) and then built a tubular control arm set up to provide all the correct geometry to get them to work effectively.
The steering was also completely updated to provide quick response and virtually no bump steer.
To finish off the front suspension, we fitted a new MuscleBar sway bar that is heavy enough to take on the most aggressive of drivers.
This suspension package for the Ford Falcon will absolutely stun you!
- Includes New Ridetech Spindles (Compatible with 67-69 Camaro Brake systems)
- Bumpsteer reduced to less than 1/16 in.
- Mini-Starter required to clear Tru-Turn Draglink Adapter (not Included)
- Complete steering upgrade includes: Draglink (my require mini-starter for clearance), pitman arm (1 in. steering box sector shaft), idler arm, idler arm mount – compatible with manual steering, can be adapted to use Borgeson power steering system
- Zero to over 7 degrees of caster possible
- 1 1/8 in. Solid Front Sway Bar – Rate 608 lbs/in
- When equipped with 225/40 -R18 tires, standard ride height is 22.75 in. ground to the fender lip
REAR:
We chose to fix the rear suspension in much the same way we have done on many muscle cars originally equipped with leaf springs… swap in a 4-link.
This rear bolt-on 4-link suspension system completely transforms the little Ford Falcon into a world class handling machine, and at the same time provides an incredible smooth ride and bind free operation.
Starting off, the rear will accept up to a 225/40-R18 with a recommended backspace 5.50 in. – 6.00 in. and provide a ride Height: 18.75 in. ground to the fender lip.
-
- Adjustable 4-link bars including R-Joints
- Triangulated 4-Link – no need for pan hard bar and keeps rear end movement vertical
- Bolt-in cradle
- Upper control arm axle mounts require welding
- Spacers included to fit multiple factory leaf spring mounts (2 in. and 3 in.)
- 3 mounting holes for lower control arm at axle
1 – Top hole: Anti-squat 74.4 percent – Instant Center 72.8 in. – Roll Center 12.95 in.
2 – Middle Hole: Anti-Squat 108.1 percent – Instant Center 58.35 in. – Roll Center 11.67 in.
3 – Bottom Hole: Anti-Squat 135.5 percent – Instant Center 50.25 in. – Roll Center 10.35 in.
Air Ride Suspension system for 61-65 Ford Falcon includes:
Front and rear HQ Series Shockwaves, Front upper and lower StrongArms, TruTurn System, Front Sway bar, Rear 4-Link system.
Click here to read our full article about our Ford Falcon suspension systems.
*** Control system not included. To complete this Air Suspension system please choose from one of our Control Systems.
