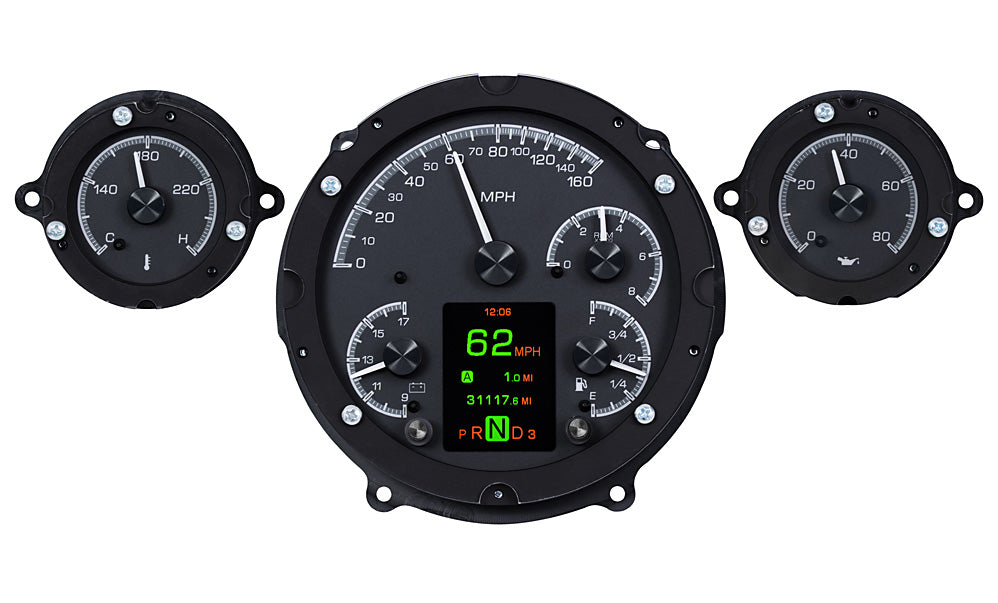

Transcending the hot rodding world, the ’57 Chevy car has become an American icon. Big tail fins, rockets on the hood and V8 power spells freedom on four wheels. For us, the triple-round gauge cluster is the perfect place to put six analog gauge readings, along with a big TFT display. You can view nearly any drivetrain parameter without sacrificing the world-class dashboard. Reproduction chrome trim is available separately; must use cast-metal housing for installation. Don’t forget to add the matching HLC clock for the passenger side. The HLC-57C clock cannot be used without an HDX system.

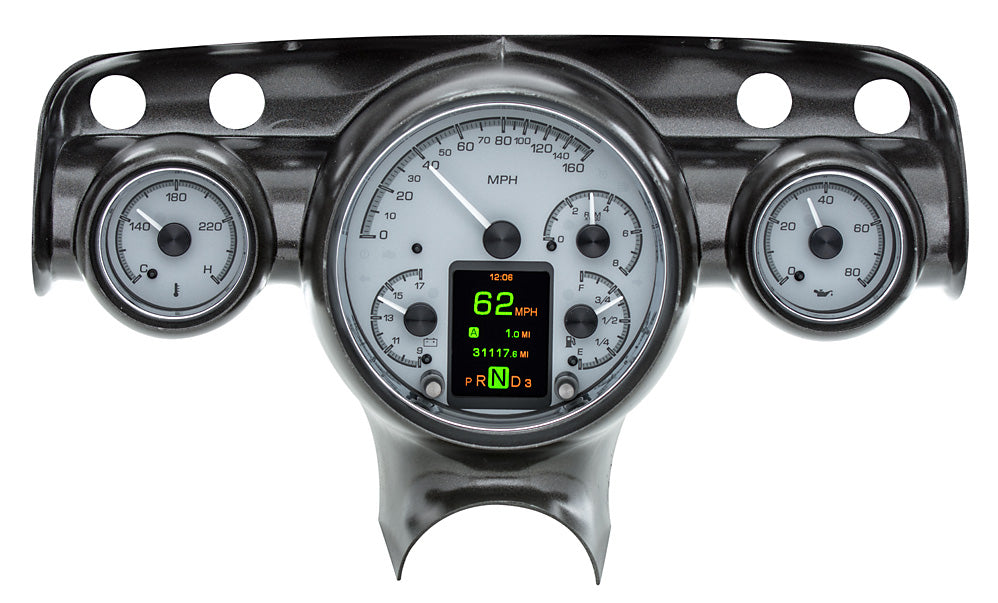

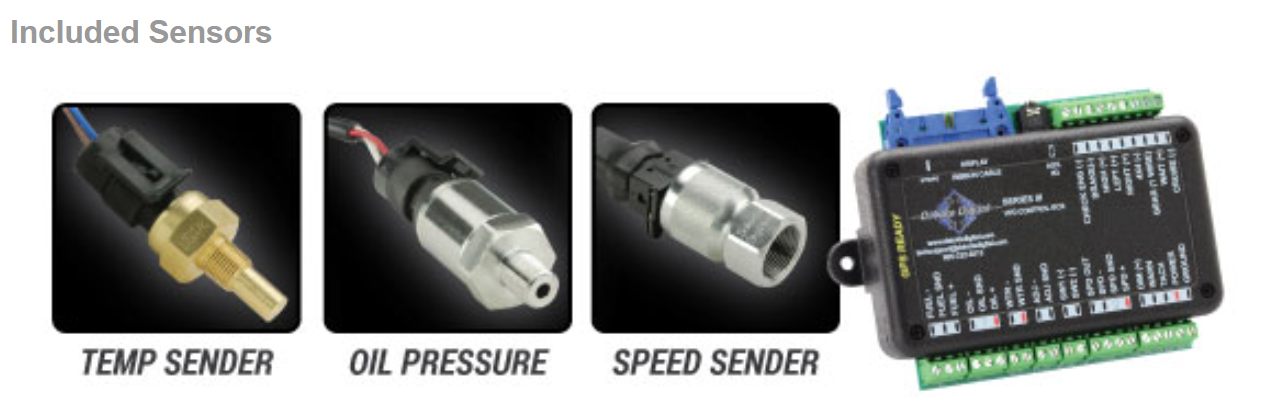

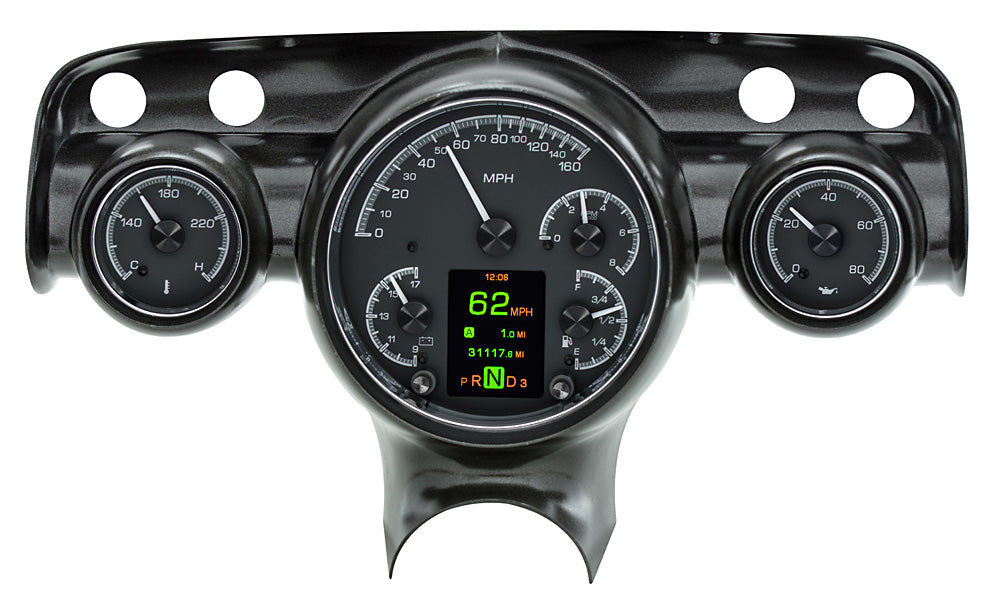

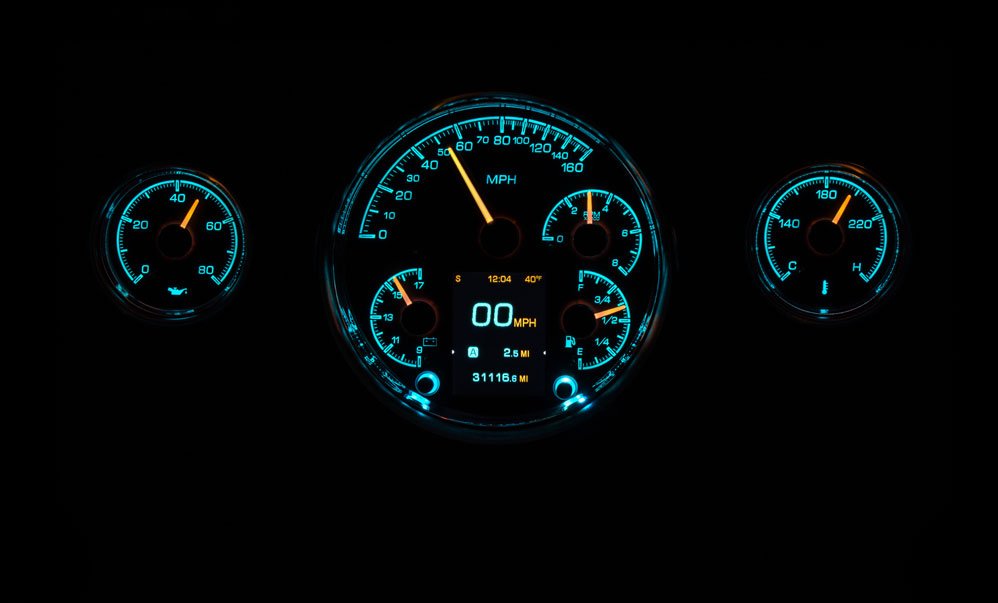

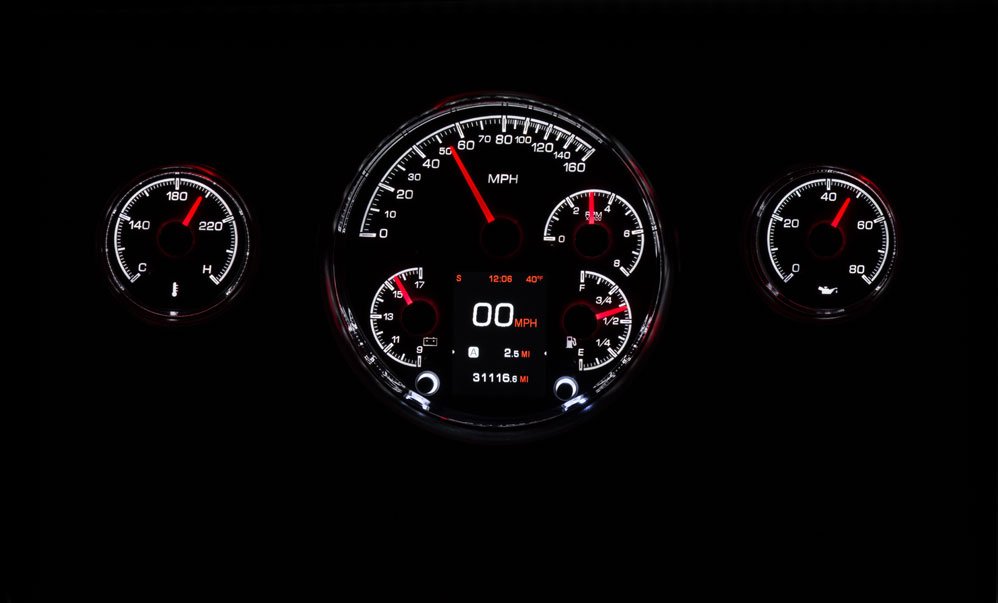

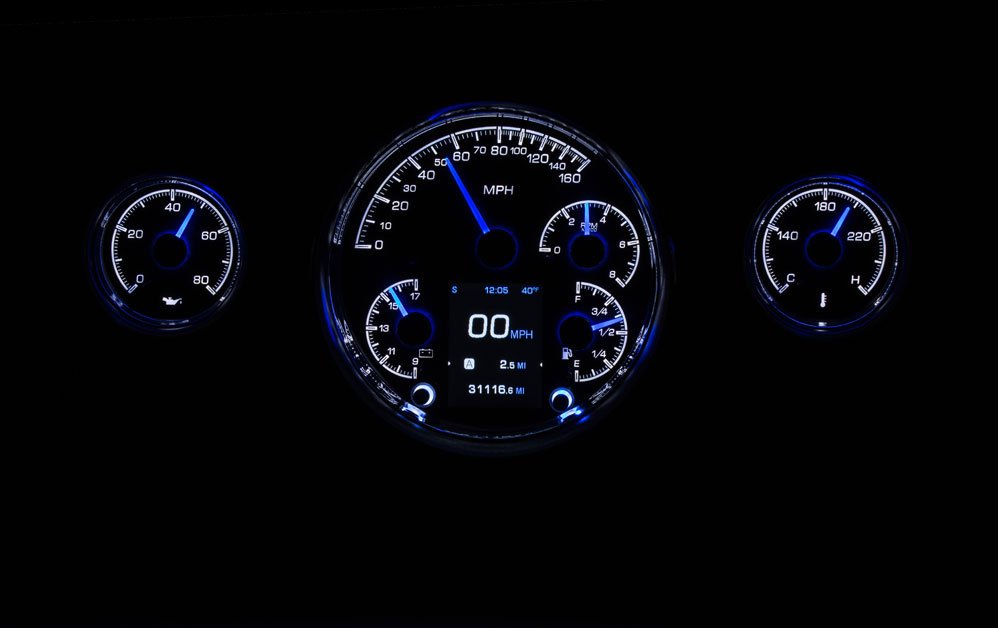

Available with your choice of black or silver gauge-face styling, each HDX system allows the user to select independent illumination colors for the gauge readings and needles, as well as the message centers. Calibration and personal settings are manipulated with the built-in, capacitive-touch buttons, or the available Bluetooth app for Apple and Android devices. Each needle hub is black nickel plated spun-aluminum to match the buttons. All HDX instrument systems feature dead-faced indicators (turn signals, high beam, check engine, cruise control, parking brake, plus two user-definable), and a red, settable warning light for each gauge. With our central control box, installation is greatly simplified with vehicle-harness sourced signals and supplied, solid state sending units connecting cleanly to their respective terminal. Click the tabs below for a more in-depth look at the HDX series!
·0 -160 MPH (optional metric version 0- 260 kmh)
·Split scale provides resolution of a 120MPH speedometer, with a top end range of 160MPH.
·0- 8,000 RPM
·0- 80 psi
·100- 260ºF (optional metric version 40- 120ºC)
·E, 1/4, 1/2, 3/4, F
·9- 17 VDC
·12 Hr Analog Clock Movement
Digital Message Centers
·Odometer (One time user settable, Million Mile)
·Dual (A/B) Trip Meter (0- 9,999.9)
·Clock (12 hour)
·Estimated Range/ Miles to Empty
·0- 60 MPH Timer (0- 100 kmh)
·1/4 and 1/8 mile time
·1/4 and 1/8 mile end speed (trap speed)
·High speed recall
·High RPM recall
·Turn Signals (Left/ Right)
·Cruise Control (On/ On & Engaged when vehicle is equipped)
·Gear Position (Optional GSS-3000 sensor required)
·4 x 4 (When vehicle is equipped)
·Wait to Start (When vehicle is equipped)
·Two Auxiliary input indicators with user-programmable labels
·Each analog gauge sweep contains a red LED indicator for quick notice of a warning condition (except speedometer)
