The Dakota Digital HDX Series Gauge Cluster for 1957 Chevrolet Cars delivers a masterclass in modern restomod engineering. Specifically tailored to capitalize on the iconic triple-round dashboard layout of the classic '57, this premium package manages to slip six analog gauge sweeps and a large, full-color thin-film transistor (TFT) information matrix into the factory space without compromising the vehicle's legendary mid-century soul.
Advanced Architectural Styling
The HDX series moves far beyond standard numeric displays, featuring custom details designed for discerning builders:
-

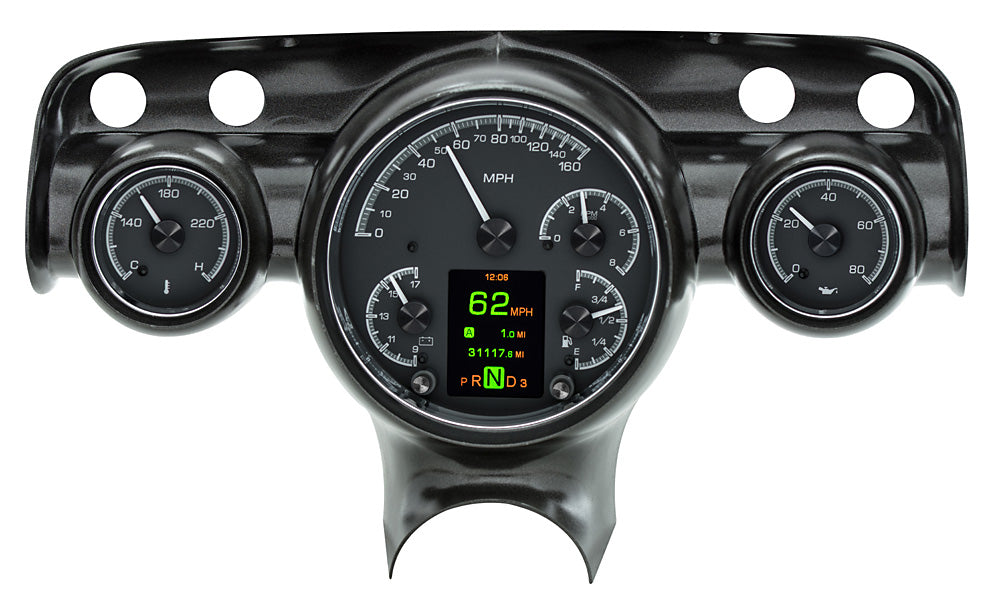

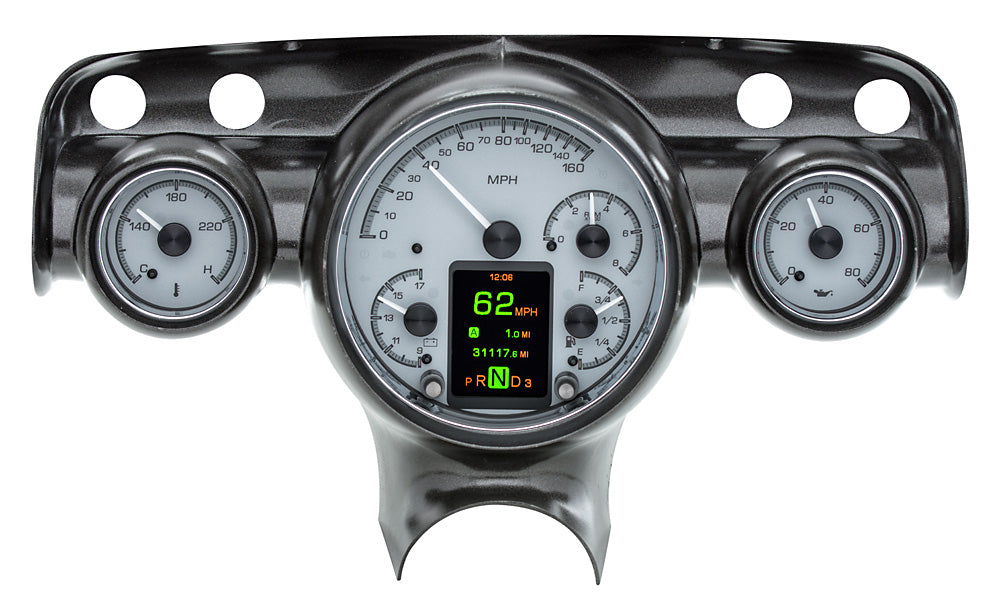

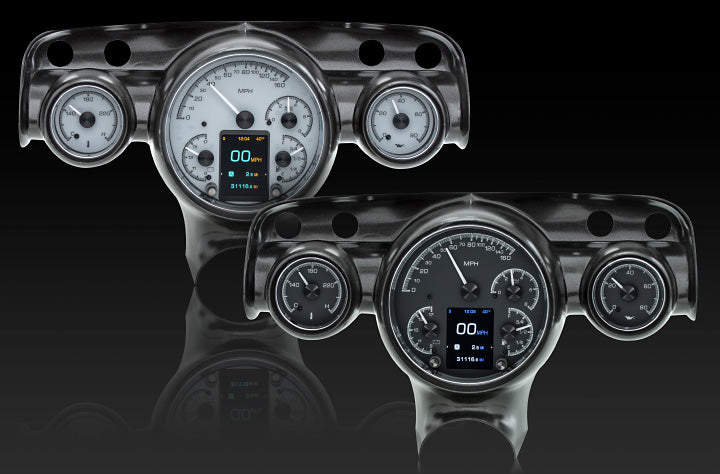

Dual Alloy Face Options: Available in your choice of either an understated matte black or a sleek silver alloy face to match your interior theme.
-
Spun Aluminum Accents: The needle hubs are machined from spun aluminum and plated in high-end black nickel, perfectly matching the style of the integrated configuration control surfaces.
-

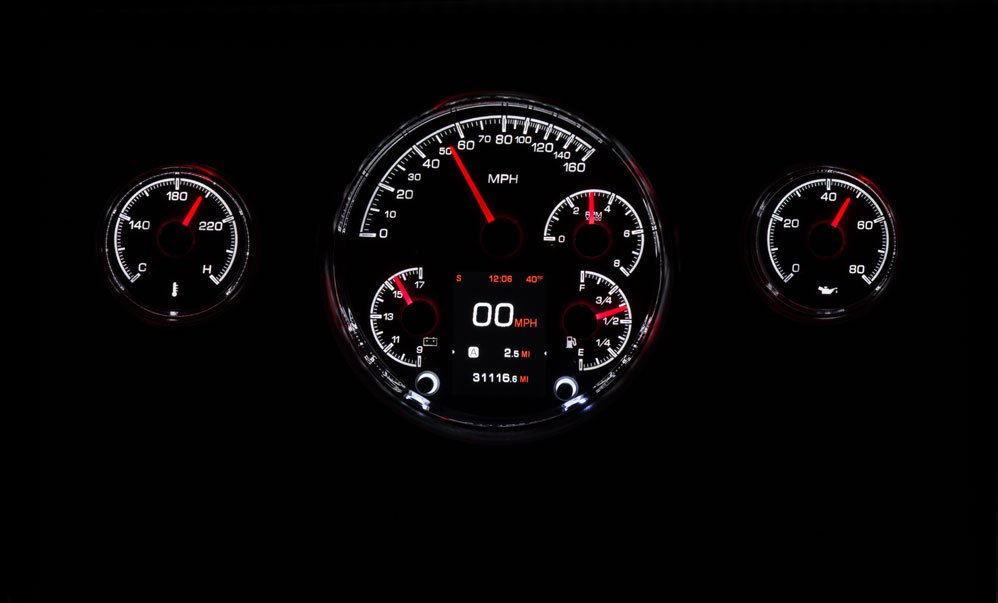

RBG LED Customization: Features full independent RGB illumination control. You can assign different custom colors to the gauge markings, needles, and digital readout sectors independently, or pick from 12 factory preset themes for effortless look changes.
-
Automatic Illumination Dimming: Program custom parameters for daytime and nighttime brightness. The system automatically shifts intensity levels when you toggle your factory headlight switch.
Comprehensive 6-Gauge Performance Array
The system re-engineers your entire telemetry layout to display six vital performance metrics with dead-on solid-state accuracy:
-

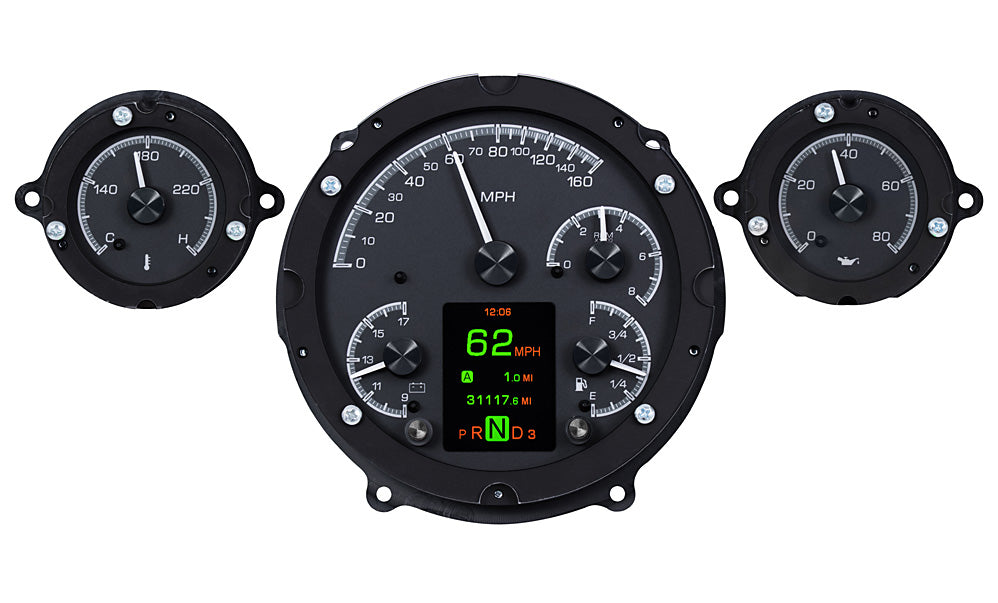

Speedometer: 0–160 MPH (Optional metric version: 0–260 km/h). Features a clever split-scale face that maintains the higher visual resolution of a 120 MPH speedometer across your typical driving speeds, while keeping room for a 160 MPH top-end sweep.
-
Tachometer: 0–8,000 RPM
-
Oil Pressure: 0–80 psi
-
Water Temperature: 100–260°F (Optional metric version: 40–120°C)
-
Fuel Level: E, 1/4, 1/2, 3/4, F
-
Voltmeter: 9–17 VDC
Hidden Diagnostics and Performance Tracking
-
Dead-Faced Indicators: Integrated warning lights for Turn Signals, High Beam, Check Engine, Cruise Control, and Parking Brake remain completely invisible and blacked out ("dead-faced") until they are activated.
-
Settable Over-Limit Warnings: Every single analog gauge contains an independent, programmable red LED warning indicator that flashes automatically to alert you the instant a circuit dips or spikes past your safe threshold.
-
Onboard Drag Strips: The center TFT message matrix features built-in electronic timers to log your real-world performance metrics, including 0–60 MPH times, 1/8-mile runs, 1/4-mile track parameters, and high-RPM/high-speed memory recalls.
Simplified Control Box Wire Routing
To eliminate the absolute nightmare of wiring six individual modern electronic gauges behind a tight vintage steel dashboard, Dakota Digital uses a centralized External Control Box (5.5" x 3.5" x 1"). All of your engine-bay sending units and factory chassis wires route straight to this compact box under the dash, with a single data umbilical running directly up to the cluster housing.
Calibration—including inputting your exact odometer mileage (a one-time user setup)—can be managed easily via the face-integrated, capacitive-touch pushbuttons or wirelessly by pairing your Apple or Android smartphone to the free Dakota Digital Bluetooth app.
Complete Installation Hardware Kit

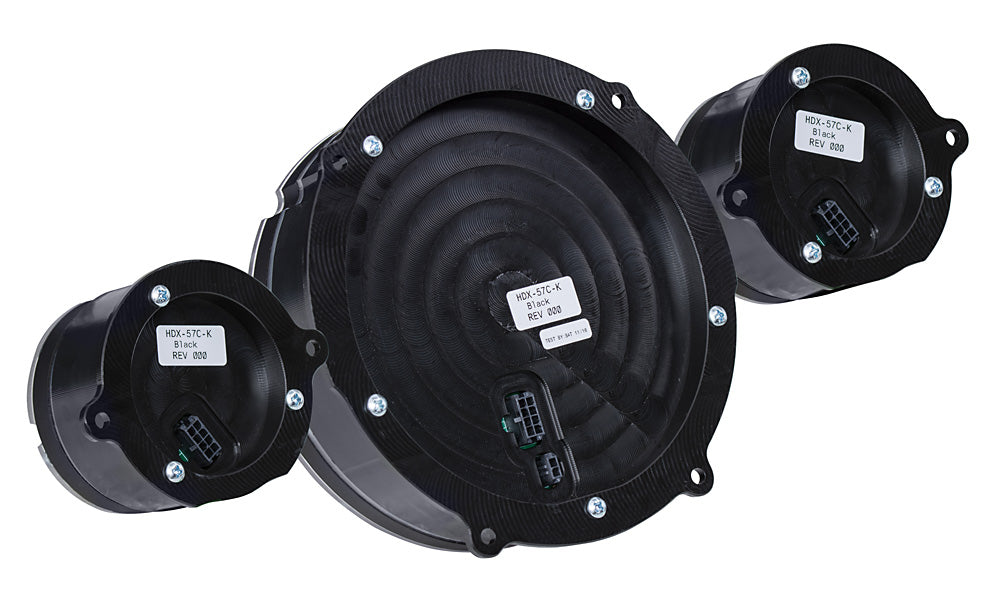

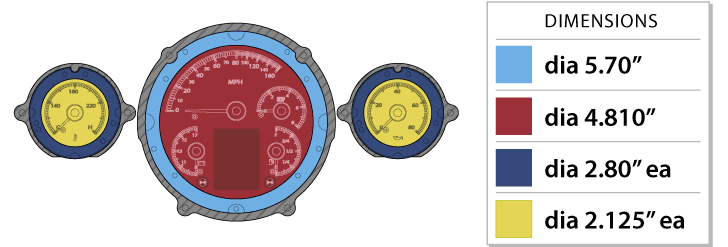

The system is built as a direct drop-in kit designed to bolt straight into your factory original or reproduction cast-metal gauge pod housing. The package ships complete with the cluster assembly, the central brains, and premium ground-isolated sending units:
-
1/8" NPT Solid-State Oil Pressure & Water Temp Transducers (equipped with a 10-foot weather-tight wiring harness and adapter bushings for 1/4", 3/8", 1/2" NPT, and 12mm/16mm metric threads).
-
Electronic Speed Sensor Generator to replace old mechanical GM screw-in style speedometer cables.
🛠️ Installation Note: The decorative external chrome dash inserts, rings, and main bezel housing are not included with this kit; the assembly is explicitly designed to reuse your factory original brightwork or bolt directly into fresh reproduction cast trim.
