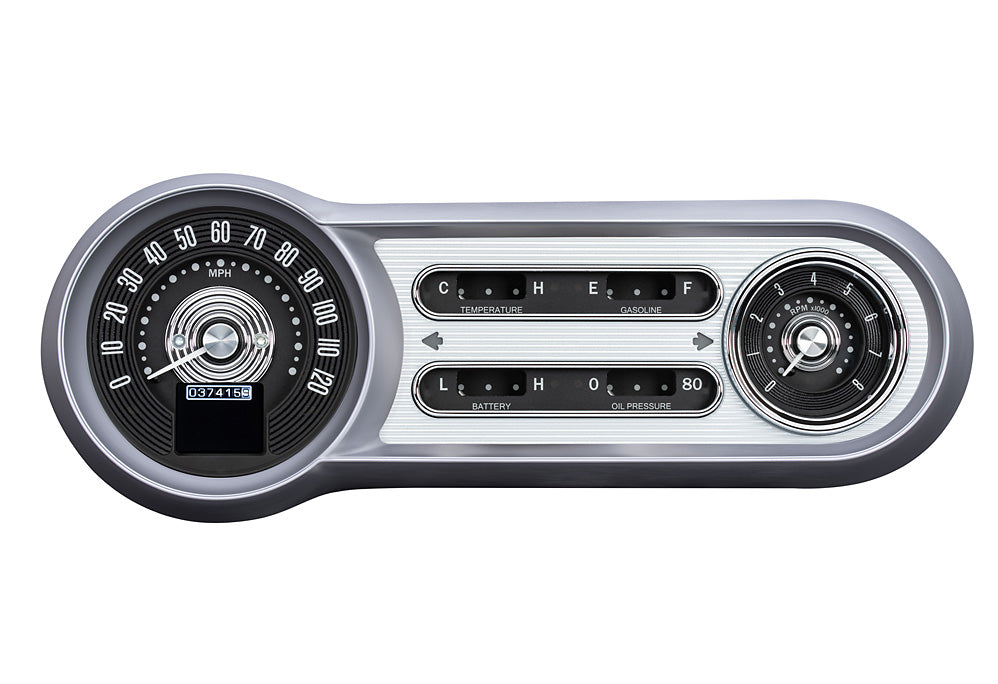

The Dakota Digital RTX Series Gauge Cluster for 1953–1954 Chevrolet Cars brings 21st-century instrumentation to your classic Bel Air, 150, or 210 build. Dakota Digital’s engineering team has meticulously replicated the OEM layout and styling cues of the original mid-50s dash, ensuring your vintage interior retains its authentic soul while hiding late-model precision beneath the surface.

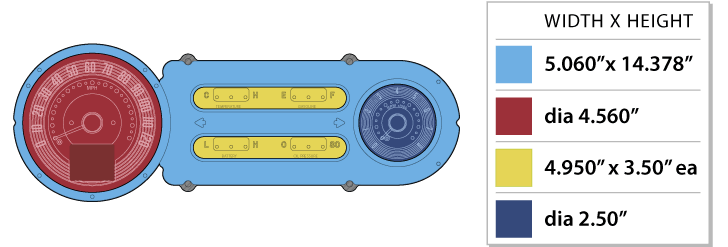

This system is designed to mount seamlessly behind your original factory or reproduction chrome dash bezel.
Installation Note: To accommodate the advanced electronic architecture and digital message displays, a small, minor modification is required: you will need to trim a small internal section of the dashboard structure hidden between the stock speedometer and clock openings.
Mid-Century Styling Meets Late-Model Technology
With the ignition off, a casual glance won't reveal anything non-original. However, turning the key unlocks a complete electronic transformation:
-
Advanced Internals: Sluggish factory mechanical needles are replaced with ultra-precise electronic stepper motors and crisp, high-contrast LED backlighting.
-

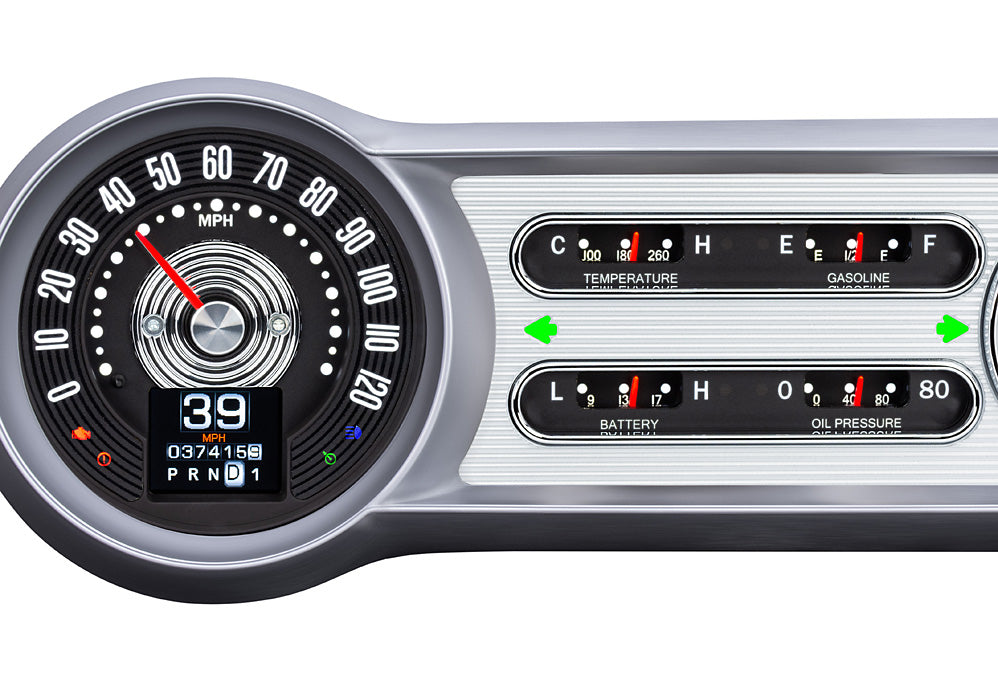

Full-Color TFT Message Center: A high-definition, configurable digital screen is embedded directly into the cluster face, giving you real-time access to secondary data and performance tracking without cluttering the retro dash look.
-

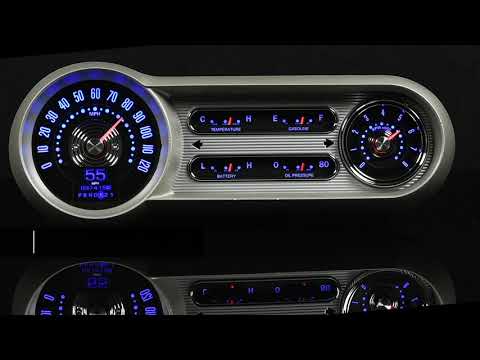

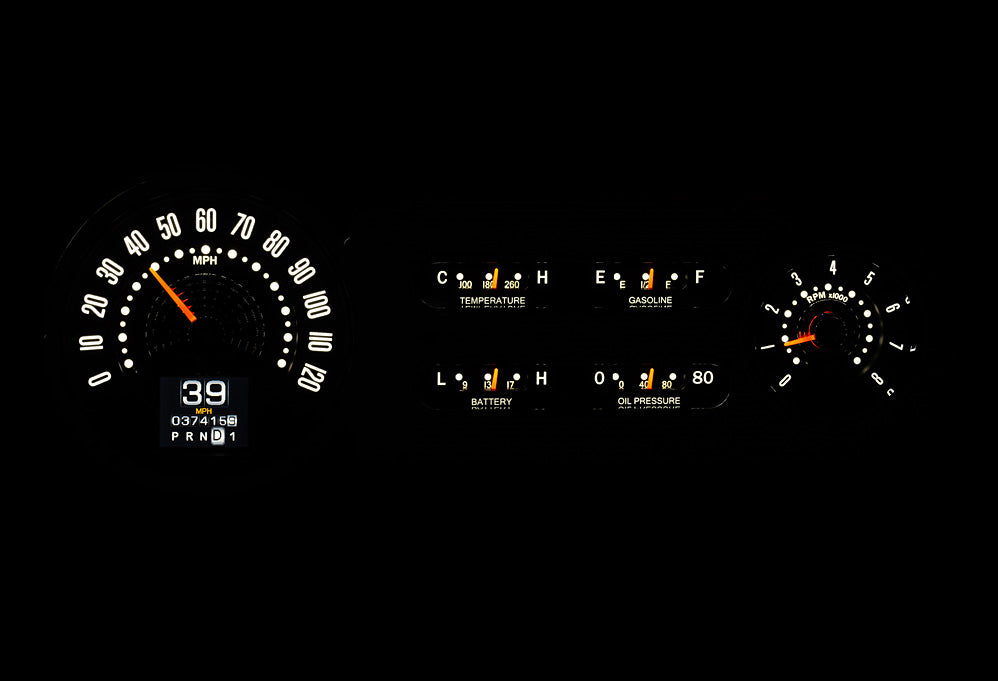

Customizable RGB Backlighting: Features over 30 user-selectable color options to independently change the illumination of the needles, gauge sweeps, and digital displays. You can customize your layout from scratch or pick from 12 factory presets, with separate day and night brightness levels that toggle automatically with your headlight switch.
Comprehensive 6-Gauge Analog Package
This system converts your dashboard into a highly accurate data center, delivering far more critical information than original 1950s equipment:
-
Speedometer: 0–120 MPH (Optional metric version: 0–200 km/h)
-
Tachometer: 0–8,000 RPM
-
Oil Pressure: 0–80 psi
-
Water Temperature: 100–260°F (Optional metric version: 40–120°C)
-
Fuel Level: E, 1/4, 1/2, 3/4, F
-
Voltmeter: 9–17 VDC
Built-In Safety Indicators & Performance Trackers
-
Stealth Indicators: Modern diagnostic lights remain completely hidden until activated, including Left/Right Turn Signals, High Beam, Check Engine, Parking Brake, and Cruise Control. Each analog gauge sweep also includes an integrated red warning LED that flashes automatically during an over-limit condition.
-
Track Metrics: Evaluate your classic's real-world performance with built-in timers for 0–60 MPH, 1/8-mile, and 1/4-mile runs, along with trap speed, high-speed, and high-RPM recall.
-
Steering Column Cleanup: This electronic instrument system eliminates the old, clunky mechanical automatic gear shift indicator immediately above the steering column. To display your gear position cleanly within the digital TFT message center, simply add the optional GSS-3000 gear shift position sensor to your order.
Consolidated Control Box & Bluetooth Setup
Wiring individual modern gauges behind a tight 1953–54 dash can quickly turn into a cluttered nightmare. The RTX series solves this by routing all instrument signals to a single, compact Central Control Box (5.5" x 3.5" x 1") that can be tucked away cleanly.
System calibration—including setting the odometer to match your vehicle's true mileage (a one-time user configuration)—can be handled via the included external hardwired two-sided rocker switch. For an even more intuitive setup, the cluster features built-in Bluetooth compatibility. Simply download the free app to your Apple or Android smartphone or tablet to calibrate your speedometer, adjust warning limits, configure color profiles, or view live diagnostic readouts.
Premium Solid-State Sensors Included
The package comes complete with ground-isolated, modern sending units to get your project up and running:
-
Oil Pressure & Water Temp Sending Units: 1/8" NPT solid-state sensors with a 10-foot wiring harness and a comprehensive installation bushing kit (1/4", 3/8", and 1/2" NPT, plus 12mm and 16mm x 1.5 thread adapters).
-
Electronic Speed Sensor: A modern 3-wire pulse generator that replaces your old mechanical GM speedometer cable. (Requires 5 inches of clearance extending from the transmission cable output; a relocation generator adapter is available separately if body or crossmember clearance is tight).
