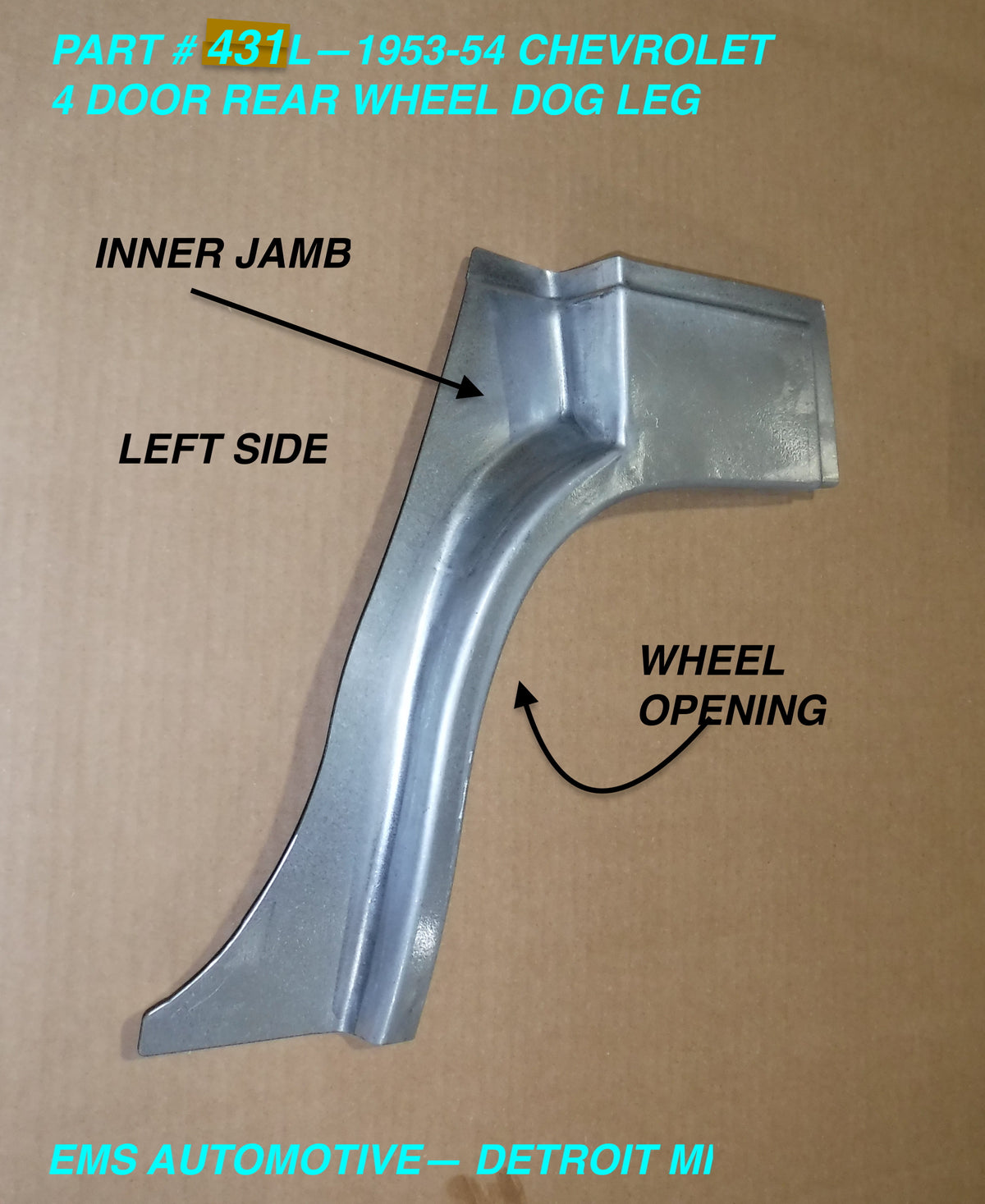

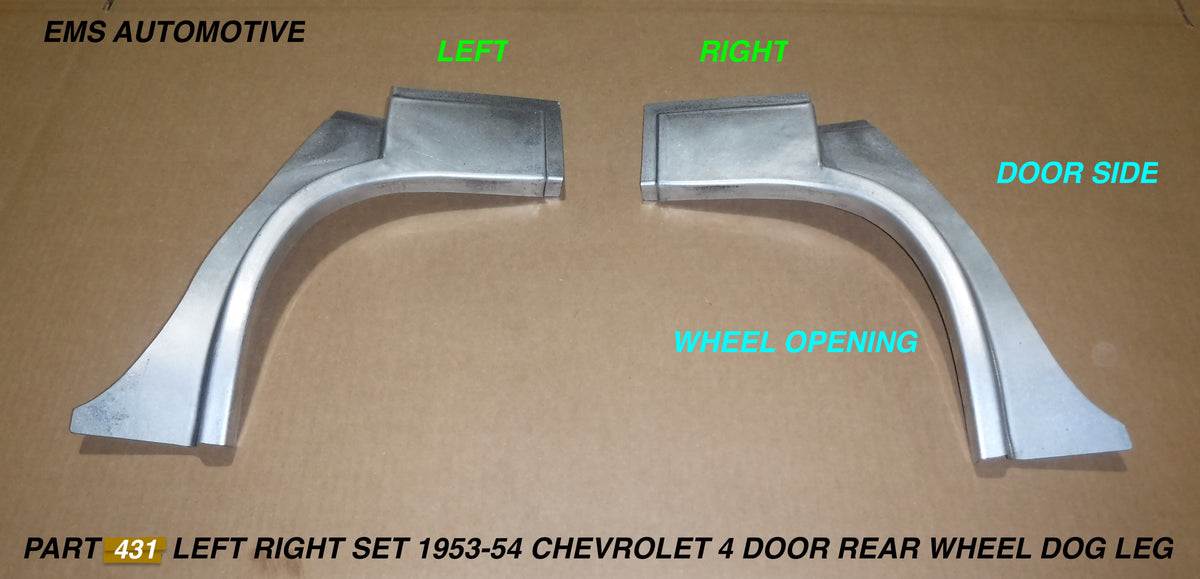

The 1953–1954 Chevy 4-Door Sedan Rear Wheel Opening / Dog Leg Repair Panel by EMS Automotive is a die-stamped, heavy-gauge sheet metal replacement panel engineered specifically for the rust-prone area between the rear door jamb and the rear wheel arch on 4-door 1953–1954 Chevrolets. Made in Detroit, USA, this repair section replaces the complex factory stampings that act as internal moisture traps on classic Tri-Five predecessors.
Vehicle Application & Compatibility
-
Vehicle Fitment: 1953 and 1954 Chevrolet 4-Door Sedans (One-Fifty, Two-Ten, and Bel Air 4-door models).
-
Coverage Area: Starts at the top of the outer rocker panel, wraps into the rear door jamb, extends up the lower quarter panel above the tire line, and rolls into the outer lip of the rear wheelhouse.
Product Overview & Performance
The rear dog leg area on 1953–1954 Chevy 4-door sedans is a known rust trap due to multi-layered sheet metal joints where the rear door jamb, outer quarter panel, and inner wheelhouse meet. Water and road debris slung by the rear tires collect inside this unsealed pocket, rusting out the structural jamb and outer sheet metal from the inside out.
EMS Automotive addresses this by die-stamping a single-piece repair panel from heavy 18-gauge steel. This panel replaces the rusted outer quarter skin, the rear door jamb seal channel, and the outer wheelhouse roll-in lip simultaneously, eliminating the need to hand-fabricate compound curves and door latch alignment channels.
Key Features & Design Highlights
-
Die-Stamped 18-Gauge Steel: Thick 18-gauge automotive steel provides structural strength and excellent weldability without warping under heat.
-
Complex Multi-Contour Stamping: Recreates the original compound curves of the wheel arch, door jamb pillar, and rocker panel junction in a single panel.
-
Integrated Rear Door Jamb & Seal Channel: Includes the functional inner door jamb section to ensure proper rear door rubber weatherstrip sealing and door gap alignment.
-
Outer Wheelhouse Lip Roll: Extends into the outer wheelhouse lip to join directly with inner wheelhouse repair patches.
-
American-Made Quality: Stamped and manufactured by EMS Automotive in Detroit, Michigan, USA.
Technical Specification Matrix
| Feature / Metric |
Technical Specification Detail |
| Manufacturer |
EMS Automotive (Detroit, MI, USA) |
| Part Type |
Rear Door Jamb / Wheel Opening Dog Leg Repair Panel |
| Vehicle Compatibility |
1953–1954 Chevrolet 4-Door Sedans (150, 210, Bel Air) |
| Material Thickness |
Heavy 18-Gauge Steel |
| Repair Coverage |
Rocker panel top to lower quarter panel above tire; includes rear door jamb and wheelhouse lip |
| Manufacturing Quality Level |
High-Grade OEM Replacement Panel |
Installation & Alignment Guidance
-
Rear Door Fitment Test: Test-fit the panel with the rear door hung and latched in place. Verify door skin-to-dog leg gaps and body side-molding alignment before final tack welding.
-
Inner Structure Inspection: Inspect and repair any rusted inner wheelhouse sheet metal or floor brace structure before welding this outer dog leg panel over the wheel arch.
-
Cavity Rust Prevention: Coat the inner unexposed side of the panel with a weld-through primer prior to welding, and apply cavity wax or rust inhibitor inside the dog leg post installation to prevent future moisture trap buildup.
