1950-53 Chevy Truck Vintage Air Surefit Complete Air Conditioning Kit

You will be contacted by phone after ordering to gather final details for your kit!

The 1950–53 Chevrolet Pickup Gen 5 SureFit™ Complete Climate Control System is the premier aftermarket climate control upgrade engineered explicitly for Advanced Design Chevy and GMC trucks. Moving far past standard universal add-on under-dash boxes, this model-specific kit integrates completely inside your dashboard. It replaces your vintage truck's outdated fresh-air heater with a highly sophisticated, high-capacity A/C, heating, and defrost system.

Generation 5 Microprocessor-Controlled Engineering

Unlike older aftermarket setups or original factory equipment that relies on stiff mechanical push-pull cables or leak-prone engine vacuum lines, the Gen 5 SureFit system operates on a fully electronic, microprocessor-controlled network.

• Infinite Air Blending: Precision fly-by-wire servo motors sweep the internal blend doors continuously, allowing you to fine-tune your cabin temperature instantly and precisely blend airflow across the dash louvers, floor vents, and defrost ducts.

• Proactive Diagnostics & Fail-Safes: Features an integrated ECU diagnostic program that monitors system health, protecting your compressor and preventing evaporator core freeze-ups.

• NVH Rubber Well-Nut Isolation: The main climate unit mounts firmly to the interior sheet metal using premium rubber well-nut mounting points. This stops physical engine bay vibration and motor resonance from transferring directly into the cabin.

Premium Interior Packaging & Air Management

• Injection-Molded Multi-Chamber Case: Built from dense, high-impact injection-molded plastic to ensure tight structural tolerances. The internal blend air doors feature integrated, co-molded rubber seals that eliminate draft leakage when closing off individual heating or cooling sectors.

• Parallel Aluminum Heat Exchangers: Uses separate, ultra-dense aluminum A/C and heater cores running side-by-side to ensure rapid air-delivery temperature drops and high-temperature winter heat.

• Restoration Cleanliness: Includes a sleek, flat-steel black powder-coated firewall cover plate to cleanly seal off your original heater motor holes. It also includes a custom-molded, reduced-capacity replacement glove box liner to clear the new internal under-dash ductwork while retaining a functional interior storage compartment.

Technical Specification Matrix

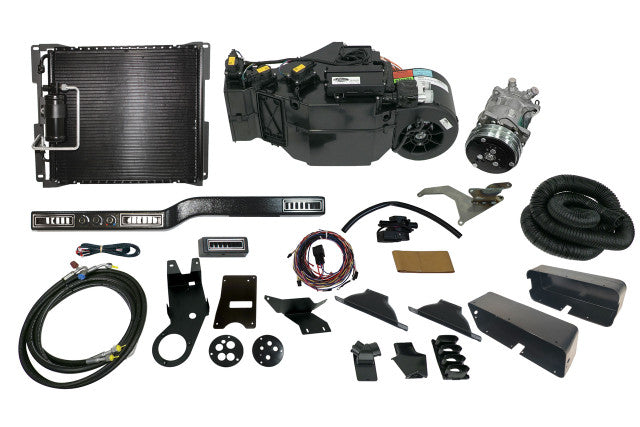

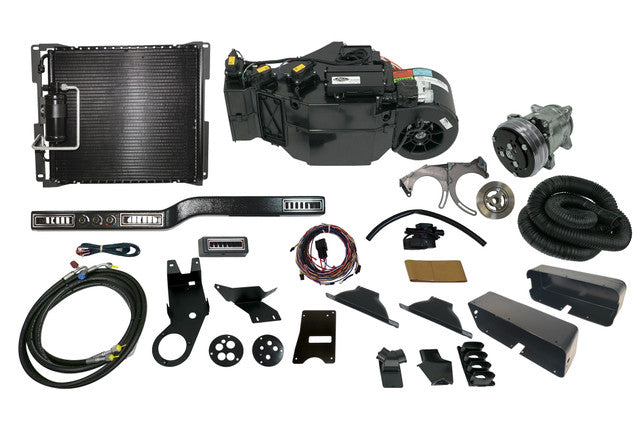

All-Inclusive Under-Hood Component Package

This complete kit includes all cabin and engine-bay hardware necessary to assemble a fully sealed R134a loop:

• Sanden A/C Compressor: Features a balanced, low-vibration Sanden compressor complete with model-specific engine mounting brackets.

• High-Efficiency Condenser: Includes a vehicle-specific condenser core alongside form-fitted brackets that bolt cleanly into your radiator support assembly.

• Barrier Style Refrigerant Lines: Shipped with pre-crimped and pre-formed high-durability refrigerant hoses, complete with a specialized receiver/drier, binary safety cut-off switch, and all necessary O-ring fittings.
