The Dakota Digital RTX Series Gauge Cluster for 1949–1950 Chevrolet Cars (Styleline and Fleetline models) represents the pinnacle of Restomod instrumentation. Dakota Digital’s engineering team completely honors vintage Americana design while seamlessly layering in 21st-century technology.

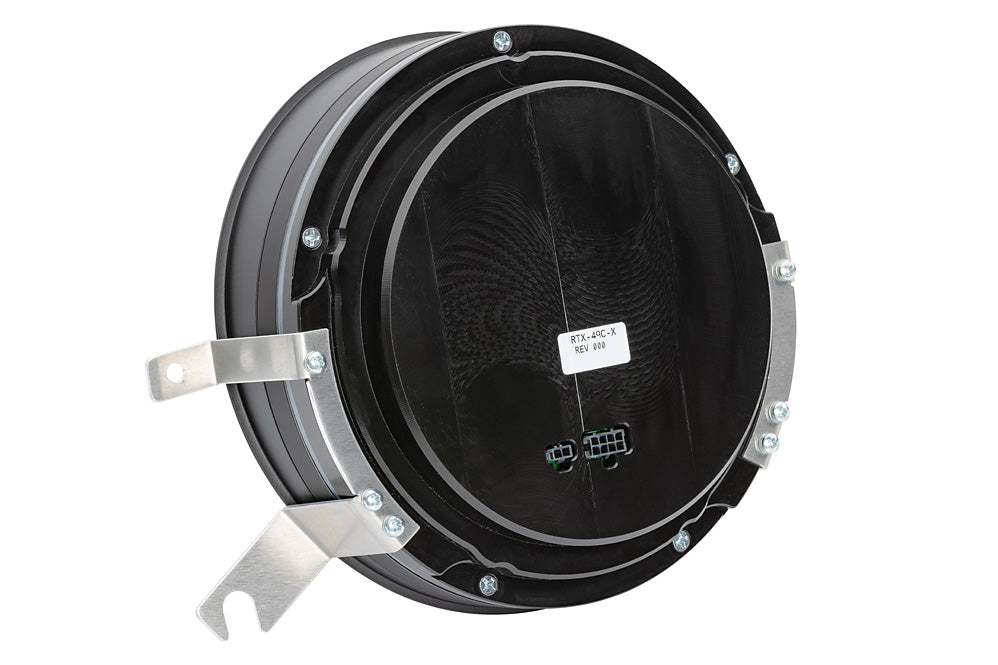

To achieve a perfect fit, the system is built into a custom CNC-machined billet aluminum housing that bolts directly into your '49–50 dashboard using stock hardware and retains the classic look of your original, OEM crimp-on front chrome bezel.
Timeless Vintage Layout meets 21st-Century Precision
While a casual glance might mistake this cluster for a meticulously restored original unit, a turn of the ignition key reveals a massive leap forward in capability:
-
Modern Internals: Vintage mechanical gears are replaced by ultra-precise electronic stepper motor needle movements and full LED backlighting.
-
Full-Color TFT Message Center: Integrated into the cluster face, this high-definition screen acts as a hidden multi-tool, displaying secondary data, diagnostics, and metrics without destroying the dashboard's retro vibe.
-

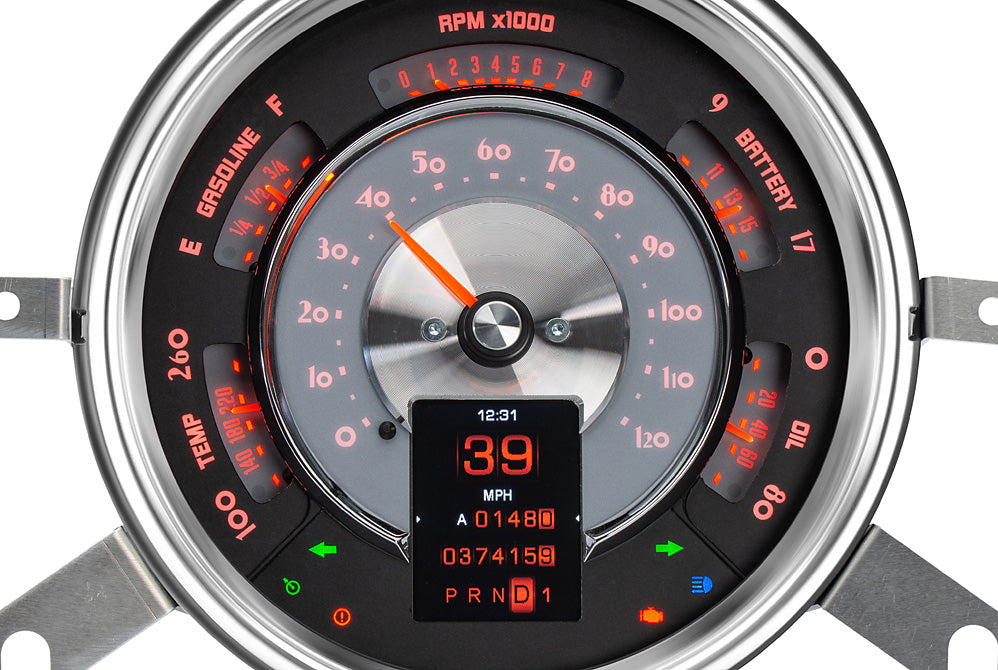

Customizable RGB Backlighting: Choose from over 30 independent color options for the needles, gauge sweeps, and digital elements, or select from 12 factory-preset themes. Separate daytime and nighttime profiles switch automatically when you turn on your headlights.

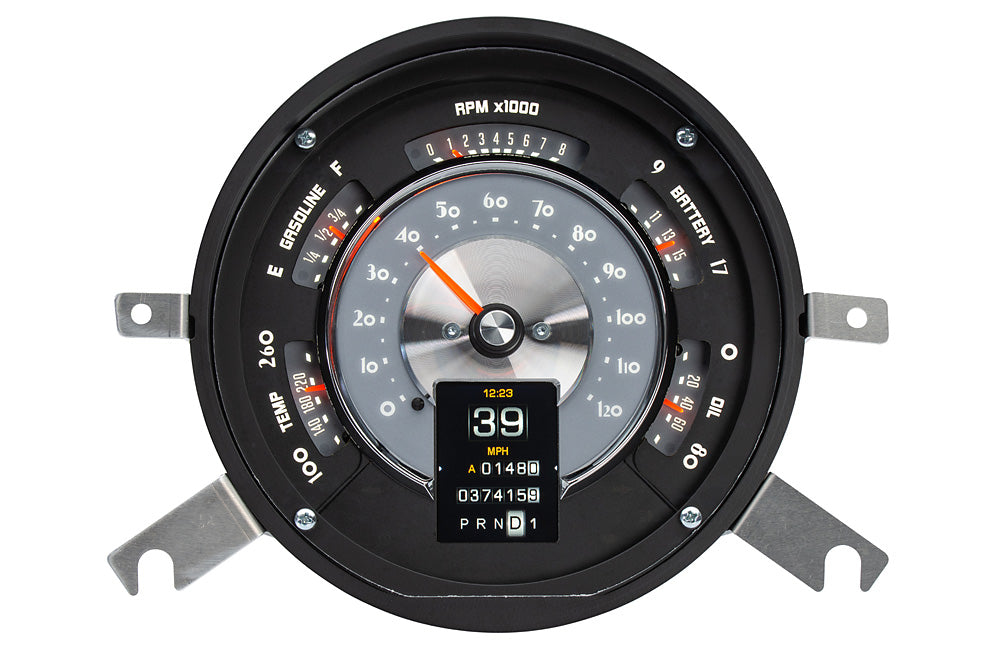

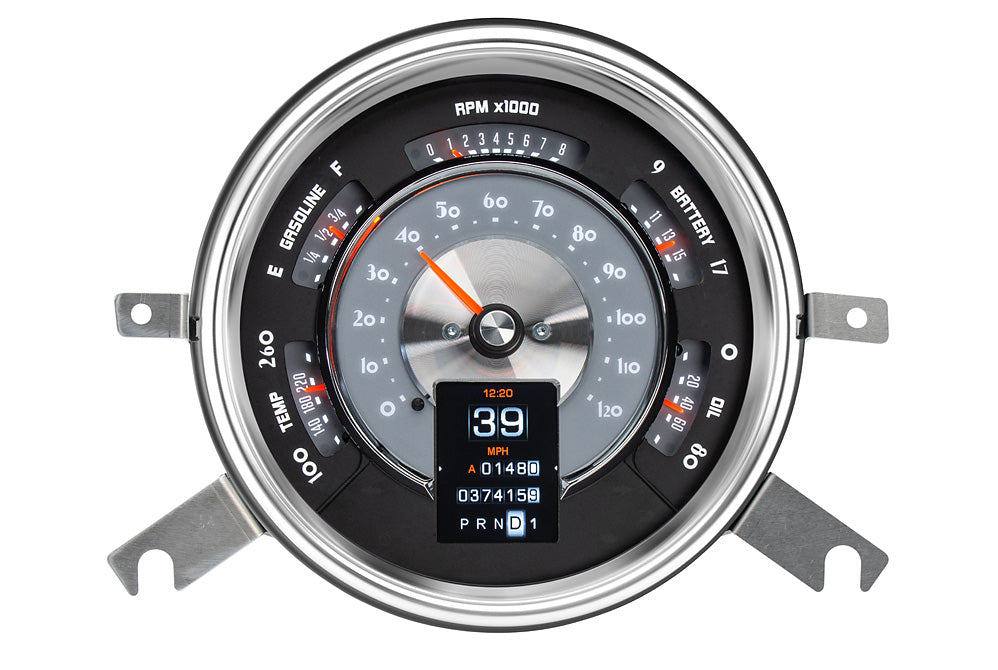

Comprehensive 6-Gauge Analog Package
This kit upgrades your factory dash with six vital analog readings, significantly expanding on the limited information provided by original 1950s gauges:
-
Speedometer: 0–120 MPH (Optional metric version: 0–200 km/h)
-
Tachometer: 0–8,000 RPM
-
Oil Pressure: 0–80 psi
-
Water Temperature: 100–260°F (Optional metric version: 40–120°C)
-
Fuel Level: E, 1/4, 1/2, 3/4, F
-
Voltmeter: 9–17 VDC
Built-In Safety Indicators & Performance Trackers
-
Hidden Indicators: The face incorporates modern warning lights that stay invisible until active, including Left/Right Turn Signals, High Beam, Check Engine, Parking Brake, and Cruise Control. Each analog gauge also houses a red warning LED that flashes during critical over-limit parameters.
-
Track Metrics: Evaluate your classic's real-world performance with built-in timers for 0–60 MPH, 1/8-mile, and 1/4-mile runs, alongside trap speed, high-speed, and high-RPM recall.
Centralized Control Box & App Setup
Say goodbye to the absolute nightmare of wiring six individual gauges behind a tight 1950s dashboard. The RTX system consolidates all incoming data lines into a single, compact Central Control Box (5.5" x 3.5" x 1") that can be tucked cleanly under the dash or fire wall.
Calibration and menu navigation—including setting your odometer to match your car's true mileage (a one-time user setting)—can be performed using the included external hardwired two-sided rocker switch. For an even easier setup, the system features built-in Bluetooth. Simply download the free app to your Apple or Android smartphone or tablet to calibrate the speedometer, configure colors, set warning thresholds, or view real-time diagnostics.
Complete Sensor & Hardware Kit
The package ships ready for install with premium, ground-isolated sending units:
-
Solid-State Oil Pressure & Water Temp Sensors: 1/8" NPT threads with a full range of conversion bushings (1/4", 3/8", 1/2" NPT, plus 12mm and 16mm x 1.5 metric adapters).
-
Electronic Speed Sensor: Replaces your mechanical GM speedometer cable with a modern, 3-wire pulse generator. (Requires 5" of clearance behind the transmission tail-housing; a relocation cable is available separately if space is tight).
