1947-53 Chevy and GMC Truck Dakota Digital RTX Gauges

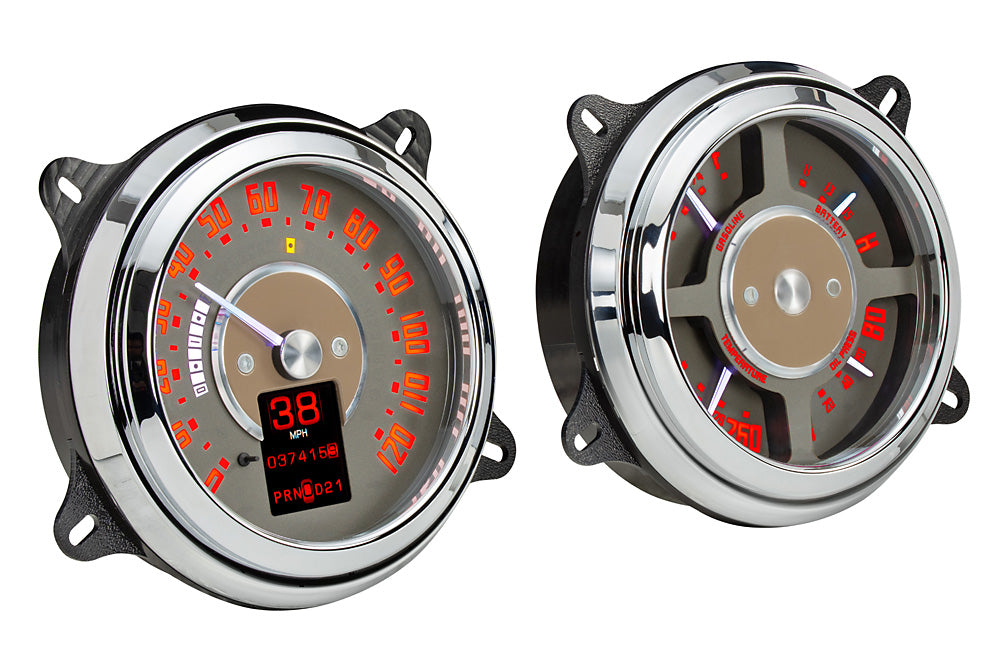

Upgrade your classic Chevy or GMC truck with the cutting-edge Dakota Digital RTX series, designed to maintain the timeless factory appearance while delivering the latest in performance instrumentation. This dual-round gauge cluster features chrome-plated billet aluminum bezels for a vintage look, seamlessly integrating modern digital technology for enhanced functionality.

Classic Aesthetic with Modern Performance

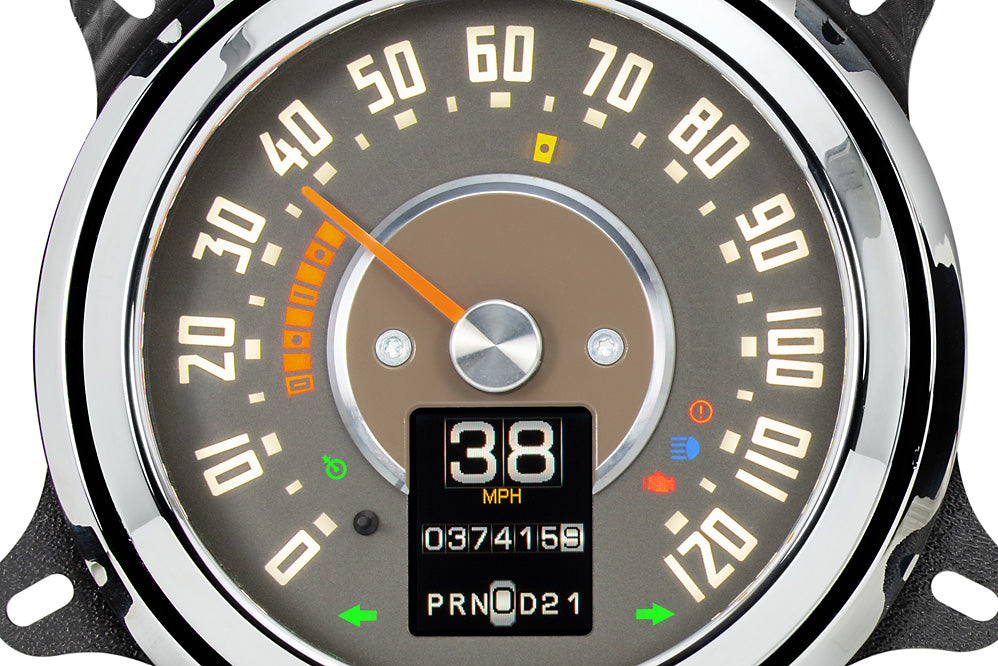

• OEM-Inspired Design: Retains the original layout with a 120 MPH speedometer and a bar-style tachometer integrated into the sweep.
• TFT Message Center: Discreetly provides real-time data without compromising the vintage styling.

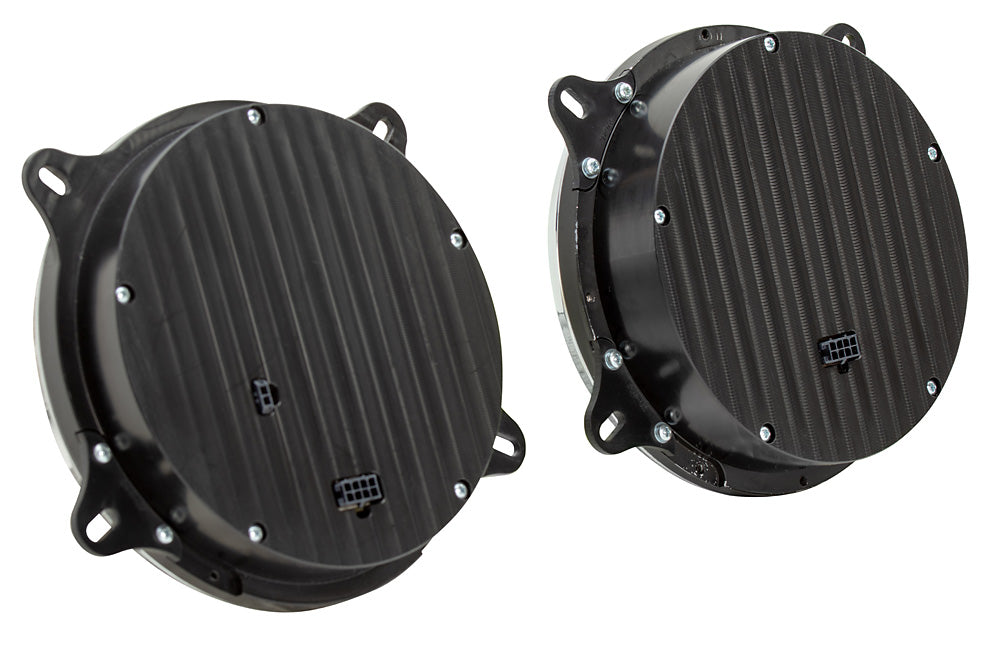

• CNC Machined Housings: Precision-built for durability, with Dakota Digital’s in-house electronics for ultimate reliability.
• Full LED Backlighting: Customize your display with over 30 user-selectable colors and adjustable brightness settings.

Comprehensive Gauge Set

Analog Gauges:

• Speedometer: 0-120 MPH (optional 0-200 km/h metric version available)
• Oil Pressure: 0-80 PSI
• Water Temperature: 100-260°F (optional 40-120°C metric version available)
• Fuel Level: E, 1/4, 1/2, 3/4, F
• Voltmeter: 9-17 VDC

Digital Bar Graph Gauge:

• Tachometer: 0-8,000 RPM

Advanced Digital Message Centers

Standard Displays:

• Odometer (one-time user-settable, million-mile capacity)
• Dual Trip Meters (0-9,999.9 miles)
• 12-Hour Clock
• Estimated Range / Miles to Empty

Performance Tracking:

• 0-60 MPH Timer (0-100 km/h)
• 1/4 and 1/8 Mile Time & End Speed
• High-Speed & High-RPM Recall

Built-in Indicators for Enhanced Monitoring

• Turn Signals (Left/Right)
• High Beam
• Check Engine
• Parking Brake
• Cruise Control (On/Engaged when equipped)
• Gear Position (Optional GSS-3000 sensor required)
• 4x4 Indicator (When equipped)
• Wait to Start (When equipped)
• Two Auxiliary Inputs (User-programmable labels)
• Red LED Warning Indicators on Analog Gauges (except speedometer)

Cutting-Edge Lighting Technology

• 30+ User-Selectable Color Combinations – Customize needle, sweep, and display colors.
• Brightness Control – Adjust day/night intensity via the setup menu or add the DIM-1 accessory for rotary dimming.
• Preloaded Themes – Choose from 12 factory presets or create your own custom color scheme.

Included Sensors for Seamless Integration

• Water Temperature Sensor: 1/8" NPT, ground-isolated, with a 10ft harness.
• Oil Pressure Sensor: 1/8" NPT solid-state sensor with a 10ft harness.
• Cable-Driven Speed Sensor/Generator: Replaces GM-style speedometer cables (Ford & Tremec adapters available on request).

Easy Calibration & Setup

• Pushbutton Control: A two-sided rocker switch provides quick access to system functions.
• Mobile App Integration: Use the Dakota Digital Bluetooth App (compatible with Android & Apple devices) for seamless calibration, customization, and real-time diagnostics.
• Simple Speedometer & Fuel Calibration: Quickly set up with a few taps and a test drive (GPS-50-2 available to eliminate speedometer calibration).

Installation Notes

• Direct Fit for Stock Dash Openings: Fully engineered to match the factory dimensions.
• Required Opening: 5.2”
• Overall Dimensions: 5.95”
• Depth: Mimics stock gauge cluster (typically 1.5”-2.5”)

Retain the classic look of your 1947-53 Chevy or GMC truck while upgrading to the performance and reliability of modern digital instrumentation with Dakota Digital RTX.
