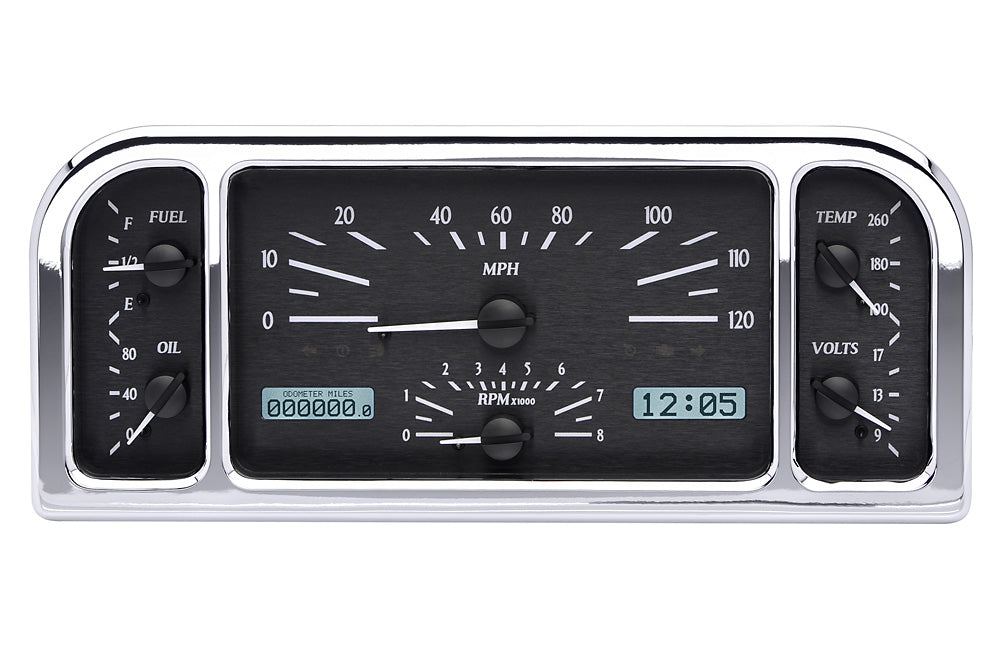

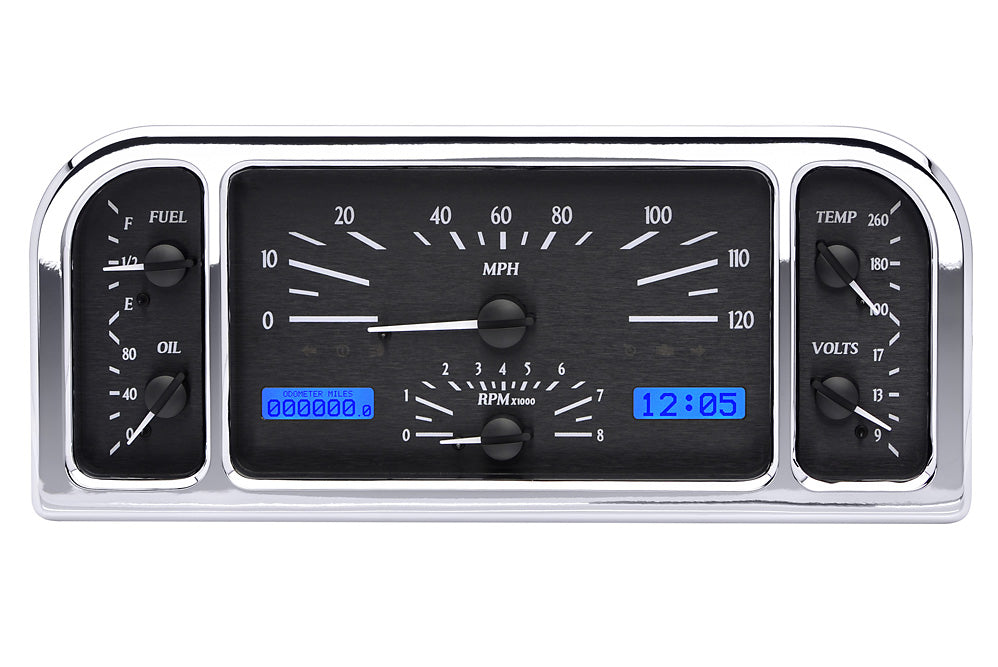

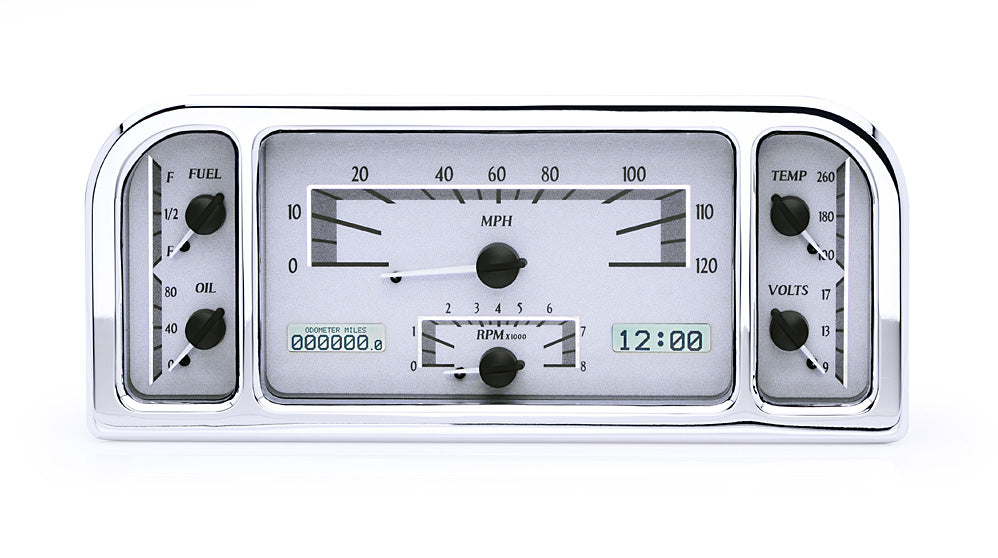

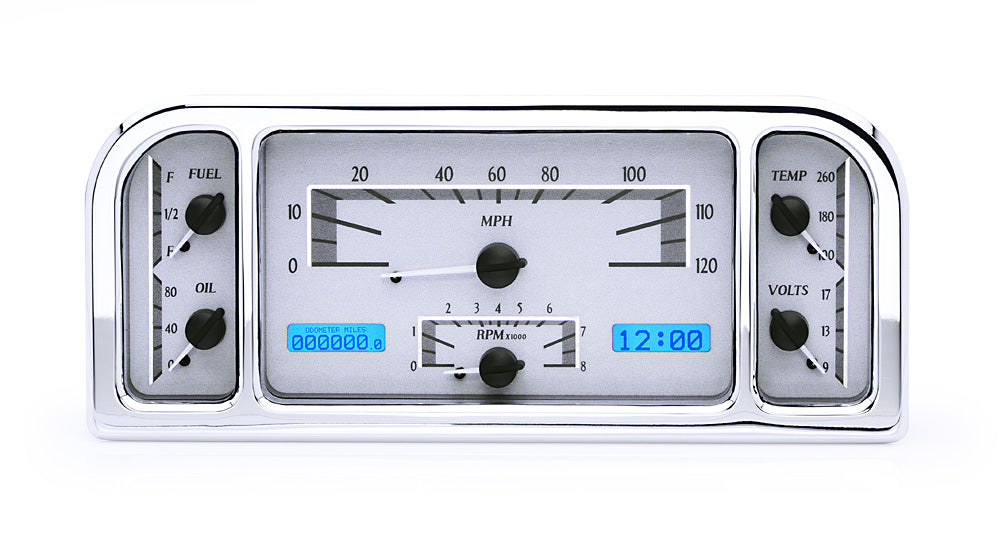

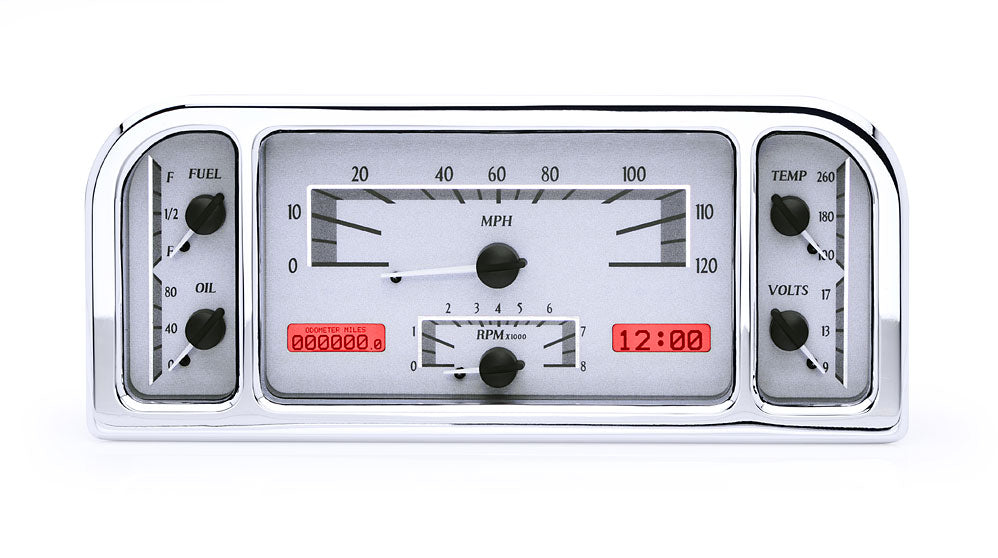

Update your rod with a fresh new instrument system boasting six gauge readings, with nearly unlimited expansion capabilities in the twin LCD message centers. Fully chromed bezel fits right into the stock dash opening in both 1937 and ’38 Ford cars, rocketing your dated street rod into the 21st Century! Black or silver Alloy faces can be had with red, blue or white LED backlighting.
Fully lit needles, backlit faces, and highly visible LCD message centers are a few of the things that you can see which set the VHX Series apart from yesterday’s traditional approach to instrumentation. A few of the features which you don’t normally see are the micro-controlled precision stepper motors, solid state sensors for unparalleled accuracy, and user-customizable display feedback, all supported by an unrivaled limited lifetime warranty which has become the standard for Dakota Digital instrumentation systems . Completely engineered and manufactured at our facility in Sioux Falls, South Dakota, the VHX Series has completely revolutionized the instrumentation industry!
Dimensions:
Overall: 11.00" W x 4.65" H
Analog Gauges
Speedometer
·0 -120 MPH (optional metric version 0- 195 kmh)
Tachometer
·0- 8,000 RPM
Oil Pressure
·0- 80 psi
Water Temperature
·100- 260ºF (optional metric version 40- 120ºC)
Fuel Level
·E, 1/4, 1/2, 3/4, F
Voltmeter
·9- 17 VDC
Lighting

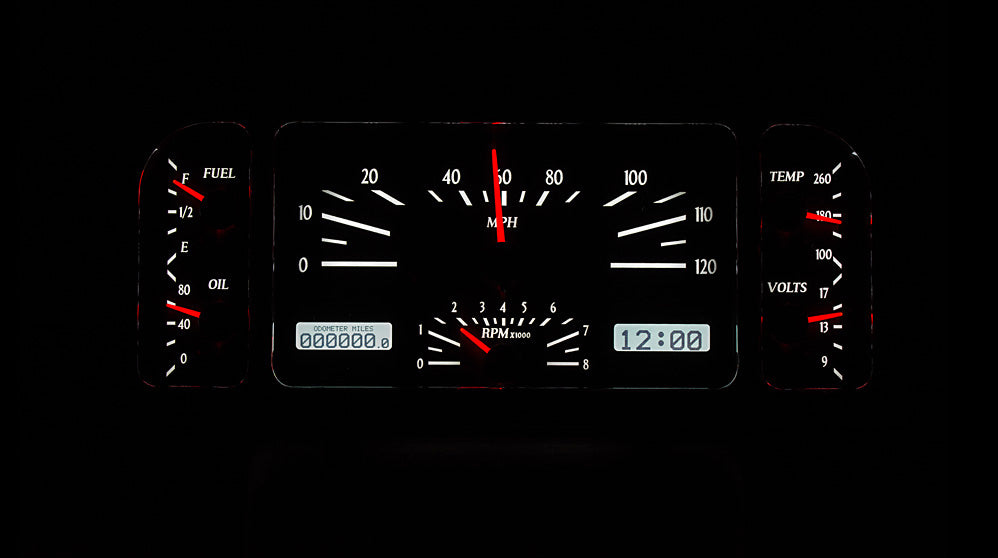

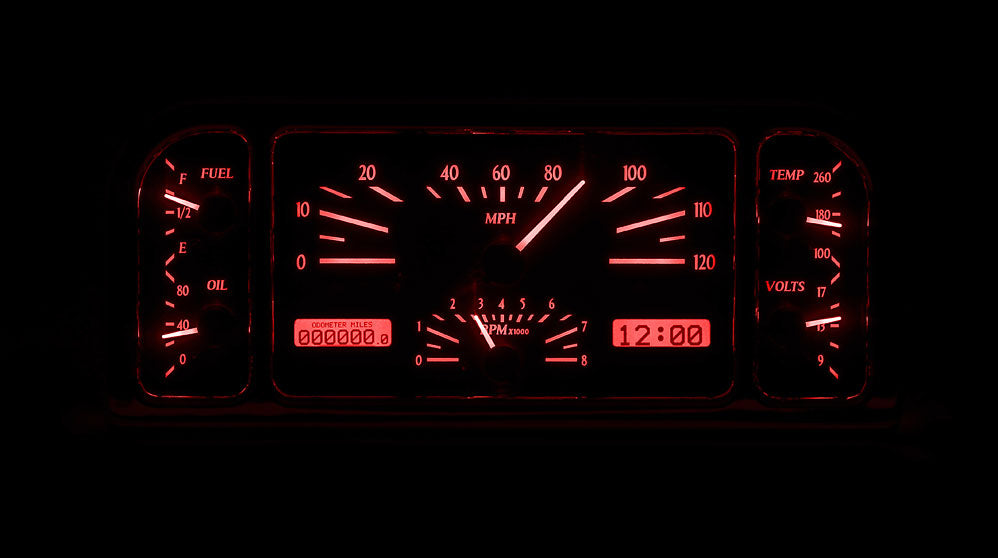

·Back lit technology is popular with performance instrumentation due to precise lighting allowing you see what is truly important when you really need it at a quick glance. Each number, tick mark, annunciator, needle, indicator and digital message center is lit by a series of LEDs behind the gauge face.
Digital Message Centers
Standard Displays
·Odometer (One time user settable, Million Mile)
·Dual (A/B) Trip Meter (0- 9,999.9)
·Clock (12 hour)
Performance Meters
·0- 60 MPH Timer (0- 100 kmh)
·1/4 mile time
·1/4 mile end speed (trap speed)
·High speed recall
·High RPM recall
Gauges
·Speedometer (0- 255 MPH/kmh)
·Tachometer (0- 9,900 RPM)
·Oil Pressure (0-100 psi displayed in 1 psi increments)
·Water Temperature (100- 300ºF/ 40- 150ºC displayed in 1 ºF/ºC increments)
·Voltmeter (9- 17 VDC)
·Fuel Level (0-99% full)
Lighting
·Auto-contrasting LCD display for optimal view in the brightest of sunlight.
·LED backlit at night to match/ complete the look at night.
Indicators
·Turn Signals (Left/ Right)
·High Beam
·Check Engine
·Parking Brake
·Cruise Control (On/ On & Engaged when vehicle is equipped)
·Gear Position (Optional GSS-3000 sensor required)
·4 x 4 (When vehicle is equipped)
·Wait to Start (When vehicle is equipped)
