Description

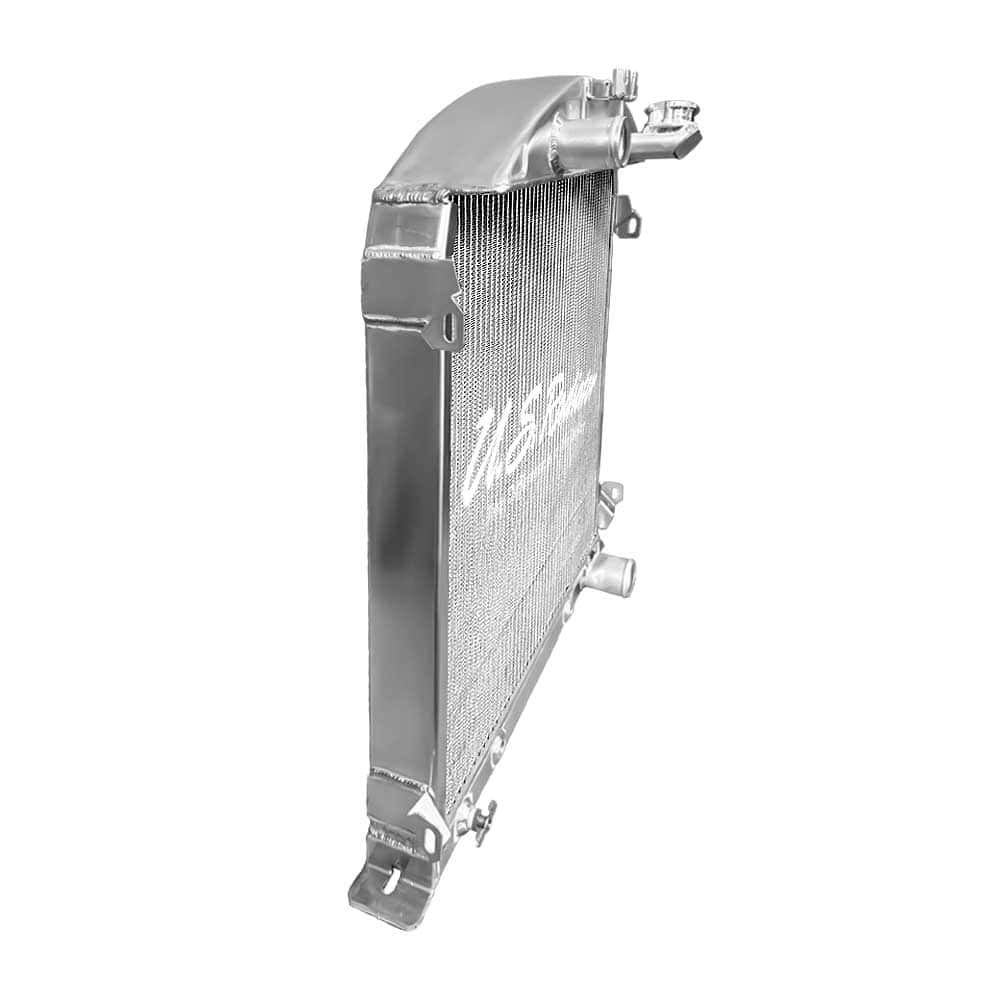

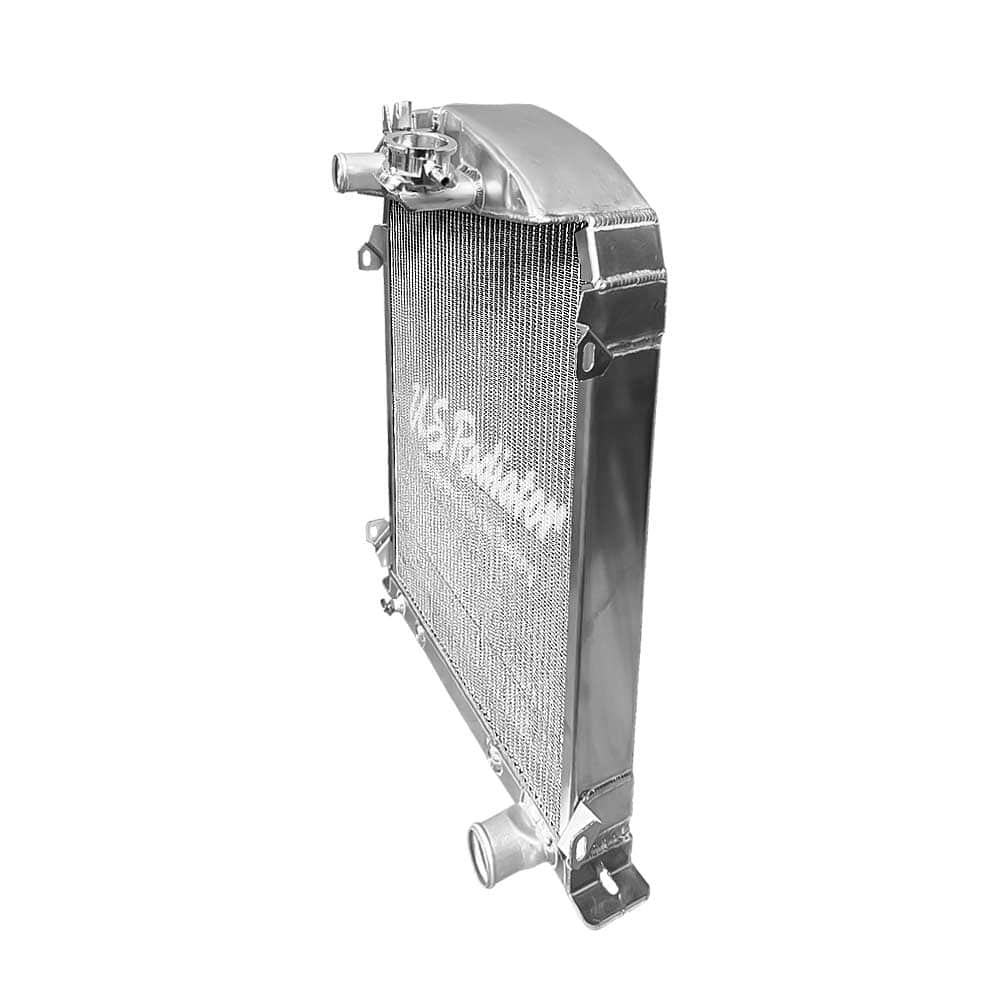

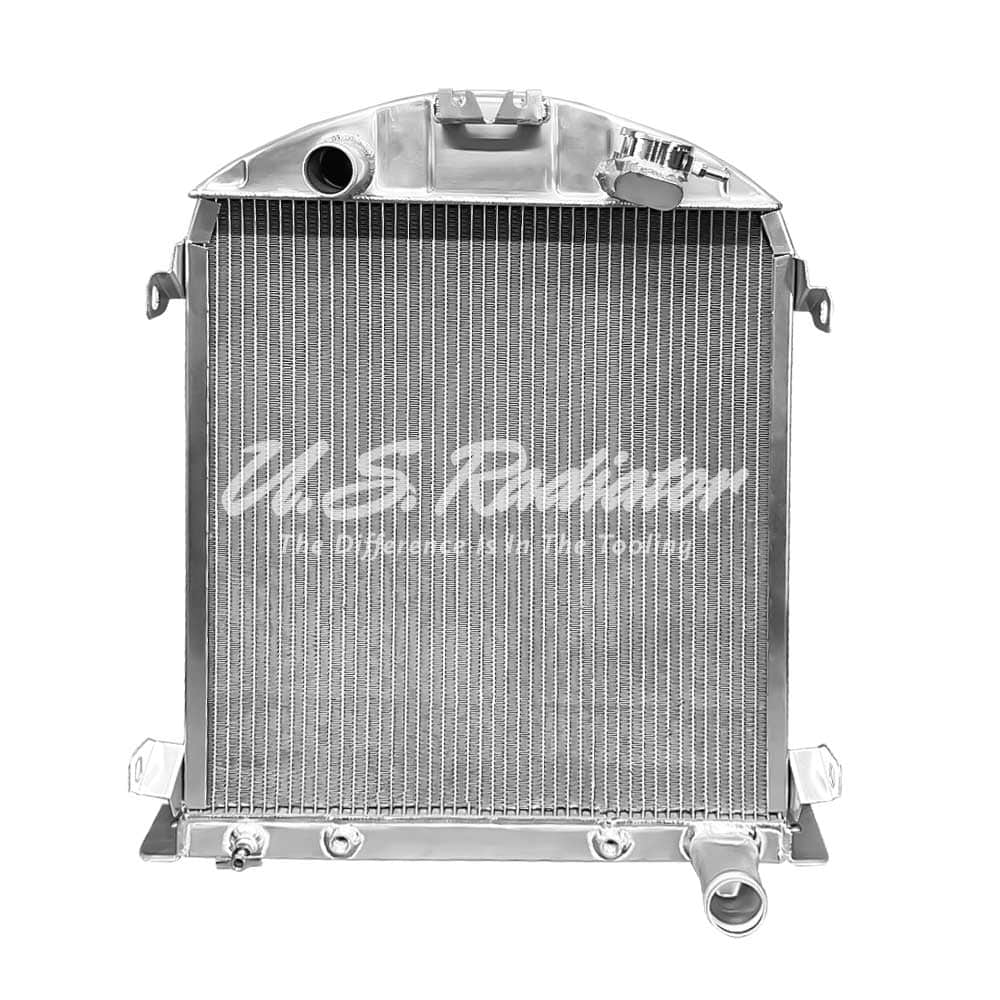

The U.S. Radiator Desert Cooler All-Aluminum Radiator for 1928–1929 Ford Model A is a premium cooling solution designed specifically for hot rods and restorations running a modern V8 engine (optimized for the Chevy 350). While it maintains the iconic "tall" Model A silhouette, it replaces the restrictive original brass core with a high-efficiency aluminum system capable of cooling high-horsepower builds.
Engineered for Performance and Style
U.S. Radiator sets itself apart by using die-stamped components rather than simple flat sheets. This ensures that the radiator tanks and brackets mirror the original equipment's look and fit, even with the move to lightweight aluminum.
2-Row 1" Tube Core: This high-efficiency design uses wide 1-inch tubes to maximize the surface area in contact with the airflow, providing superior heat transfer compared to 3- or 4-row copper units.
No Epoxy Construction: The unit is 100% furnace-brazed aluminum. This construction eliminates the risk of weld failures or leaks caused by the breakdown of epoxy seals over time.
Downflow Configuration: Maintains the traditional Ford Model A vertical coolant flow, fitting perfectly within original or reproduction radiator shells.
V8 Conversion Features
This specific model is tailored for the classic "Ford Body, Chevy Heart" hot rod configuration:
GM Hose Connections: Features a 1-1/2" inlet and 1-3/4" outlet positioned to accommodate standard GM/Chevrolet V8 hose routing.
Transmission Cooler: Available with a built-in internal transmission cooler (8 x 5/16 IF) for automatic applications (such as TH350 or 700R4).
Technical Specifications
Feature
Detail
Core Size
19-3/4" x 18-11/20" x 2-13/20"
Engine Application
Optimized for V8 350 Swaps
Material
100% Aluminum (Furnace Brazed)
Weight
40 lbs
Inlet / Outlet
1-1/2" (Top) / 1-3/4" (Bottom)
Construction
Die-Stamped Tanks for OE Look
Critical Maintenance
To ensure the longevity of the aluminum core and maintain the manufacturer's warranty, specific coolant guidelines must be followed:
50/50 Premix ONLY: Do not use tap water; use only distilled 50/50 premixed coolant.
No Nitrates: Ensure your antifreeze does not contain nitrates, as these can be corrosive to aluminum cooling systems.
