Key Takeaways
- Enhanced Performance: A 4-link suspension system significantly improves handling, traction, and stability in hot rods.
- Customizable Setup: Offers extensive adjustability options for dialing in the desired suspension geometry.
- Axle Articulation: Expertly manages axle articulation under various driving conditions, essential for high-performance vehicles.
- Compatibility: Adaptable to a wide range of hot rod styles and designs.
The 4-link suspension system is a cornerstone in the hot rod world, known for its unparalleled ability to enhance vehicle performance and handling. This comprehensive guide delves deeper into the technical nuances of 4-link suspension, offering enthusiasts a detailed understanding of its operation, benefits, and customization potential.

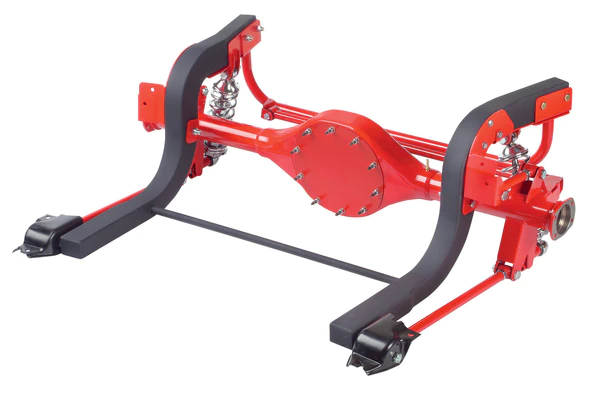

Technical Breakdown of 4-Link Suspension
The 4-link suspension system, at its core, is designed to manage the forces acting on a vehicle's rear axle during acceleration, braking, and cornering.
Detailed Components
- Upper and Lower Links: These arms are critical in maintaining the axle's fore and aft positioning. The upper links, often shorter, prevent axle rotation (torque reaction), while the longer lower links bear the vehicle's weight and control axle movement.
- Panhard Bar or Watts Linkage: These lateral control devices keep the axle centered under the car. The Panhard bar is a simple, single link, whereas the Watts linkage uses a pivot and two links for more precise control.
- Coilovers or Air Springs: These damping elements, attached to the links, are adjustable for ride height and stiffness, allowing for fine-tuning of the suspension's response to road conditions.
Functionality in Motion
- Acceleration: Upon acceleration, the lower links, positioned at an upward angle towards the front, transfer the thrust force from the axle to the car frame, enhancing forward motion.
- Braking: During braking, the system stabilizes the axle, preventing it from shifting forward or twisting, which could lead to loss of control.
- Cornering: The suspension geometry, maintained by the 4-link setup, ensures consistent tire contact and grip, essential for controlled cornering.
Advanced Benefits
- Precision Tuning: Enthusiasts can adjust the link lengths and angles to modify anti-squat properties, affecting how the car handles weight transfer during acceleration.
- Reduced Suspension Bind: The articulation of the 4-link system minimizes binding, a common issue in leaf spring setups, allowing for smoother suspension movement.
- Load Distribution: Efficiently distributes load across the chassis, enhancing overall vehicle balance and performance.
Technical Customization and Adjustments
- Link Adjustment: Modifying the length and angle of the links alters the car's roll center, affecting its handling characteristics.
- Spring Rate and Damping: Adjusting the coilover or air spring settings can change the ride quality, from soft and comfortable to firm and responsive, depending on the driving scenario.
Application in Hot Rods
The 4-link suspension's adaptability makes it ideal for a range of hot rods, from vintage models requiring delicate handling to modern machines demanding high-performance stability.
Product Spotlight
For enthusiasts seeking to upgrade their hot rods with a 4-link suspension, here are two exemplary brands:
- RideTech: A leader in suspension solutions, offering a variety of 4-link systems tailored for different hot rod models. Discover their range at RideTech Collection.
- Heidts Hot Rod Shop: Renowned for quality suspension components, Heidts provides diverse 4-link kits to fit various hot rod specifications. Explore their selection at Heidts Collection.
In summary, the 4-link suspension system is a technological marvel in the realm of hot rod performance. Its adaptability, combined with the ability to fine-tune various aspects, makes it an essential upgrade for any hot rod enthusiast seeking to enhance their vehicle's performance, handling, and overall driving experience. Whether cruising on city streets or powering down a drag strip, a well-tuned 4-link suspension system ensures your hot rod operates at peak efficiency.
