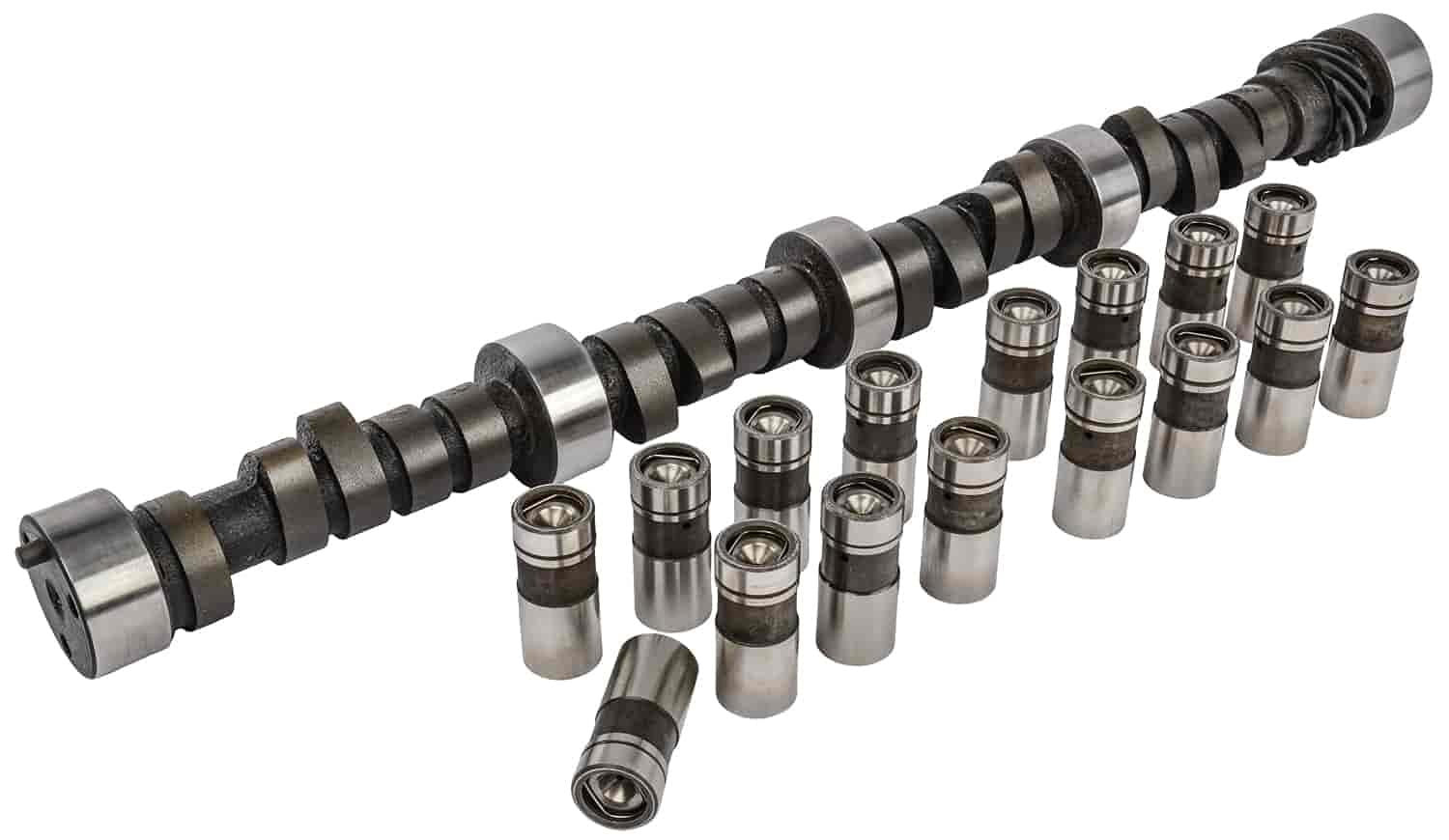

Hydraulic vs. Solid Lifters: How Engine Lifters Work and Which Cam to Choose

What Are Lifters in an Engine?

Lifters, also called valve lifters or tappets, are the components that sit between the camshaft lobes and the rest of the valvetrain. Every time a lobe rotates and pushes upward, the lifter transfers that motion up through the pushrod, rocker arm, and into the valve. Without lifters, the camshaft has no way to open the intake and exhaust valves.

The camshaft and lifters work as a matched system. The lobe profile determines how far and how fast the valve opens. The lifter determines how accurately that motion is transmitted. Choose the wrong lifter for a given cam, and you get noise, wear, or lost performance.

There are two main designs: hydraulic lifters and solid lifters. Both transfer the same motion but do it through different mechanisms, with different trade-offs for maintenance and performance.

How Hydraulic Lifters Work

A hydraulic lifter uses engine oil pressure to fill a small internal piston. As the cam lobe pushes up, oil pressure keeps the lifter extended and in contact with the pushrod. This eliminates valve lash, the small gap between the lifter and the valve stem that solid lifters require.

The self-adjusting nature of hydraulic lifters is the main reason street builds use them. There is no valve lash to set during the initial engine assembly, and no periodic adjustment as the engine wears. Oil viscosity and engine temperature do affect hydraulic lifter behavior, so running the correct oil weight matters more than most builders expect.

Hydraulic lifters also dampen valvetrain noise. The oil acts as a cushion, reducing the clicking and clattering common with solid setups. For a car that sees daily driving or extended highway use, that quiet operation is worth the trade-off in outright performance ceiling.

The downside: hydraulic lifters have a maximum lift and duration they can follow before pump-up occurs. At high RPM, oil pressure builds faster than the lifter can bleed down, causing the lifter to stay extended and float the valve. This limits how aggressive a cam profile you can run on a hydraulic setup.

How Solid Lifters Work

A solid lifter is exactly what the name suggests: a solid metal cylinder with no internal hydraulic mechanism. It contacts the cam lobe directly and transfers motion with no cushioning or self-adjustment. Valve lash must be set manually during the engine build, and checked at regular intervals afterward.

That manual adjustment is also the solid lifter's primary advantage. Because there is no oil-filled chamber to compress or expand, the valvetrain response is mechanical and precise. The cam lobe pushes the solid lifter, the lifter pushes the pushrod, and the valve opens exactly as the cam profile dictates. No lag, no pump-up at high RPM.

This allows builders to run much more aggressive camshaft profiles: more lift, longer duration, and tighter lobe separation angles than hydraulic setups can tolerate. Solid lifters are the choice for high-compression race engines, engines designed to rev past 6,500 RPM, and builds where maximum airflow matters more than street manners.

The trade-off is the maintenance requirement. A solid lifter engine needs the valve lash checked and adjusted on a set schedule. Skip it, and the engine gets noisy at best and suffers accelerated wear at worst. For a dedicated race car or show car that sees limited miles, that is a manageable task. For a daily driver, it is a recurring inconvenience.

Hydraulic vs. Solid Lifters: The Key Differences

Which Setup Works for Your Build

Engine family matters when choosing between hydraulic and solid lifter cams. Here is how the most common hot rod platforms break down.

Small Block Chevy (SBC)

The SBC is the most cam-swapped engine in hot rodding. Hydraulic roller cams are the standard for street SBC builds, offering good performance with no maintenance headaches. Builders chasing 500-plus horsepower on a budget racing SBC typically run a solid flat tappet cam. Solid rollers are reserved for serious race applications where cost is secondary to output.

Big Block Chevy (BBC)

Big block builds pulling duty on the street lean toward hydraulic roller setups. The extra displacement means you do not need an extreme cam to make power, and the hydraulic setup keeps the valvetrain manageable. For blown or nitrous BBC builds, solid roller is the direction most engine builders go.

LS Engines

Factory LS engines run hydraulic roller lifters from the factory, and the valvetrain architecture works well with aftermarket hydraulic roller cams up to significant lift and duration. Solid roller setups on LS engines are a dedicated race-only decision, requiring specific block preparation and far more maintenance than a hydraulic roller provides.

Frequently Asked Questions

Can I run a solid lifter cam on a stock oiling system?

Not reliably. Solid lifter cams increase valvetrain loads and heat. Most builds that go solid lifter also address oiling: high-volume oil pump, priority-main oiling, and upgraded lifter bores. Running aggressive solid lifter profiles on a stock oiling system accelerates wear on cam lobes and lifters.

Do solid lifters make more power than hydraulic lifters?

Solid lifters do not make more power on their own. They allow you to run more aggressive cam profiles, which can make more power. If you run the same cam profile with both lifter types, the hydraulic setup makes the same power below its RPM limit. The advantage shows up at high RPM and with aggressive cam profiles the hydraulic system cannot follow.

How often do solid lifters need adjustment?

Most engine builders recommend checking solid lifter lash every 500 to 1,000 miles during break-in, then every 2,000 to 5,000 miles in regular use. Race engines get checked before every event. The frequency depends on the cam specs and how hard the engine is driven.

What is the difference between a hydraulic roller and a hydraulic flat tappet cam?

Both use hydraulic lifters, but the lifter design differs. A hydraulic roller lifter uses a small wheel (roller) to contact the cam lobe, reducing friction and allowing higher lift rates. A hydraulic flat tappet uses a flat contact surface and requires more break-in care and specific break-in oil. Roller setups are standard on most modern hot rod builds.
