Dual Master Cylinder Brakes for Hot Rods: How They Work and When to Upgrade

What Is a Dual Master Cylinder?

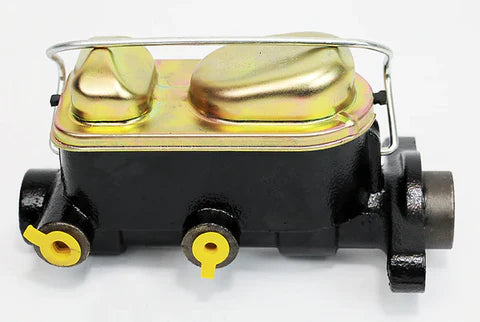

A dual master cylinder is a hydraulic pump that powers two separate brake circuits through a single bore housing. The housing contains two pistons in series, each pressurizing its own circuit independently. When the driver presses the brake pedal, both pistons move forward together. Each one pushes brake fluid through its own set of brake lines to its assigned wheels.

The dual design exists because a single-circuit failure in a single master cylinder system means complete loss of braking. A dual master cylinder limits any single failure to one circuit. If the front circuit loses pressure from a line failure, the rear brakes still function. The car stops, just with longer stopping distances.

Hot rods built before the late 1960s typically left the factory with single master cylinder systems. Any build that has been upgraded with more power, bigger brakes, or modified lines needs a dual master cylinder to match the braking system's safety requirements to its performance capability.

What Is a Tandem Master Cylinder?

A tandem master cylinder is another term for a dual master cylinder. The word "tandem" describes the two pistons operating in series within the same bore, one behind the other. The primary piston is connected directly to the brake pedal pushrod. The secondary piston sits further into the bore and is pressurized by the primary circuit's hydraulic pressure.

The primary and secondary pistons are held apart by a spring. Under normal operation, both pistons move forward together and pressurize their respective circuits simultaneously. If the primary circuit loses fluid, the primary piston travels further forward until it contacts the secondary piston mechanically, forcing the secondary circuit to pressurize through direct contact rather than hydraulic pressure.

This mechanical backup means the brakes respond even when one circuit has fully lost its fluid. The pedal travels further than normal and the stopping force is reduced, but the car does stop. That redundancy is why tandem master cylinders became a federal safety requirement on new cars in 1967.

Single vs. Dual Master Cylinder: What Changes in a Hot Rod Context

Older hot rods running their factory single master cylinder are operating with a brake system that was never designed for the power levels most builds run today. A stock 1940 Ford with a flathead V8 stops adequately with a single circuit. That same car with a built SBC and four-wheel disc brakes needs a system that matches.

The dual master cylinder is not just a safety upgrade. It also allows for front-to-rear brake bias adjustment. A single-circuit system provides whatever brake force the proportioning hardware delivers across all four corners. A dual-circuit system with an adjustable proportioning valve lets the builder set the front-to-rear split for the specific weight distribution of the build.

For a hot rod with more weight over the rear than factory, more front brake bias prevents nose dive under hard braking. For a drag car that transfers weight to the rear on the launch, less front bias and more rear keeps the front from locking. A dual master cylinder makes these adjustments possible.

Front and Rear Circuit Split vs. Diagonal Split

The most common dual master cylinder configuration on hot rods splits the circuits front and rear. The primary circuit powers both front calipers. The secondary circuit powers both rear drum or disc brakes. This is the standard layout for most street rod and hot rod brake conversion kits.

Modern OEM vehicles often use a diagonal split configuration instead. One circuit powers the left front and right rear. The other powers the right front and left rear. If one circuit fails, the car retains braking on one front wheel and the opposite rear wheel, which provides more balanced stopping force than losing the entire front end.

For hot rod applications, the front-rear split is the practical choice. It is compatible with standard proportioning valves, easier to bleed, and works with the complete brake conversion kits from companies like Master Power Brakes that hot rod builders use most commonly. The diagonal split configuration requires a different brake line routing that most hot rod chassis are not laid out for.

Upgrading a Hot Rod From Single to Dual Master Cylinder

A single-to-dual master cylinder conversion requires more than swapping the master cylinder. The existing single-circuit brake lines must be separated into two circuits, which typically means new stainless or hard lines routed to a proportioning valve and distribution block before going to each axle.

The brake pedal and booster must be compatible with the dual master cylinder bore size and pushrod length. Most hot rod builders install a firewall-mounted bracket that accepts a remote brake booster and a dual master cylinder together, which keeps the upgrade clean and allows for proper pushrod geometry.

Brake system bleeding after a single-to-dual conversion starts at the circuit farthest from the master cylinder and works forward. Air in the system after a conversion is common if the bleeding sequence is not followed. A pressure bleeder speeds the process and reduces the risk of air re-entering the system.

Frequently Asked Questions

Does a dual master cylinder require a power brake booster?

No. A dual master cylinder works with or without a power brake booster. Manual drum brake setups on lighter hot rods function well with a dual master cylinder and no booster. Four-wheel disc brake systems on heavier builds benefit from a vacuum booster or a Hydro-Boost unit to reduce the pedal effort required to achieve full system pressure.

What size bore dual master cylinder should I use?

Bore size affects pedal feel and system pressure. A smaller bore (15/16 inch) generates higher pressure per unit of pedal travel, which gives a firmer pedal but requires more pedal force. A larger bore (1-1/8 inch) requires less force but moves the pedal further before pressure builds. Most hot rod brake conversion kits specify the correct bore size for the brake caliper pistons being used. Match the master cylinder to the caliper specification rather than guessing.

Can I run a dual master cylinder with drum brakes?

Yes. A front-and-rear split dual master cylinder works with drum brakes on any or all corners. Many traditional hot rods run drum brakes on the rear for appearance reasons. The dual master cylinder provides the same circuit redundancy regardless of whether the brakes are drum or disc at each corner.

What is the correct front-to-rear brake bias for a hot rod?

Most street-driven hot rods run a 60-to-70 percent front bias as a starting point. The correct split depends on the weight distribution of the specific build. A car with significant rear weight bias from a large engine setback or a heavy fuel cell needs more rear bias than a traditional layout. Adjust the proportioning valve until the rear brakes just begin to engage after the fronts under hard stops.
